Wheel Drive Shafts Disassembled Views (Rear)

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

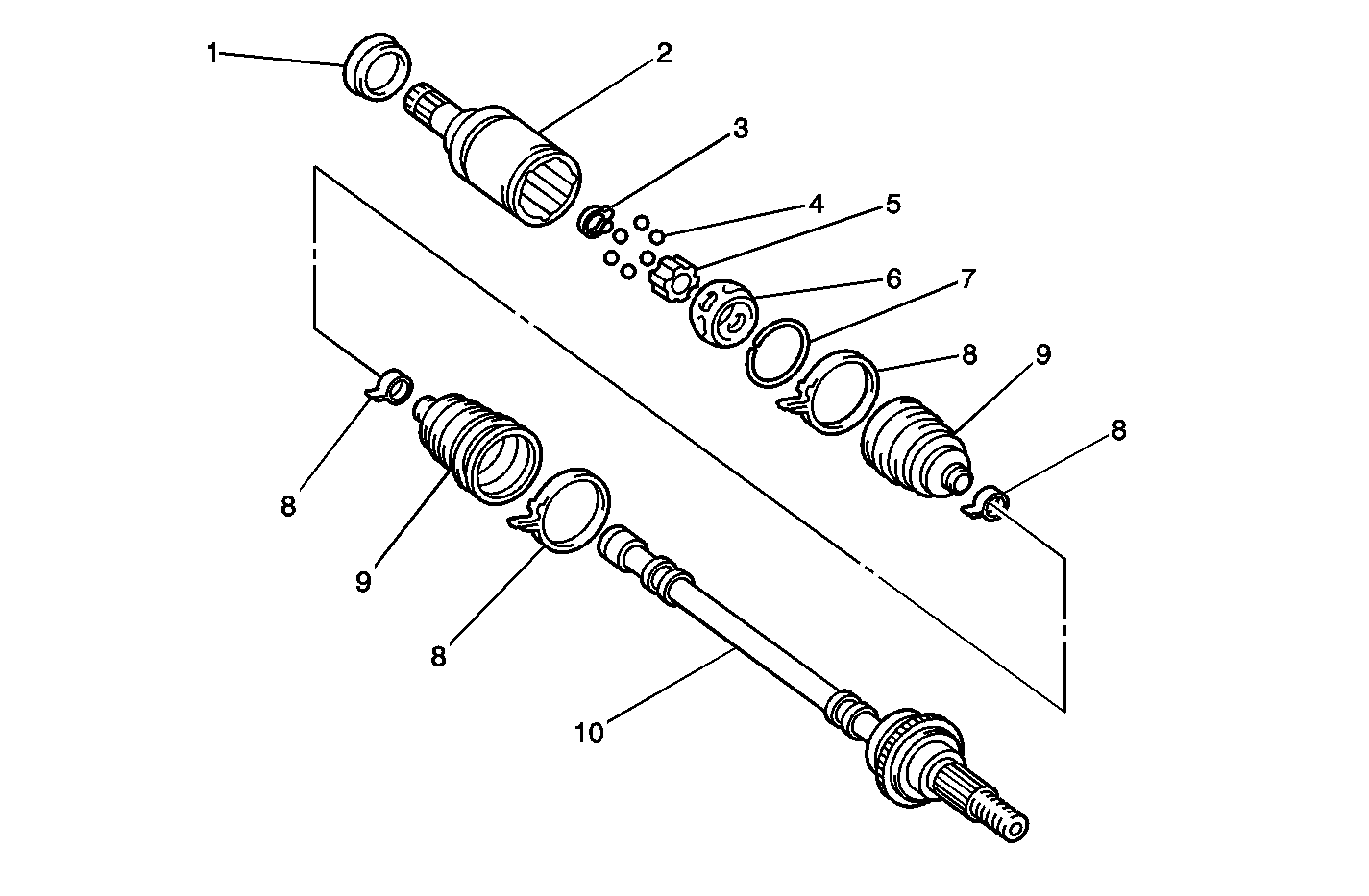

Fig 1: Wheel Drive Shaft Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dust Cover
2	Inboard Joint Shaft
3	Snap Ring
4	Ball Bearing
5	Inner Race
6	Cage
7	Snap Ring
8	Boot Clamp
9	Boot
10	Outboard Joint Shaft
