Wheel Drive Shafts Disassembled Views (Front)
WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

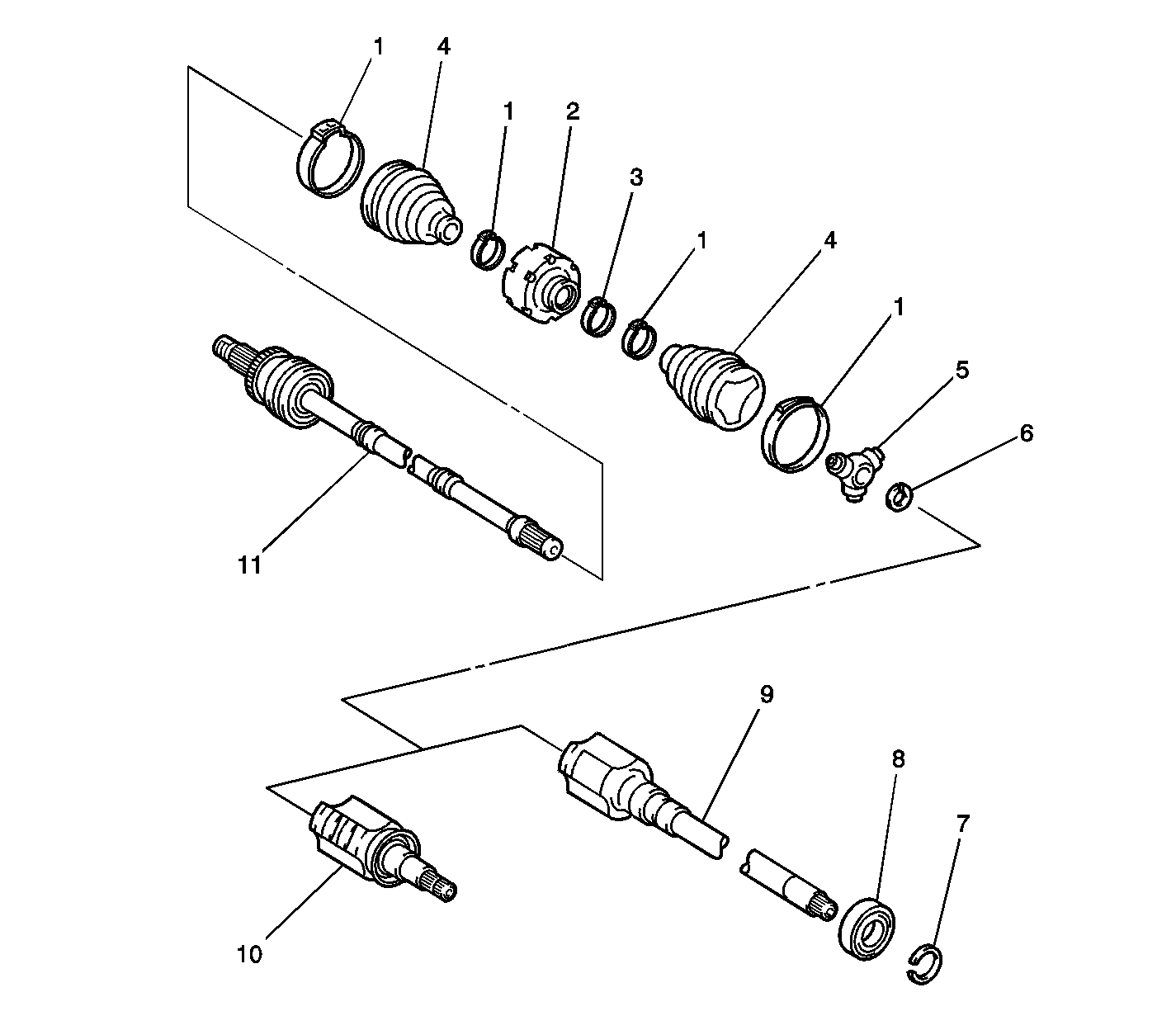

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Boot Clamp |
| 2 |
Dynamic Damper |
| 3 |
Boot Clamp |
| 4 |
Boot |
| 5 |
Tripod |
| 6 |
Snap Ring |
| 7 |
Snap Ring |
| 8 |
Bearing |
| 9 |
RH Inboard Joint Shaft |
| 10 |
LH Inboard Joint Shaft |
| 11 |
Outboard Joint Shaft |

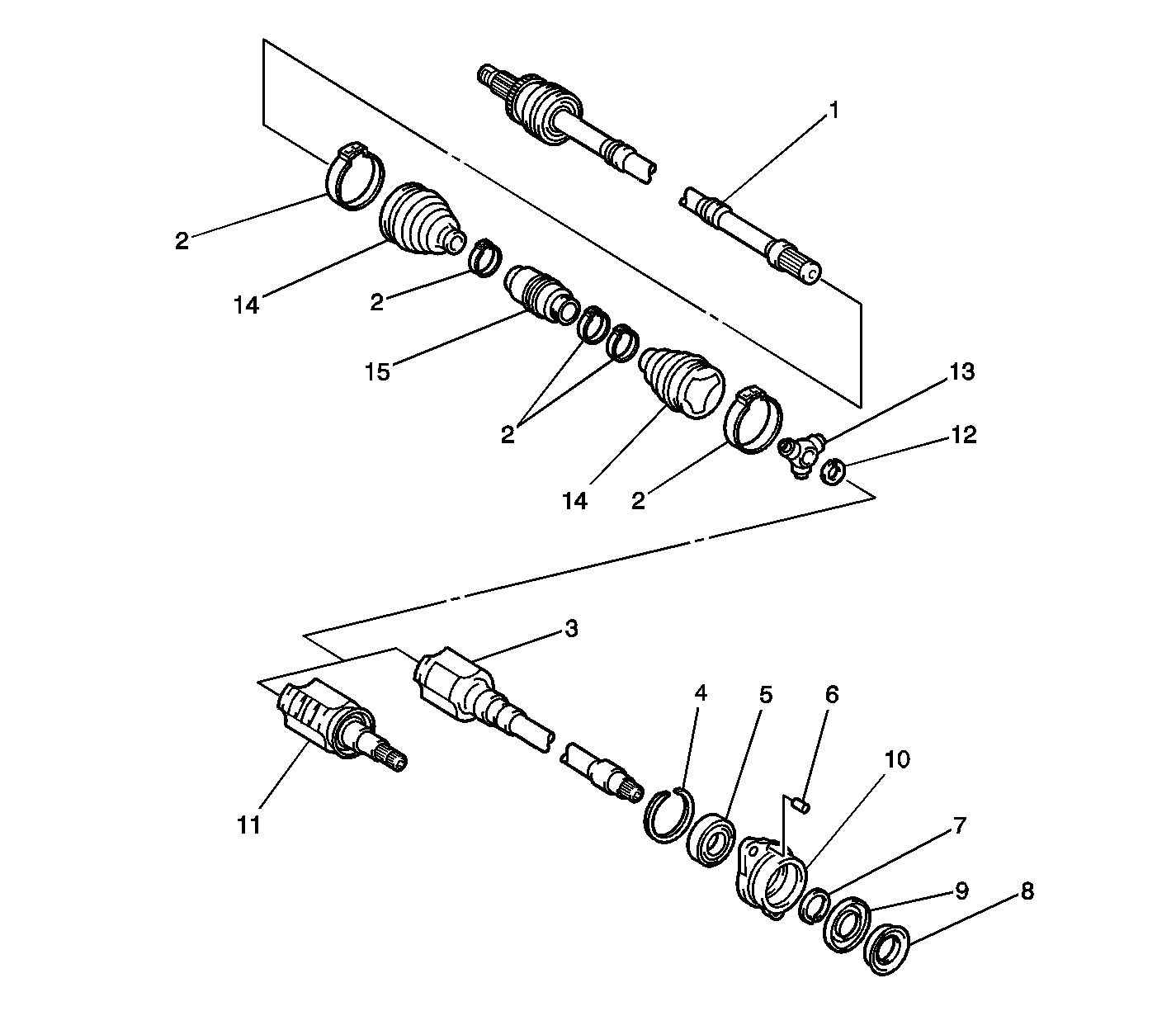

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Outboard Joint Shaft |
| 2 |
Boot Clamp |
| 3 |
RH Inboard Shaft |
| 4 |
Large Snap Ring |
| 5 |
Bearing |
| 6 |
Straight Pin |
| 7 |
Small Snap Ring |
| 8 |
Dust Cover |
| 9 |
Drive Shaft Dust Cover |
| 10 |
Bearing Case |
| 11 |
LH Inboard Shaft |
| 12 |
Snap Ring |
| 13 |
Tripod |
| 14 |
Boot |
| 15 |
Dynamic Damper |
