Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear knuckle. Refer to Knuckle Replacement (AWD) .

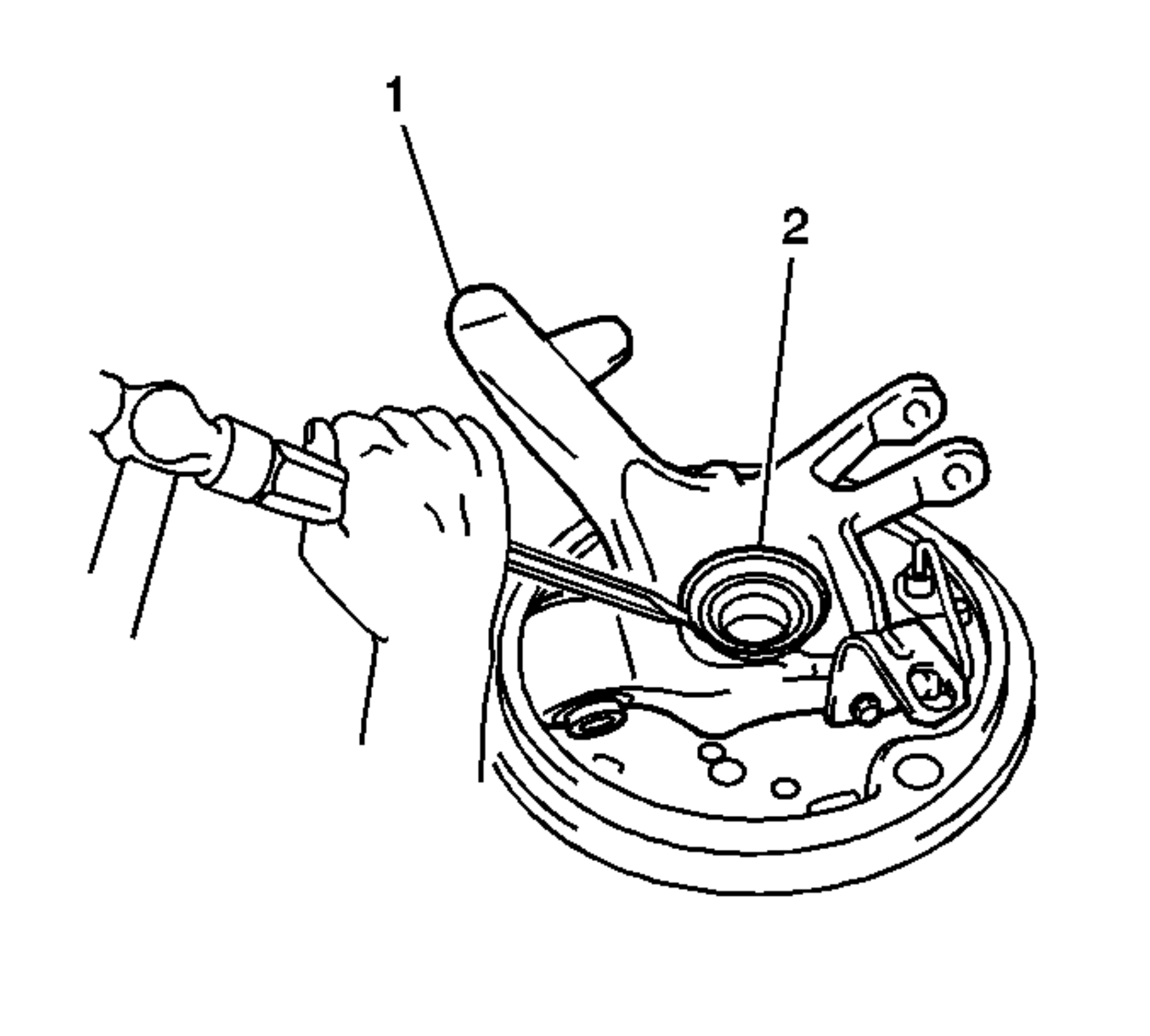

Fig 1: Removing Dust Deflector (AWD)

Courtesy of GENERAL MOTORS CORP.

Remove the dust deflector (2).

Fig 2: Wheel Bearing, Hub Assembly And Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the 4 bolts (2,3,4,5).
Remove the wheel bearing and hub assembly.
