Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

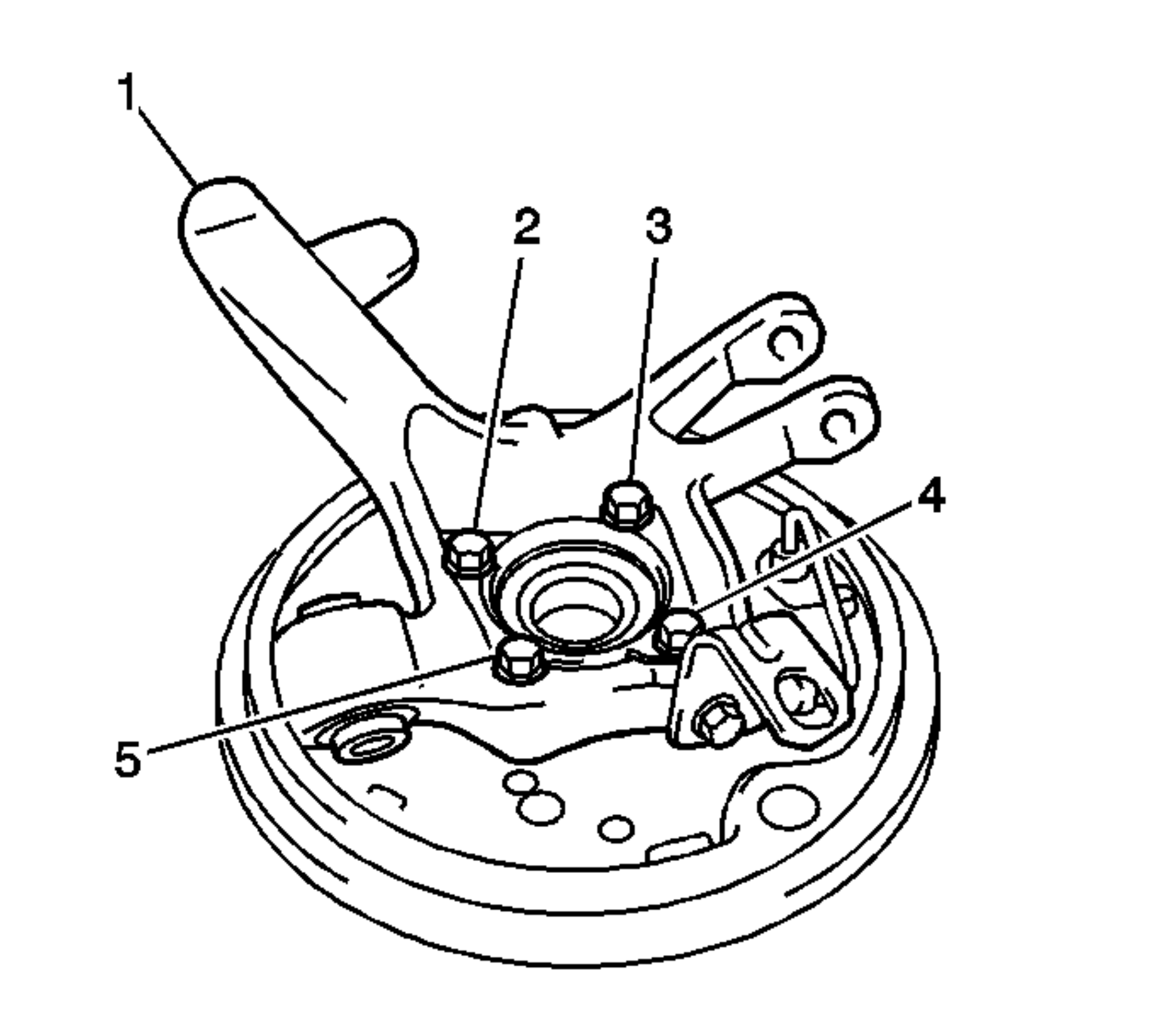

Fig 1: Wheel Bearing, Hub Assembly And Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the wheel bearing and hub assembly and the 4 bolts (2,3,4,5).
Tighten: Tighten the bolts to 56 N.m (41.3 lb ft).
Use a hydraulic press in order to install a NEW dust deflector.
Install the rear knuckle. Refer to Knuckle Replacement (AWD) .
