Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

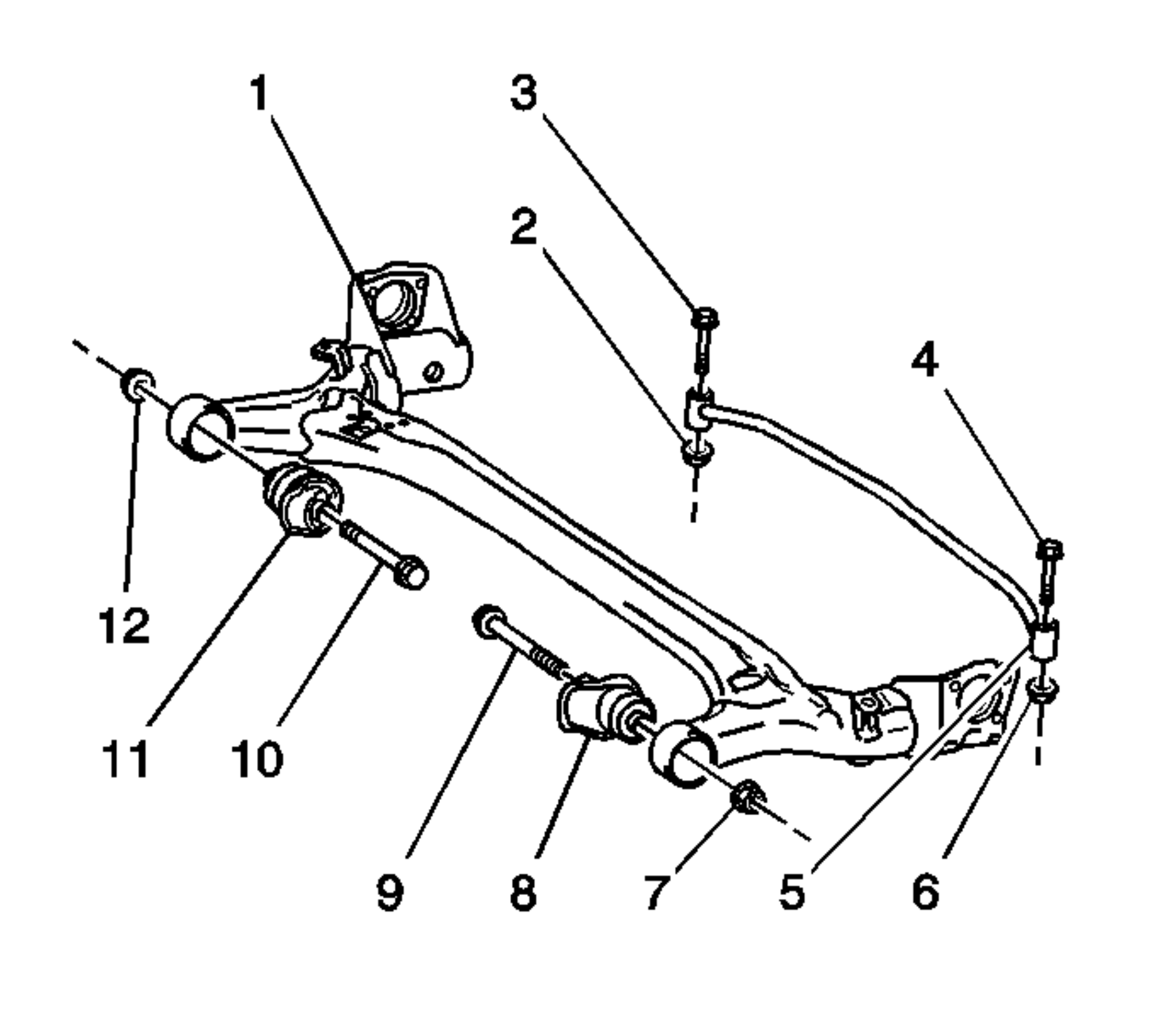

    Fig 1: Stabilizer Shaft, Nuts And Bolts (FWD)
    GM829876Courtesy of GENERAL MOTORS CORP.
  1. Remove the 2 nuts (2,6).
  2. Remove the 2 bolts (3,4).
  3. Remove the stabilizer shaft (5).
