Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear drive module. Refer to Crossmember Replacement (AWD) .

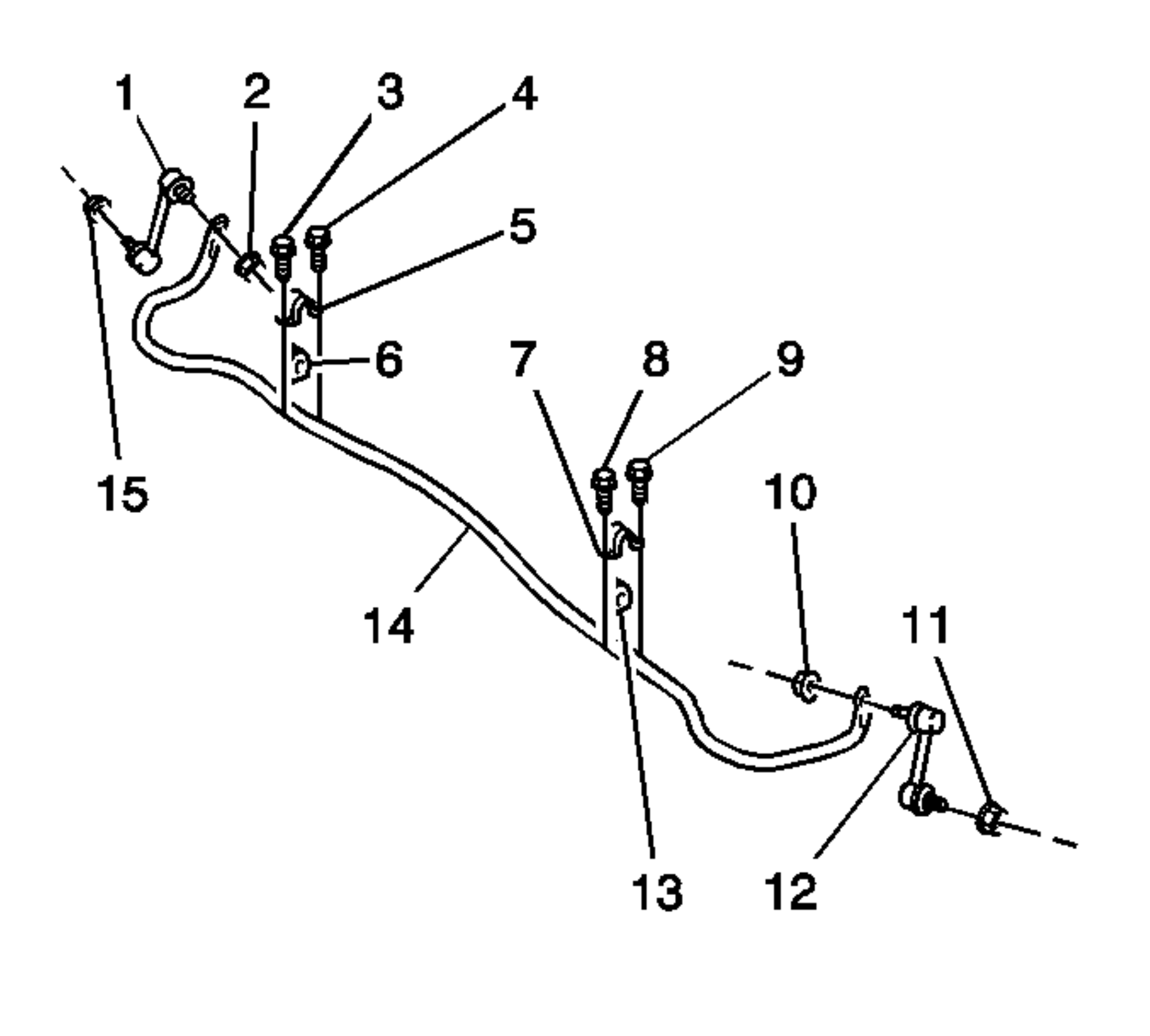

    2. Fig 1: Shaft Insulators, Stabilizer Shaft, Brackets, Nuts And Bolts (AWD)
    GM829947Courtesy of GENERAL MOTORS CORP.
  2. Use paint in order to place match marks on the stabilizer shaft insulators (6,13) and on the stabilizer shaft (14).
  3. Remove the 4 bolts (3,4,8,9).
  4. Remove the 2 stabilizer shaft insulator brackets (5,7).
  5. Remove the 2 stabilizer shaft insulators (6,13).
  6. Remove the 2 nuts (2,10) from the link studs.
  7. Remove the stabilizer shaft from the rear suspension crossmember.
