Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear compartment trim panel. Refer to Trim Panel Replacement - Rear Compartment Front Side in Interior Trim.
  2. Remove the rear accessory panel. Refer to Accessory Panel Replacement - Rear in Interior Trim.
  3. Remove the rear storage compartment. Refer to Storage Compartment Replacement - Rear in Interior Trim.
  4. Remove the tool storage compartment. Refer to Tool Storage Compartment Replacement in Interior Trim.

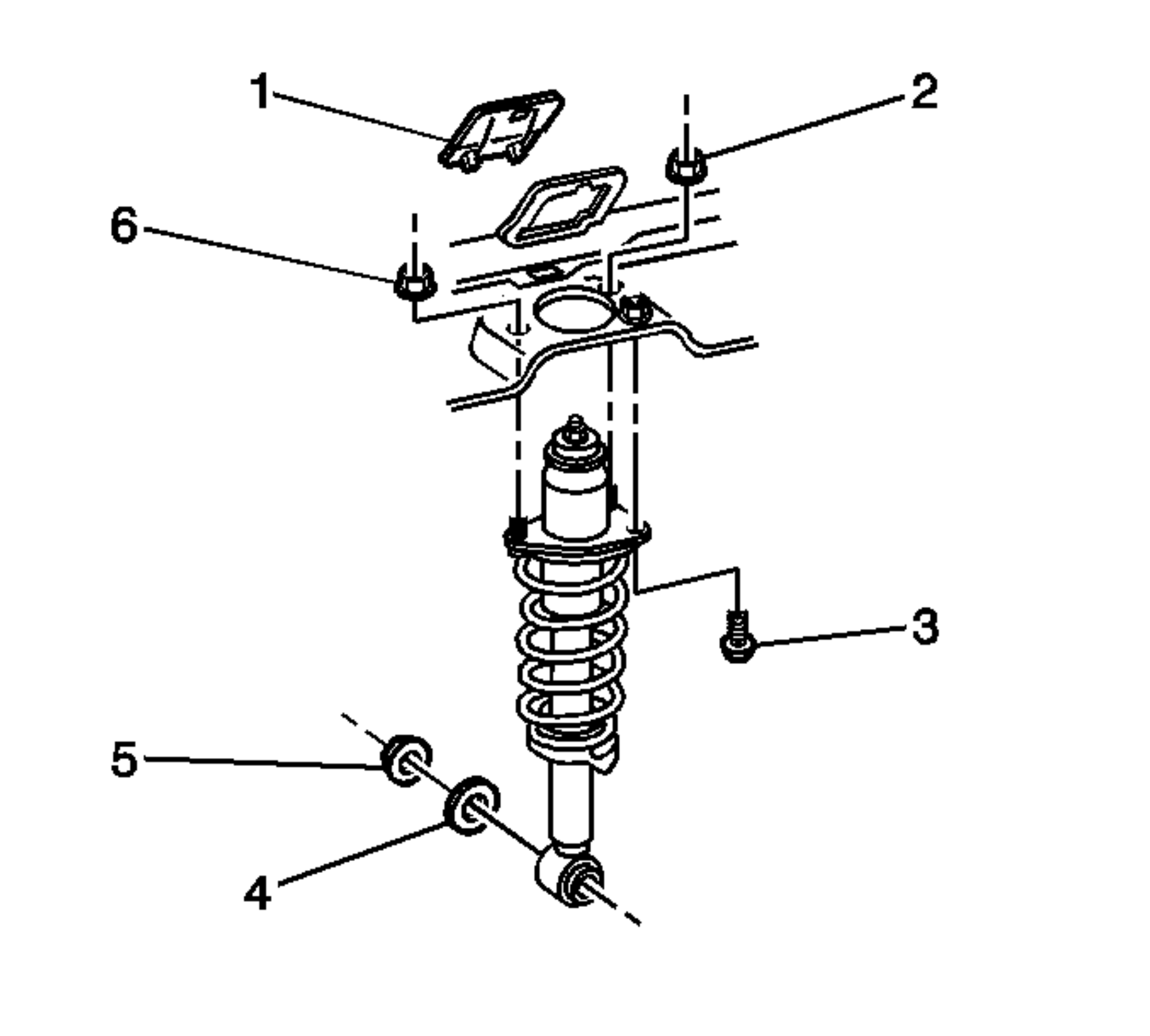

    5. Fig 1: Access Panel, Nut, Washers And Nuts (FWD)
    GM829761Courtesy of GENERAL MOTORS CORP.
  5. Remove the shock absorber fastener access panel (1).
  6. Remove the 2 nuts (2,6).
  7. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  8. Use a block of wood and a jack in order to support the rear axle.
  9. Remove the bolt (3).
  10. Remove the nut (5) and the washer (4).
  11. Remove the shock absorber with the coil spring.
  12. Remove the coil spring, if necessary. Refer to Coil Spring Replacement (FWD)  or Coil Spring Replacement (AWD) .
