Suspension Strut Disposal

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use the proper eye protection when drilling to prevent metal chips from causing physical injury.

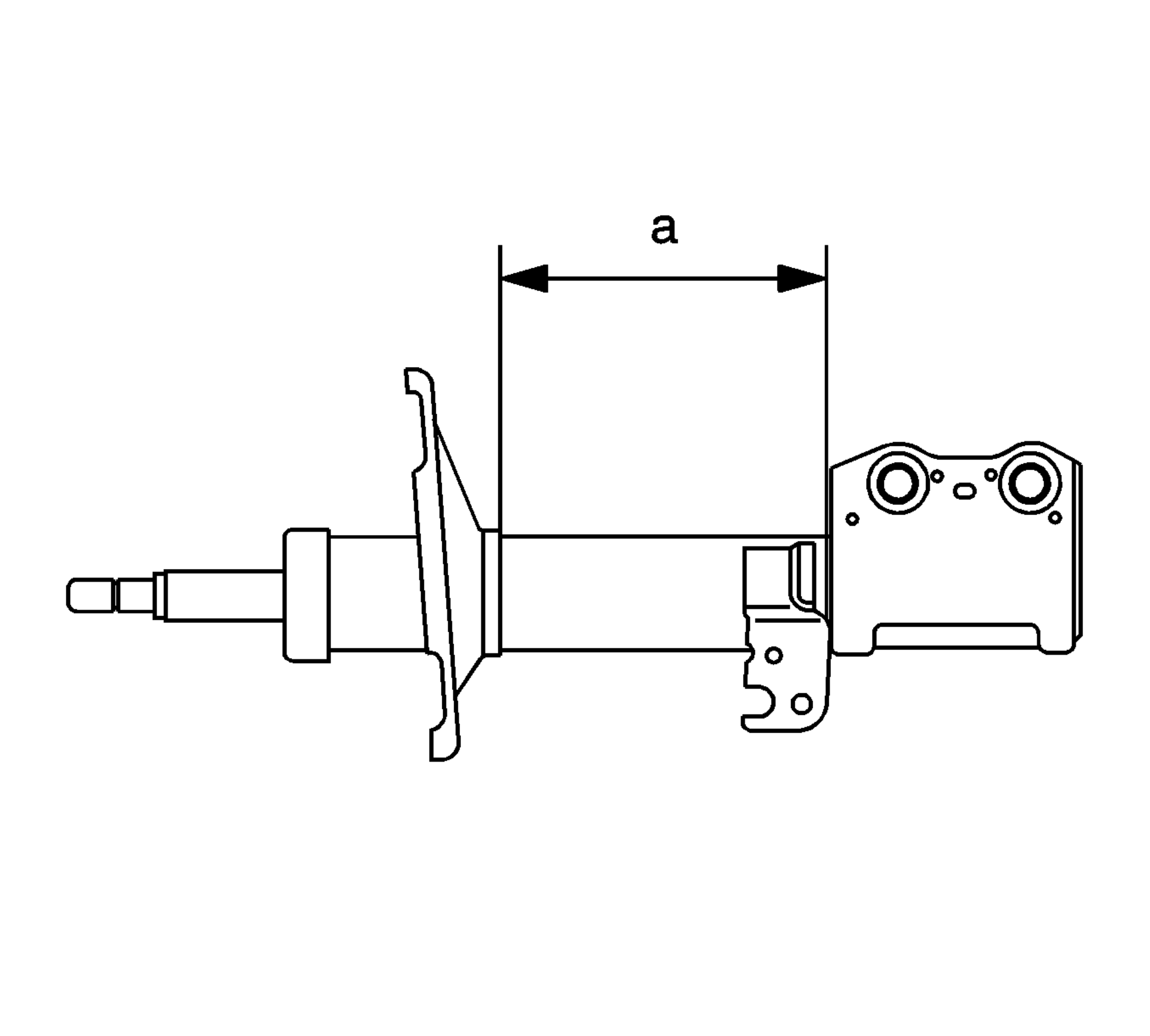

    Fig 1: Middle Of Strut Rod
    GM1464393Courtesy of GENERAL MOTORS CORP.
  1. Clamp the strut in a vise horizontally with the strut rod completely extended.
  2. Make an indentation in the middle of the tube (a) with a centerpunch.
  3. Drill a hole in the strut at the centerpunch using a 5 mm (3/16 in) drill bit. Gas and/or oil will escape when the drill bit penetrates the strut. Use shop towels in order to contain the escaping oil.
  4. Remove the strut from the vise. Hold the strut over a drain pan horizontally with the hole down. Move the rod in and out of the tube to completely drain the oil from the strut.
