Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following components as an assembly. Refer to Crossmember Replacement - Front Suspension (FWD)  or Crossmember Replacement - Front Suspension (AWD) .
    • The front suspension crossmember
    • The trans support
    • The front control arms
    • The stabilizer shaft
    • The stabilizer shaft links
    • The stabilizer shaft clamps
    • The stabilizer shaft insulators

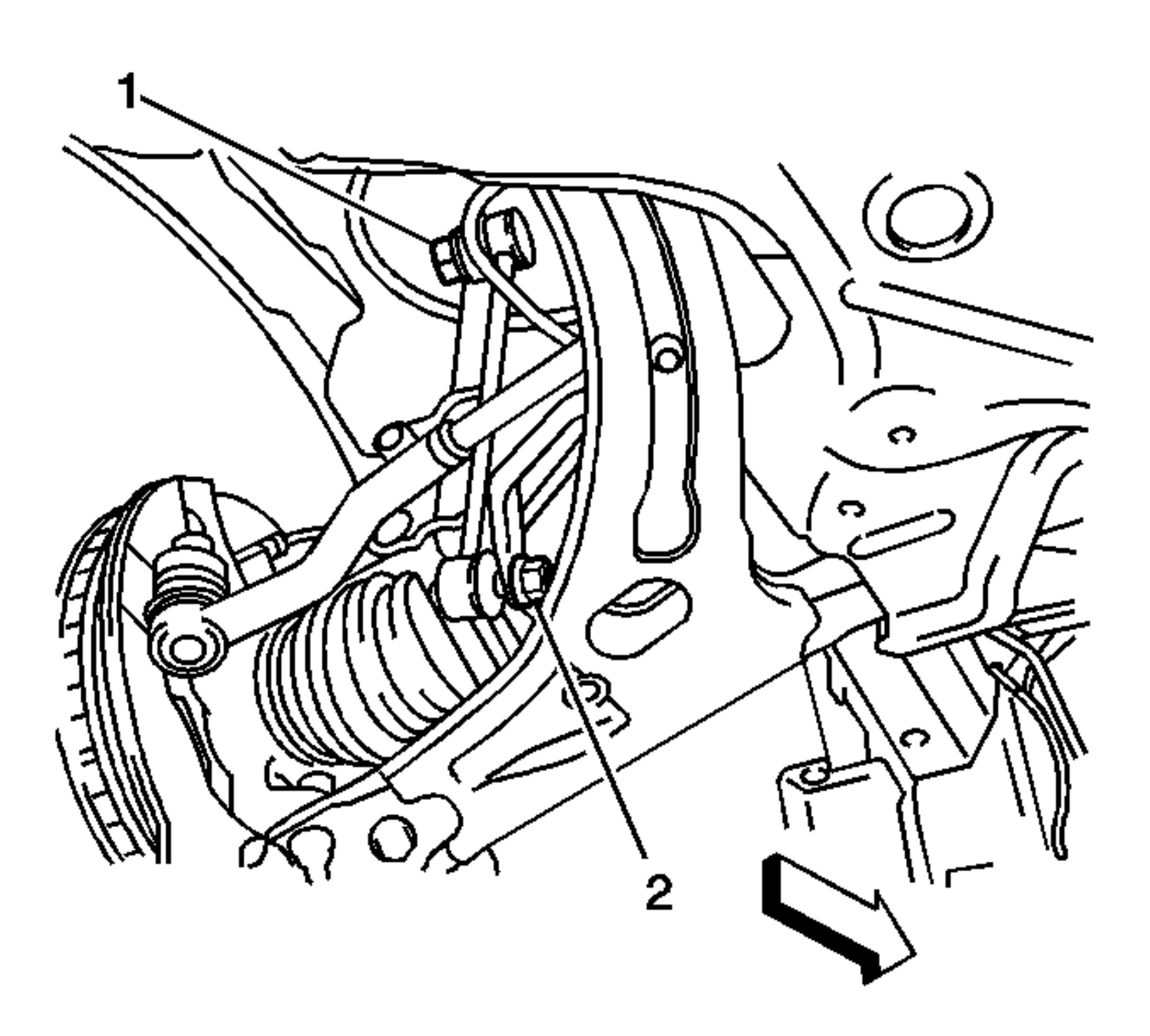

    2. Fig 1: Stabilizer Shaft Link Bolts (FWD)
    GM828029Courtesy of GENERAL MOTORS CORP.
  2. Remove the 2 nuts (2) and the 2 stabilizer shaft links from the stabilizer shaft.
  3. Remove the 4 bolts from the stabilizer shaft clamps.
  4. Remove the 2 stabilizer shaft clamps.
  5. Remove the 2 stabilizer shaft insulators.
  6. Remove the stabilizer shaft from the crossmember.
