Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front suspension crossmember. Refer to Crossmember Replacement - Front Suspension (FWD)  or Crossmember Replacement - Front Suspension (AWD) .

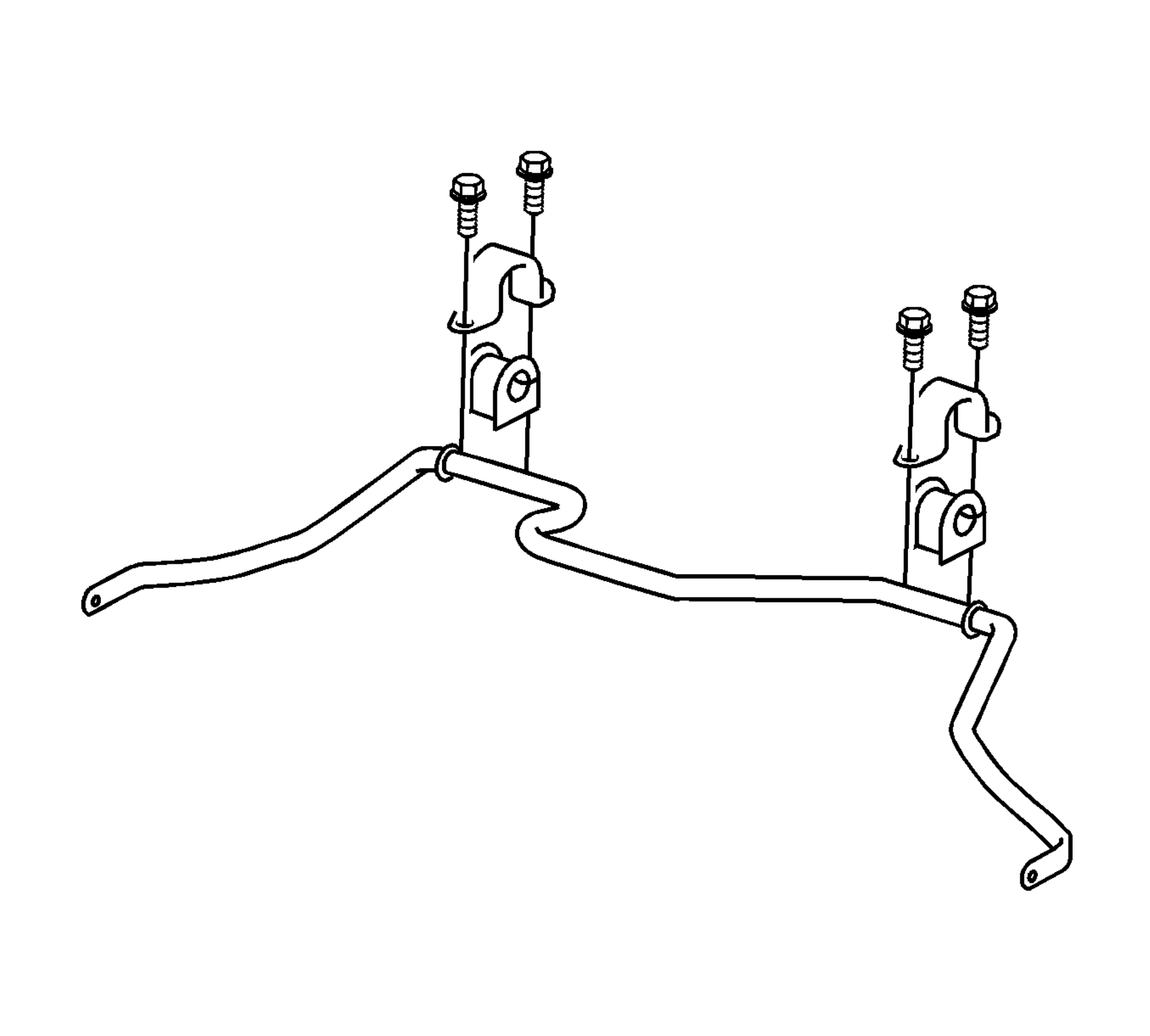

    2. Fig 1: Stabilizer Shaft Clamps, Bolts And Shaft Insulators (AWD)
    GM1464392Courtesy of GENERAL MOTORS CORP.
  2. Remove the 4 bolts and the 2 stabilizer shaft clamps.
  3. Remove the 2 stabilizer shaft insulators.
