Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

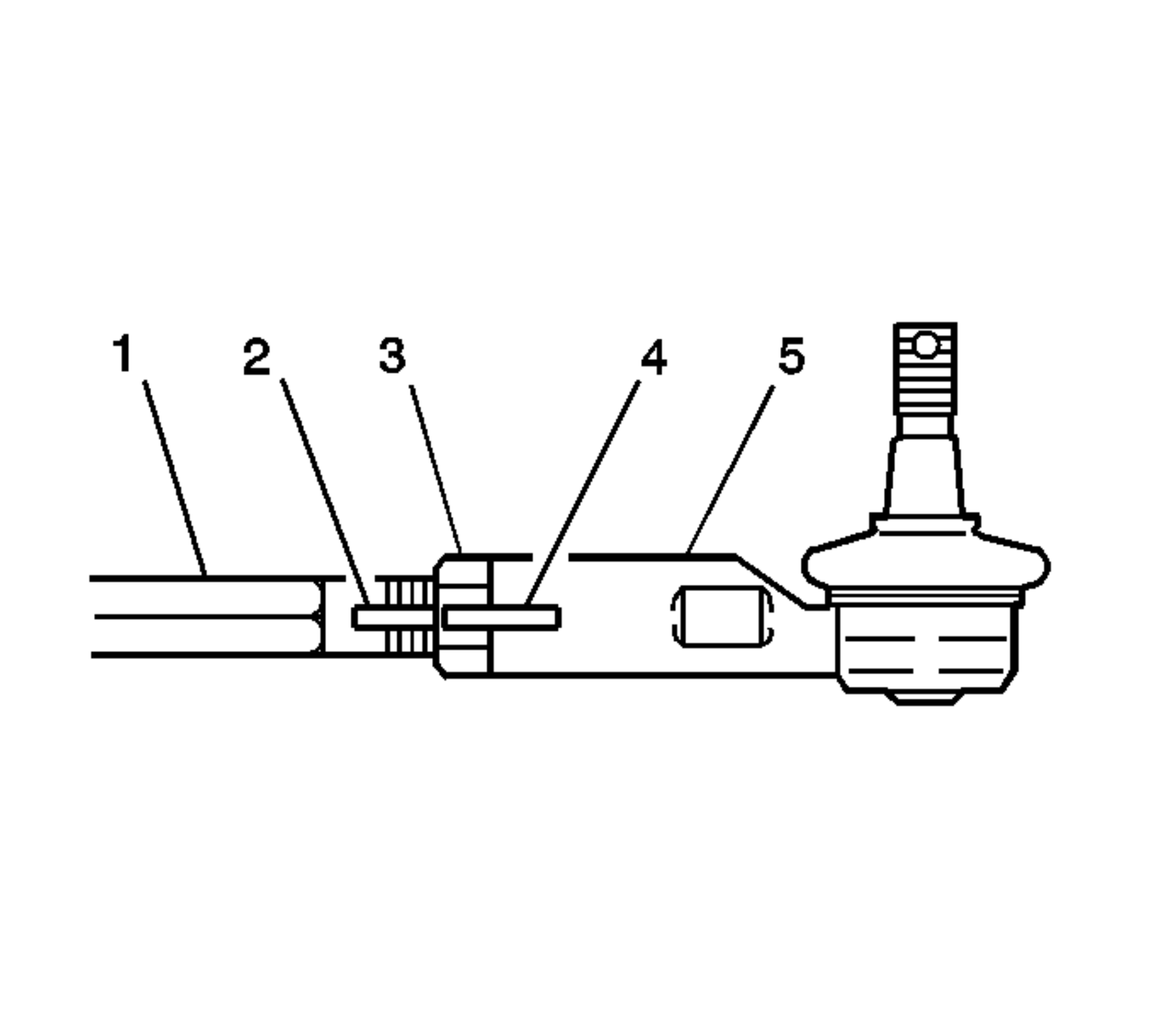

    Fig 1: Lock Nut, Outer/Inner Tie Rod And Matchmarks
    GM820299Courtesy of GENERAL MOTORS CORP.
  1. Install the outer tie rod (5) to the inner tie rod (1). Align the outer tie rod with the matchmarks (2,4). Do not tighten the lock nut (3).
  2. Install the outer tie rod to the steering knuckle.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the outer tie rod nut to the outer tie rod.

    Tighten:  Tighten the outer tie rod nut to 49 N.m (36.1 lb ft). Align the cotter pin slot by tightening the outer tie rod nut up to 1/6 additional turn, or 70 N.m (52 lb ft) maximum. Do not loosen the nut in order to insert the cotter pin.

  4. Install the cotter pin into the hole in the tie rod stud.
  5. Install the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  6. Adjust the front toe. Refer to Front Toe Adjustment in Wheel Alignment.

    Tighten:  Tighten the lock nut against the outer tie rod to 74 N.m (54.6 lb ft).

  7. Verify the steering gear boot is not twisted.
  8. Lower the vehicle.
