Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Verify the steering rack does not have grease or foreign material in the ventilation hole.

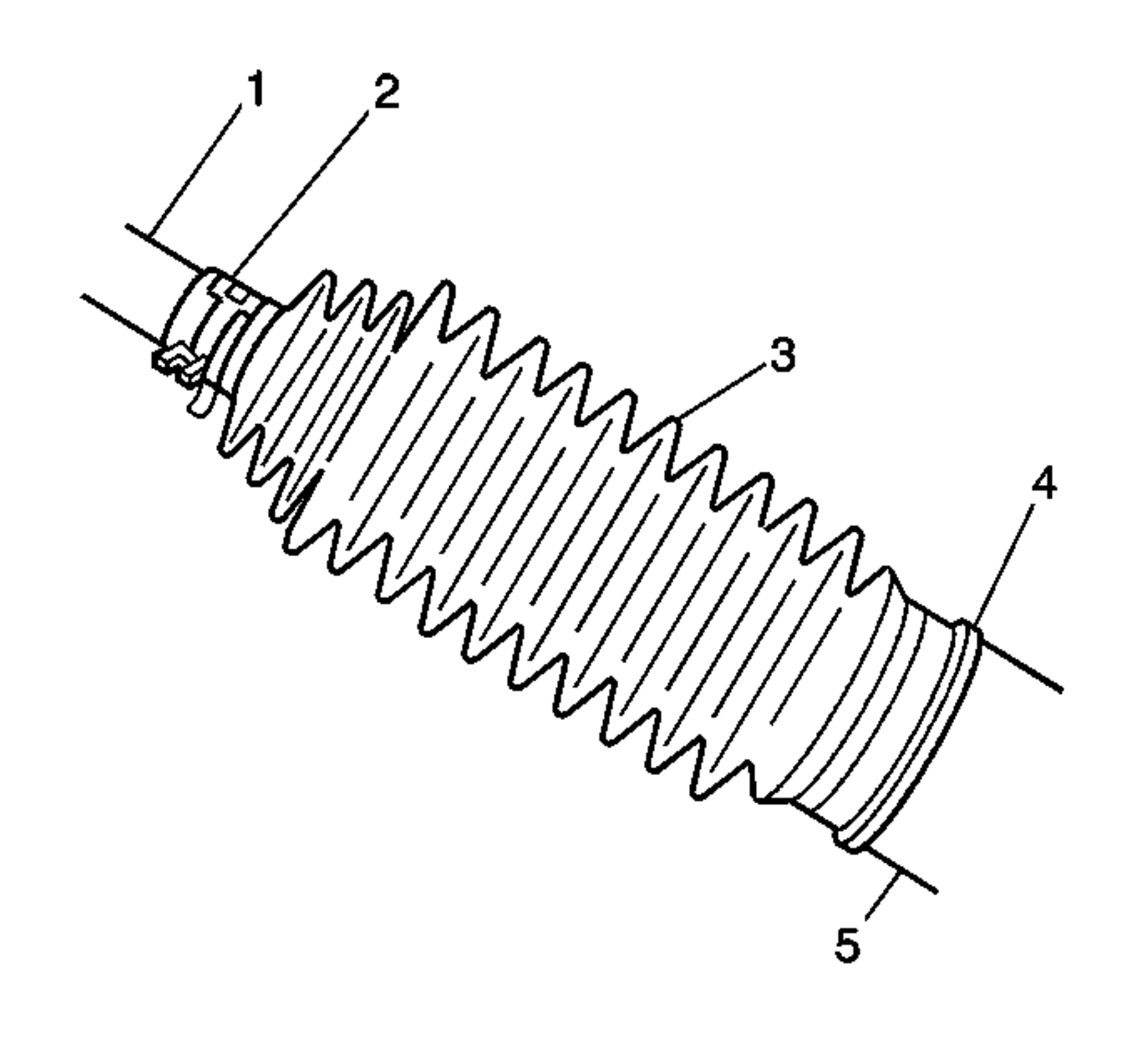

Fig 1: Boot Clamp Inner Tie Rod And Steering Gear

Courtesy of GENERAL MOTORS CORP.

Install the boot to the groove in the steering gear (3).
Install the boot clamp (2) in order to retain the boot to the gear.
Verify the boot is not twisted, dented, or improperly folded.

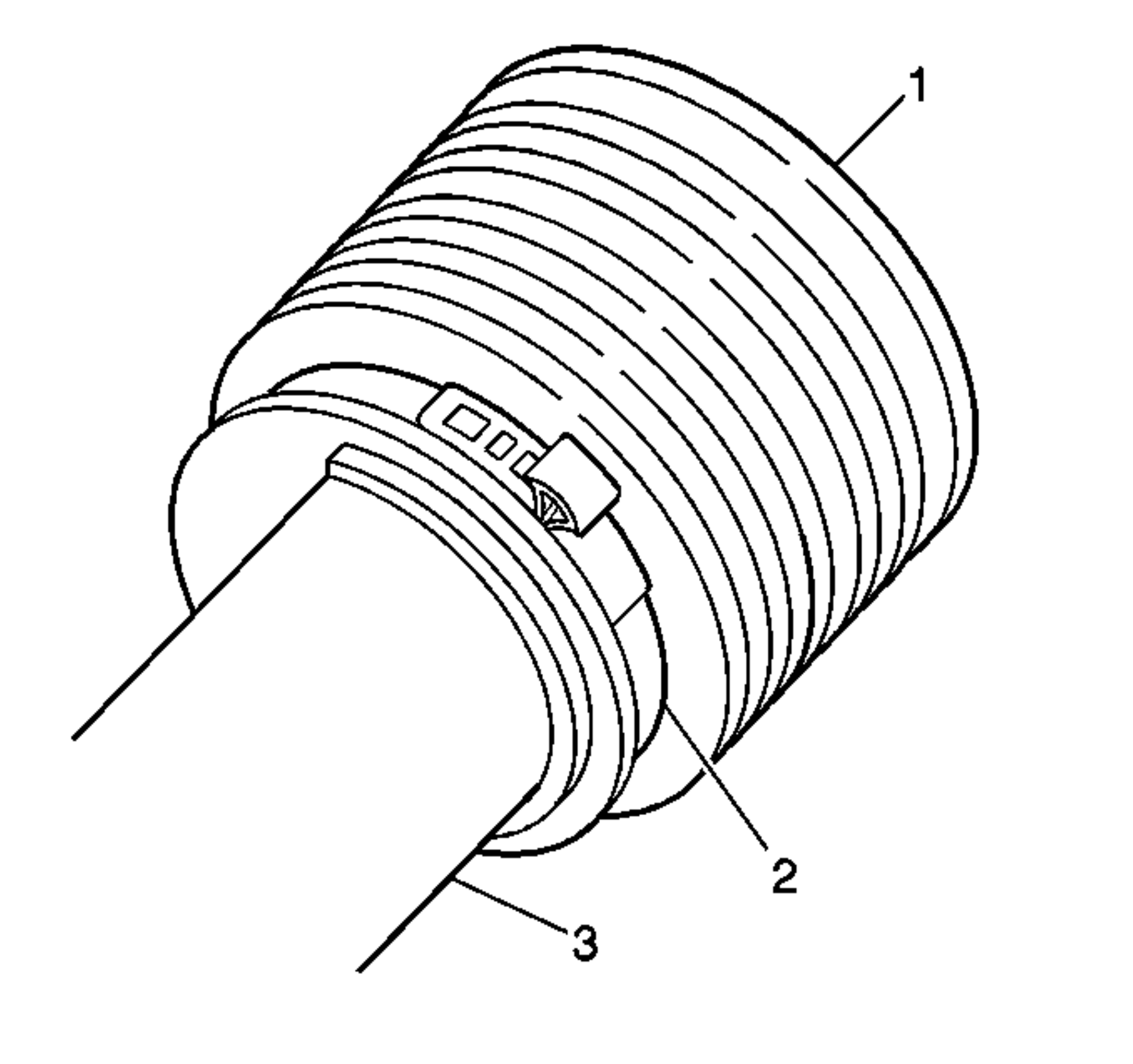

Fig 2: Boot Clamp

Courtesy of GENERAL MOTORS CORP.

Install the boot clamp (2) in order to retain the boot to the inner tie rod.
Install the outer tie rod. Refer to Rack and Pinion Outer Tie Rod End Replacement .
