Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place a drain pan under the vehicle in order to catch any power steering fluid.

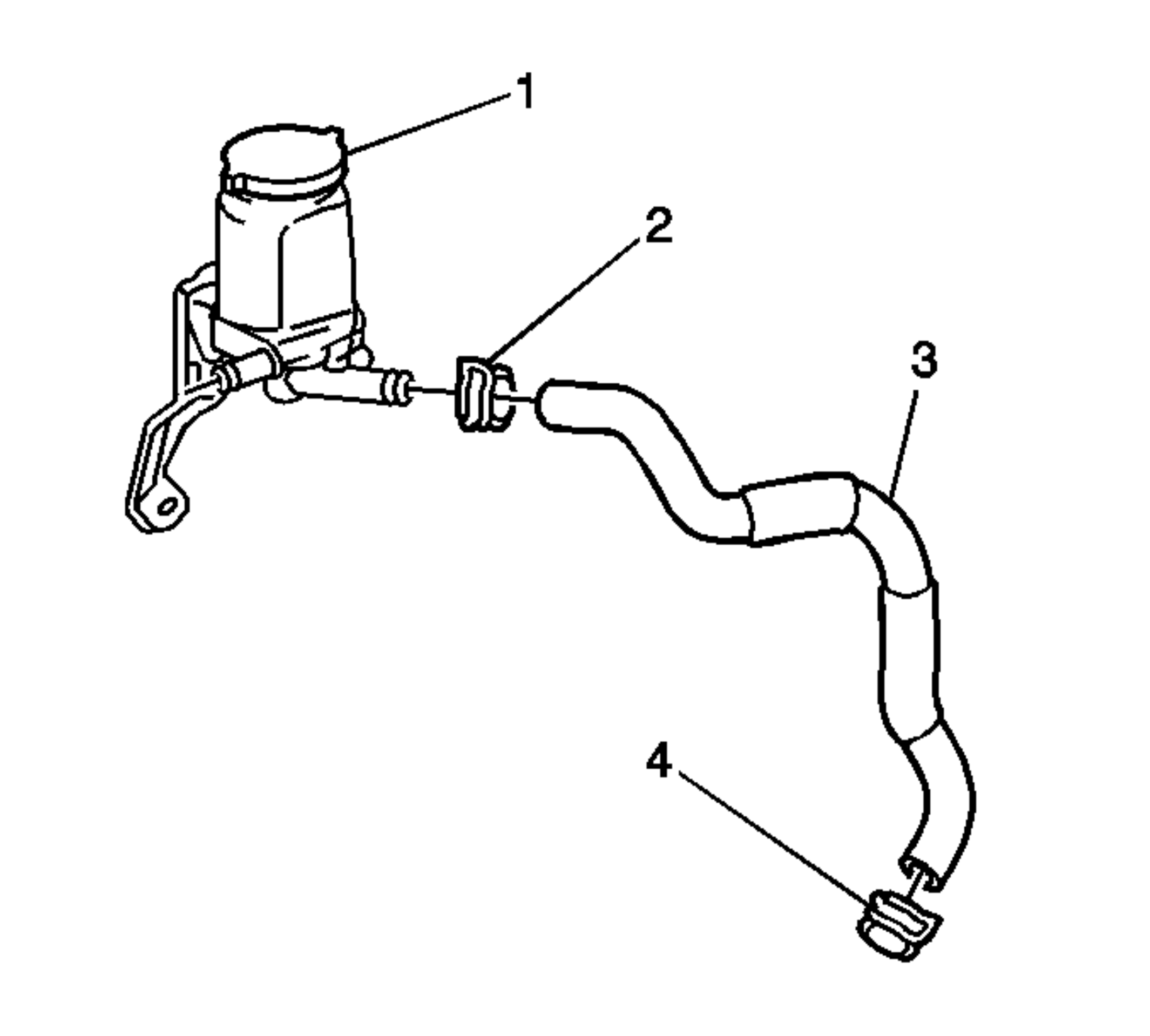

    2. Fig 1: Power Steering Reservoir, Hose And Clamps
    GM850338Courtesy of GENERAL MOTORS CORP.
  2. Loosen the hose clamp (4) that retains the reservoir outlet hose to the power steering pump.
    3. NOTE: Refer to Power Steering Hose Disconnected Notice in Cautions and Notices.
  3. Remove the reservoir outlet hose from the pump.
  4. Loosen the hose clamp (2) that retains the reservoir outlet hose to the power steering fluid reservoir.
  5. Remove the reservoir outlet hose from the reservoir.
