Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

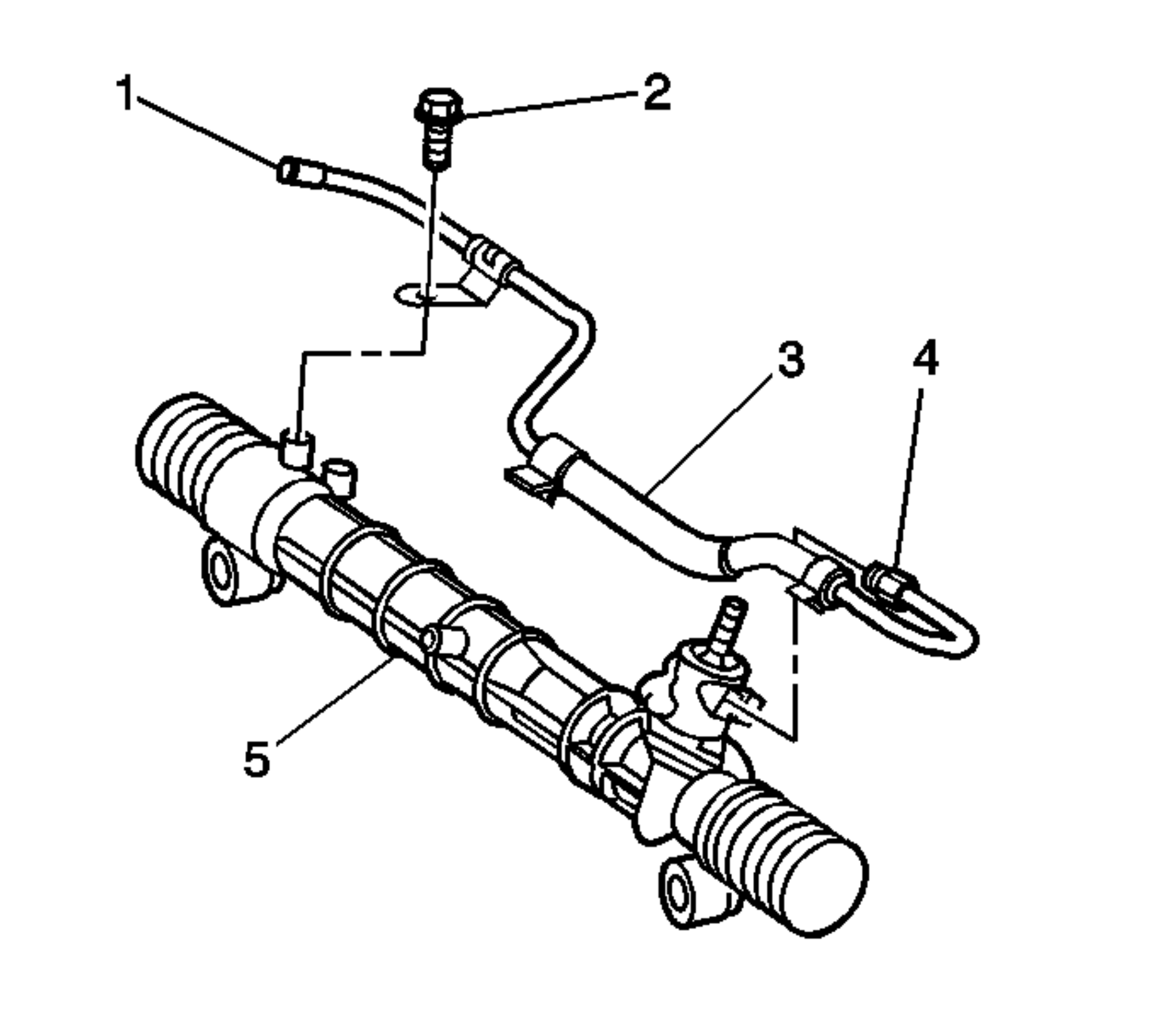

    Fig 1: Gear Outlet Hoses, Pipe Fitting, Steering Gear And Bolt
    GM850392Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
    NOTE: Refer to Installing Hoses without Twists or Bends Notice in Cautions and Notices.
  1. Install the pipe fitting (4) and the gear outlet hose (3) to the steering gear (5).

    Tighten:  Tighten the pipe fitting to 25 N.m (18.4 lb ft).

  2. Install the end of the gear outlet hose (1) to the cooling pipe.
  3. Install the hose clamp in order to retain the hose to the pipe.
  4. Install the bolt (2) in order to retain the hose to the steering gear.

    Tighten:  Tighten the bolt to 7.8 N.m (69.04 lb in).

    5. NOTE: Refer to Using Proper Power Steering Fluid Notice in Cautions and Notices.
  5. Fill the power steering fluid reservoir. Refer to Checking and Adding Power Steering Fluid .
    6. NOTE: Refer to Air in the Power Steering System Notice in Cautions and Notices.
  6. Bleed the power steering system. Refer to Bleeding the Power Steering System .
