Installation Procedure
WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

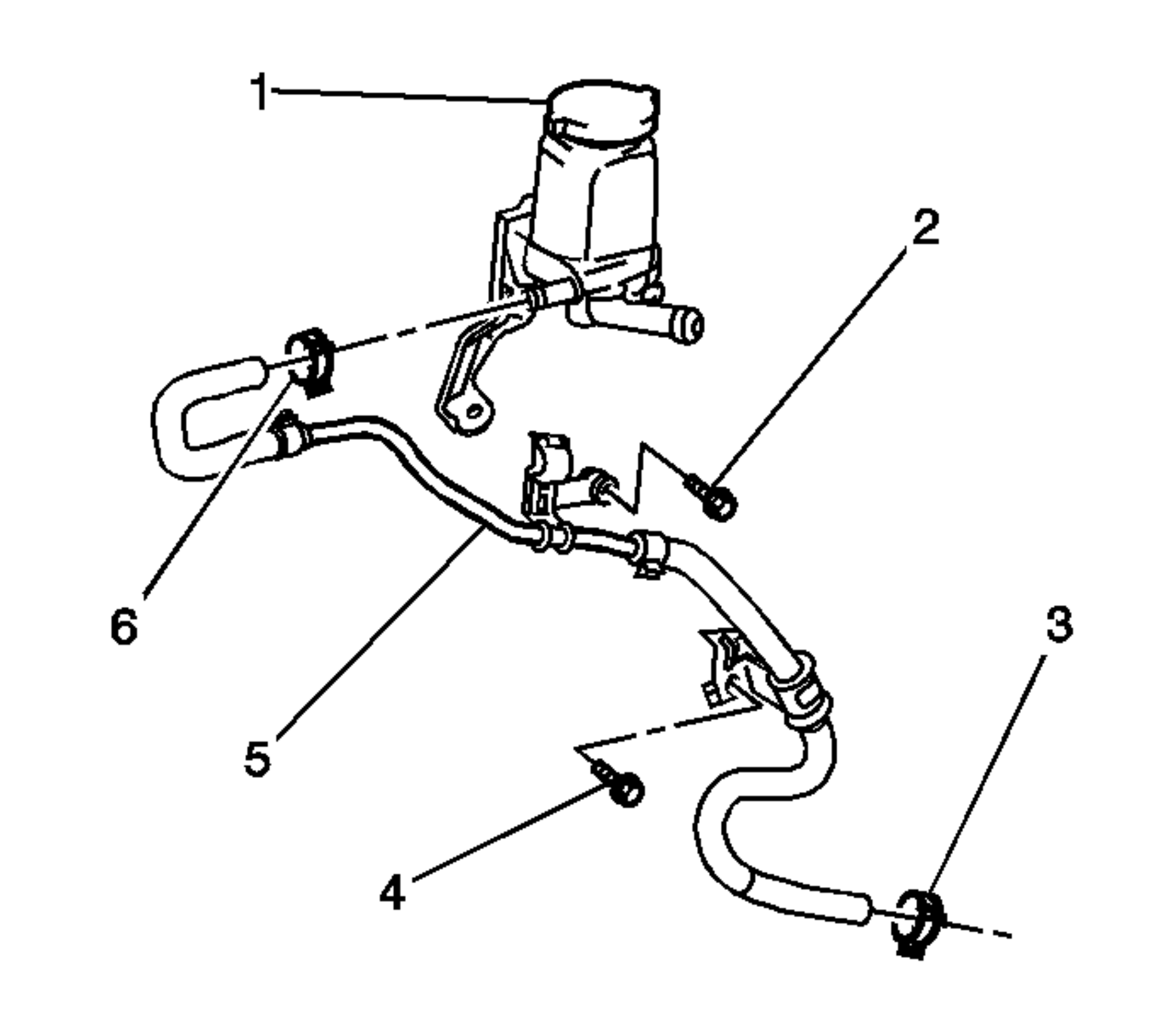

- Install the power steering fluid cooler pipe (5) to the power steering fluid reservoir.
- Install the cooler pipe to the end of the steering gear outlet hose.
- Install the 2 bolts (2,4).
Tighten: Tighten the bolts to 7.8 N.m (69.04 lb in).
- Install the 2 hose clamps (3,6).
- Fill the power steering fluid reservoir. Refer to Checking and Adding Power Steering Fluid .
- Bleed the power steering system. Refer to Bleeding the Power Steering System .
NOTE:
Refer to Installing Hoses without Twists or Bends Notice
in Cautions and Notices.
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
NOTE:
Refer to Using Proper Power Steering Fluid Notice
in Cautions and Notices.
NOTE:
Refer to Air in the Power Steering System Notice
in Cautions and Notices.
