Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

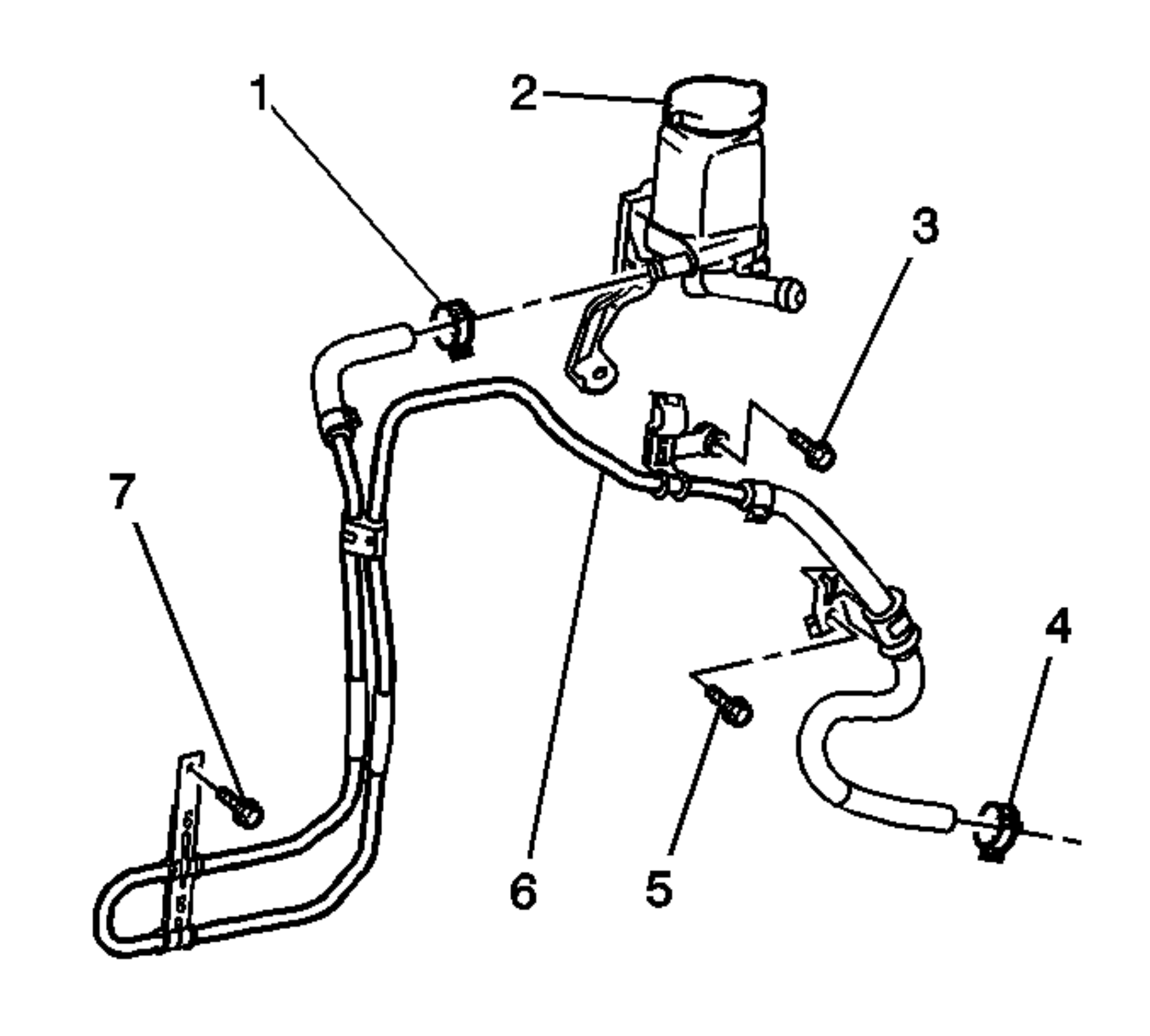

    Fig 1: Fluid Cooler Pipe, Bolts And Hose Clamps (AWD)
    GM850382Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Installing Hoses without Twists or Bends Notice in Cautions and Notices.
  1. Install the power steering fluid cooler pipe (6) to the power steering fluid reservoir.
  2. Install the cooler pipe to the end of the steering gear outlet hose.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the 3 bolts (3,5,7).

    Tighten:  Tighten the bolts to 7.8 N.m (69.04 lb in).

  4. Install the 2 hose clamps (1,4).
    5. NOTE: Refer to Using Proper Power Steering Fluid Notice in Cautions and Notices.
  5. Fill the power steering fluid reservoir. Refer to Checking and Adding Power Steering Fluid .
    6. NOTE: Refer to Air in the Power Steering System Notice in Cautions and Notices.
  6. Bleed the power steering system. Refer to Bleeding the Power Steering System .
