Ball Joint Inspection
WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front lower ball joint. Refer to Lower Ball Joint Replacement in Front Suspension.

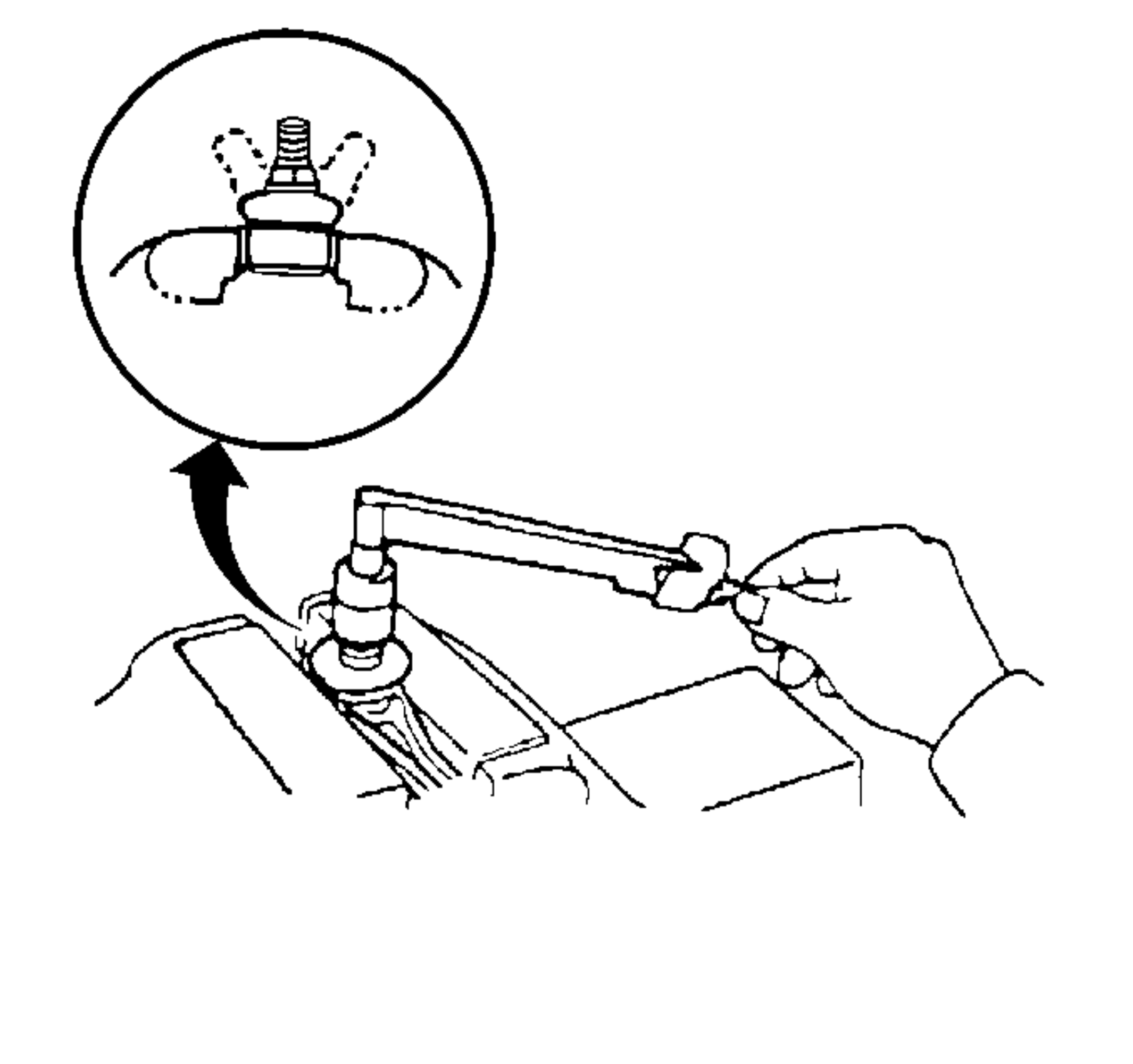

- Clamp the ball joint in a soft-jawed vise.
- Inspect the movement of the ball joint by moving the ball joint back and forth 5 times.
- Install a new nut on the stud.
- Use a beam type torque wrench in order to turn the nut continuously for 1 turn every 3 to 5 seconds.
- Take the torque reading on the fifth turn.
Reading: The reading should be between 0.98 N.m (8.674 lb in) and 4.9 N.m (43.37 lb in).
- If the movement of the ball joint is not within the specification, replace the ball joint. Refer to Lower Ball Joint Replacement .
