Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Brake fluid may irritate eyes and skin. In case of contact, take the following actions:
  • Eye contact-rinse thoroughly with water.
  • Skin contact-wash with soap and water.
  • If ingested-consult a physician immediately.
NOTE: Brake fluid will damage electrical connections and painted surfaces. Use shop cloths, suitable containers, and fender covers to prevent brake fluid from contacting these areas. Always re-seal and wipe off brake fluid containers to prevent spills.
  1. Use a siphon in order to remove half of the brake fluid from the reservoir.
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  3. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.

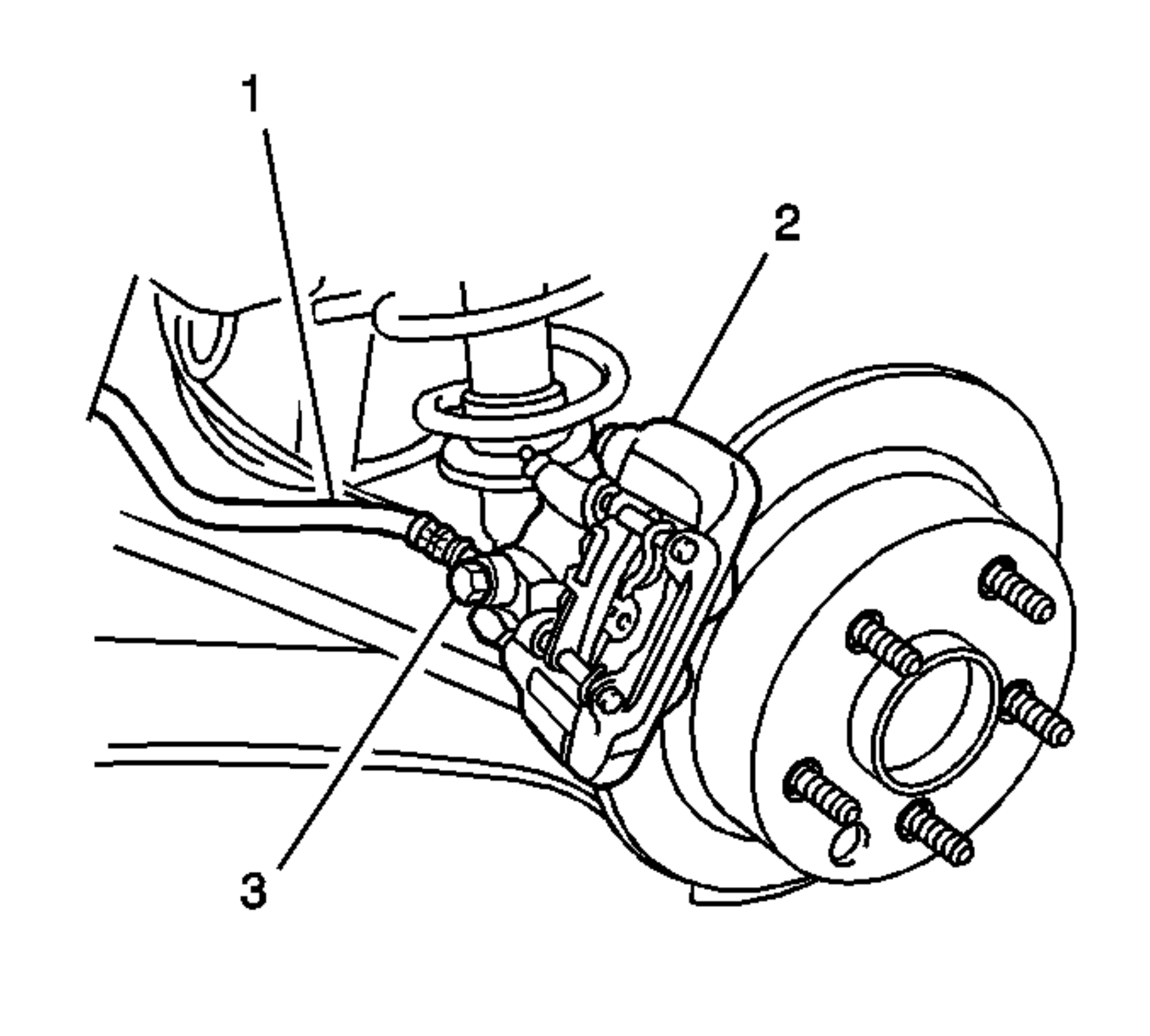

    4. Fig 1: Brake Caliper, Brake Hose Fitting And Brake Hose
    GM817347Courtesy of GENERAL MOTORS CORP.
  4. Place a container below the brake hose (1) in order to catch the brake fluid.
  5. Remove the rear brake hose fitting (3) and the washer from the caliper.
    6. Fig 2: Brake Caliper Components
    GM817335Courtesy of GENERAL MOTORS CORP.
  6. Remove the caliper bolts (1,8).
  7. Remove the caliper from the vehicle.
  8. Remove the brake pads and the hardware from the caliper. Refer to Brake Pads Replacement - Rear .
