Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

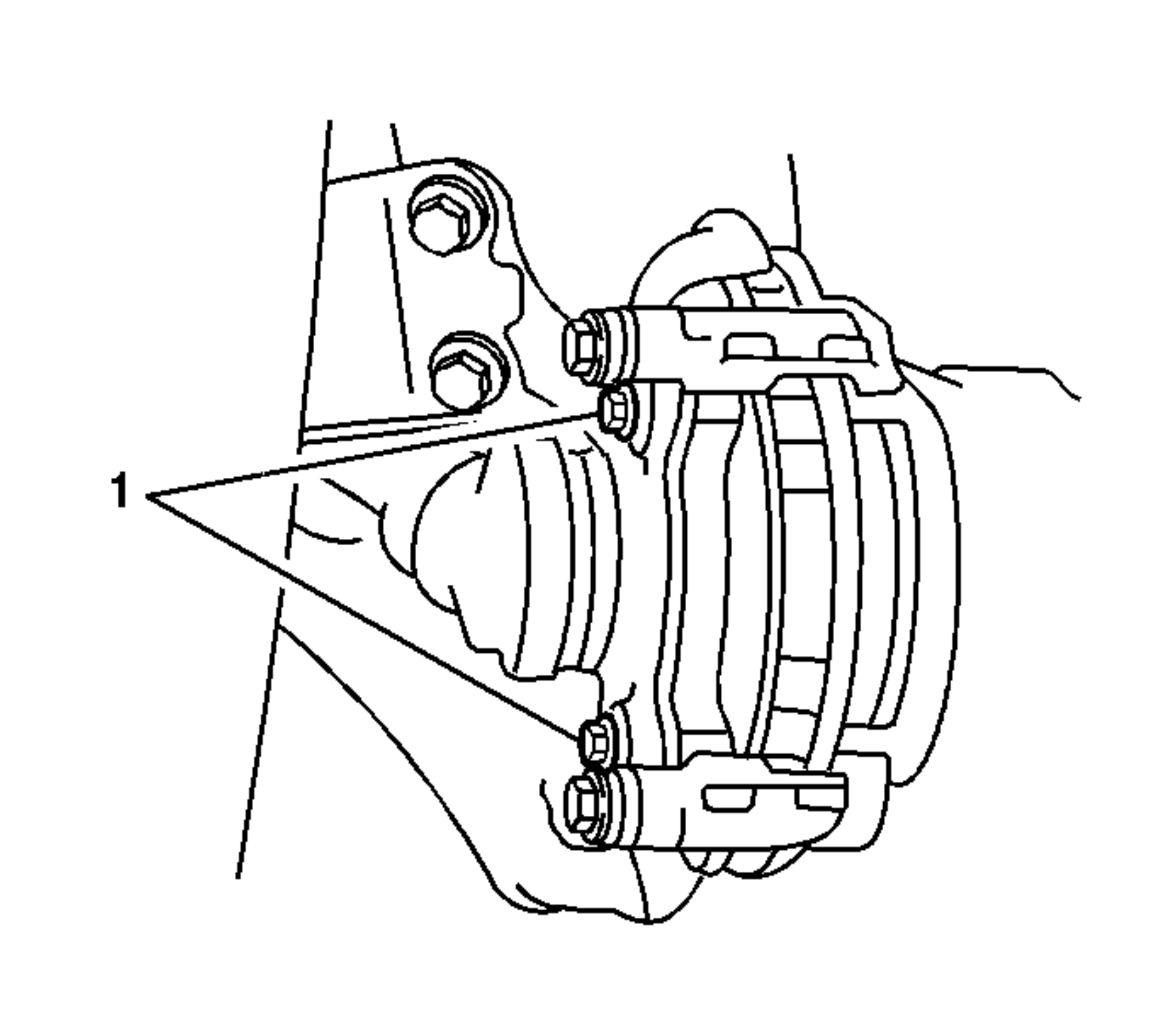

Fig 1: Caliper Bracket Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the bracket and the 2 bolts (1).
Tighten: Tighten the bolts to 106.8 N.m (78.77 lb ft).
Install the disc brake hardware and the slide pin boots. Refer to Disc Brake Hardware Replacement - Front .
