Installation Procedure
WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

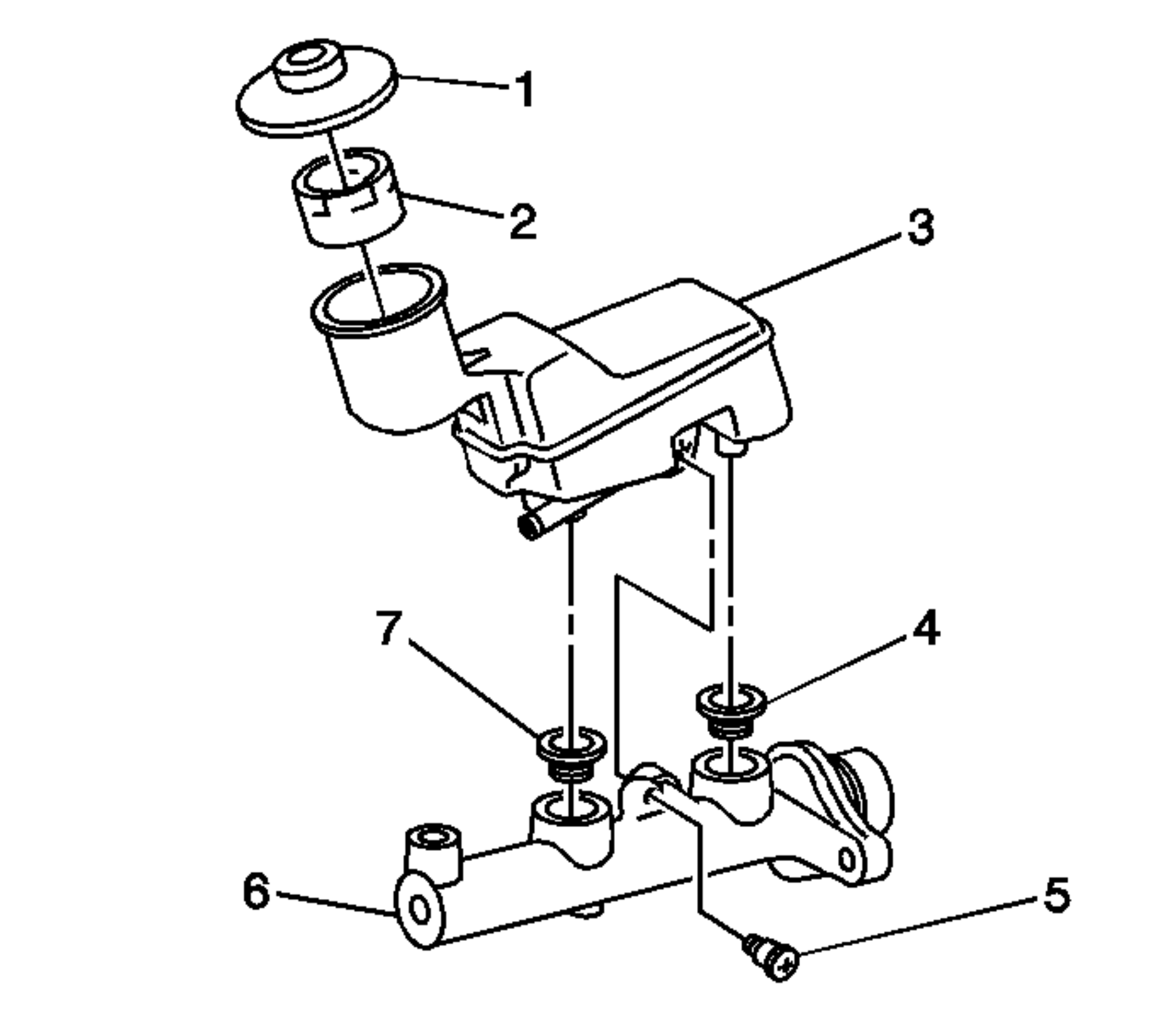

- Lubricate the grommets (4,7) with new brake fluid.
- Install the grommets to the master cylinder.
- Install the reservoir to the master cylinder.
- Install the screw (5).
- Install the reservoir diaphragm (2).
- Fill the reservoir and install the cap. Refer to Master Cylinder Reservoir Filling .
- Inspect the master cylinder for fluid leakage.
- Connect the brake fluid level switch connector.
CAUTION:
Refer to Brake Fluid Caution
in Cautions and Notices.
NOTE:
Refer to Filling the Master Cylinder Notice
in Cautions and Notices.
