Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

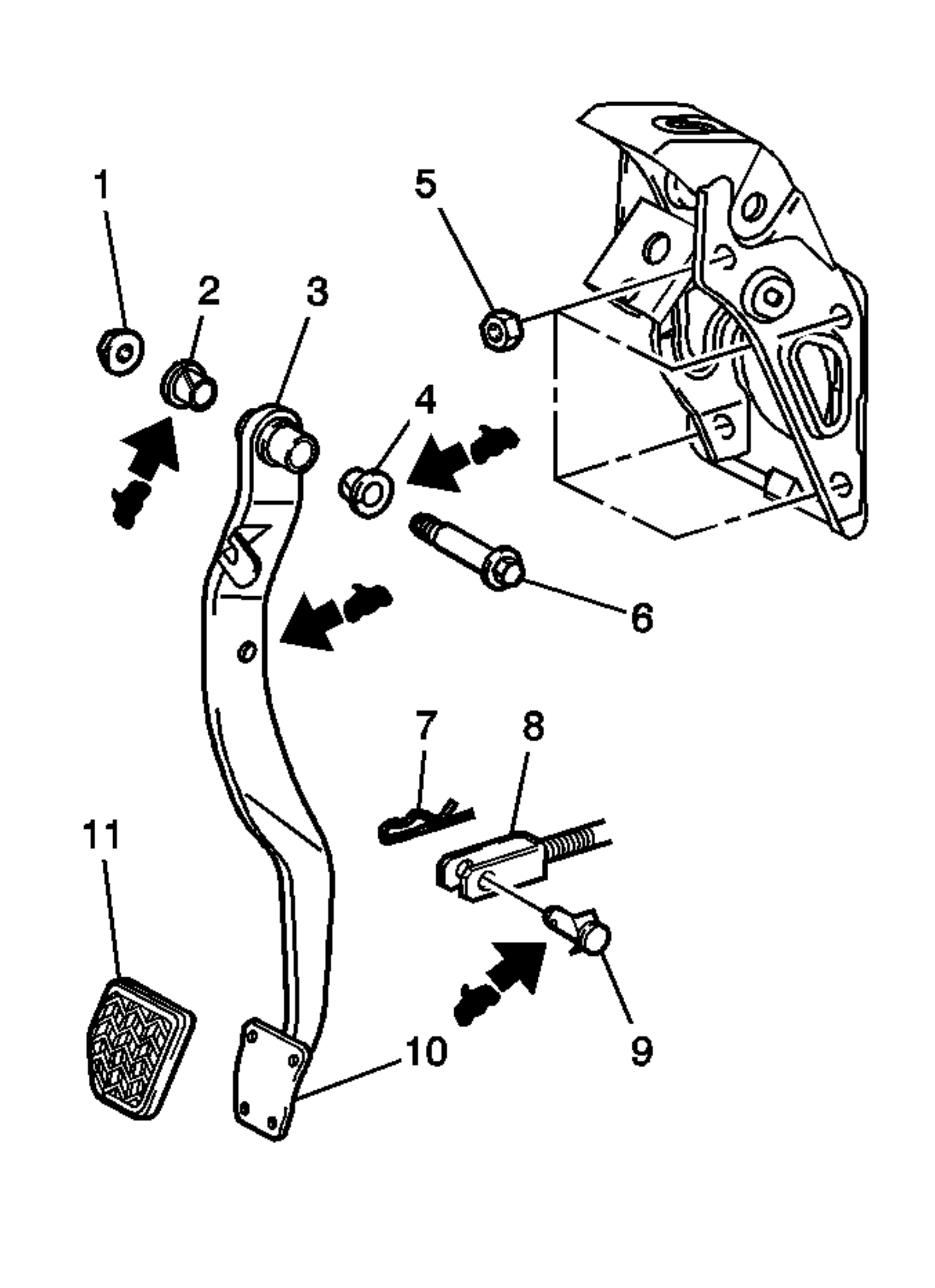

    Fig 1: Brake Pedal Components
    GM815063Courtesy of GENERAL MOTORS CORP.
    CAUTION: Before servicing any electrical component, the ignition key must be in the OFF or LOCK position and all electrical loads must be OFF, unless instructed otherwise in these procedures. If a tool or equipment could easily come in contact with a live exposed electrical terminal, also disconnect the negative battery cable. Failure to follow these precautions may cause personal injury and/or damage to the vehicle or its components.
  1. Disconnect the negative battery cable.
  2. Disconnect the stoplamp switch connector.
  3. Remove the clip (7) from the push rod clevis pin (9).
  4. Remove the push rod clevis pin and the washer from the push rod clevis (8).
  5. Remove the push rod clevis from the brake pedal (10).
  6. Remove the 4 bracket nuts (5).
  7. Remove the shaft bolt (6) and the nut (1).
  8. Remove the pedal from the bracket.
  9. Remove the bushings (2,4) from the pedal.
  10. Remove the cover (11) from the pedal.
