Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cap or the plug from the caliper.

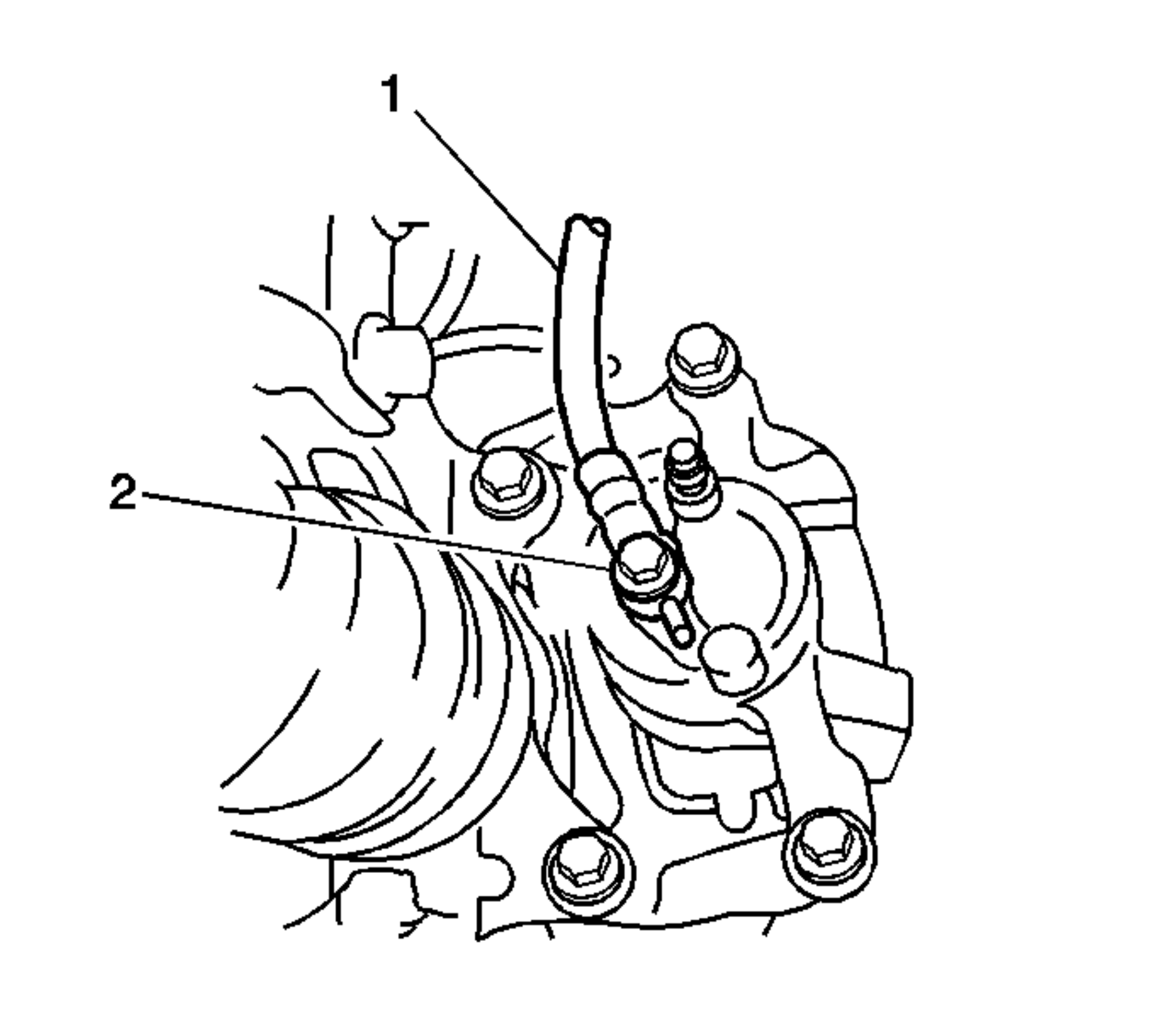

Fig 1: Brake Hose And Fitting

Courtesy of GENERAL MOTORS CORP.

Install the following components to the caliper:
- A NEW brake hose gasket
- The fitting (2)
- The brake hose (1)

NOTE: Refer to Fastener Notice in Cautions and Notices.

Tighten the fitting.
Tighten: Tighten the fitting to 29 N.m (21.4 lb ft).

Fig 2: Brake Hose Components

Courtesy of GENERAL MOTORS CORP.

Install the brake hose (4) to the bracket.
Install the bolt (1).
Tighten: Tighten the bolt to 29 N.m (21.4 lb ft).
Remove the cap or the plug from the brake pipe.

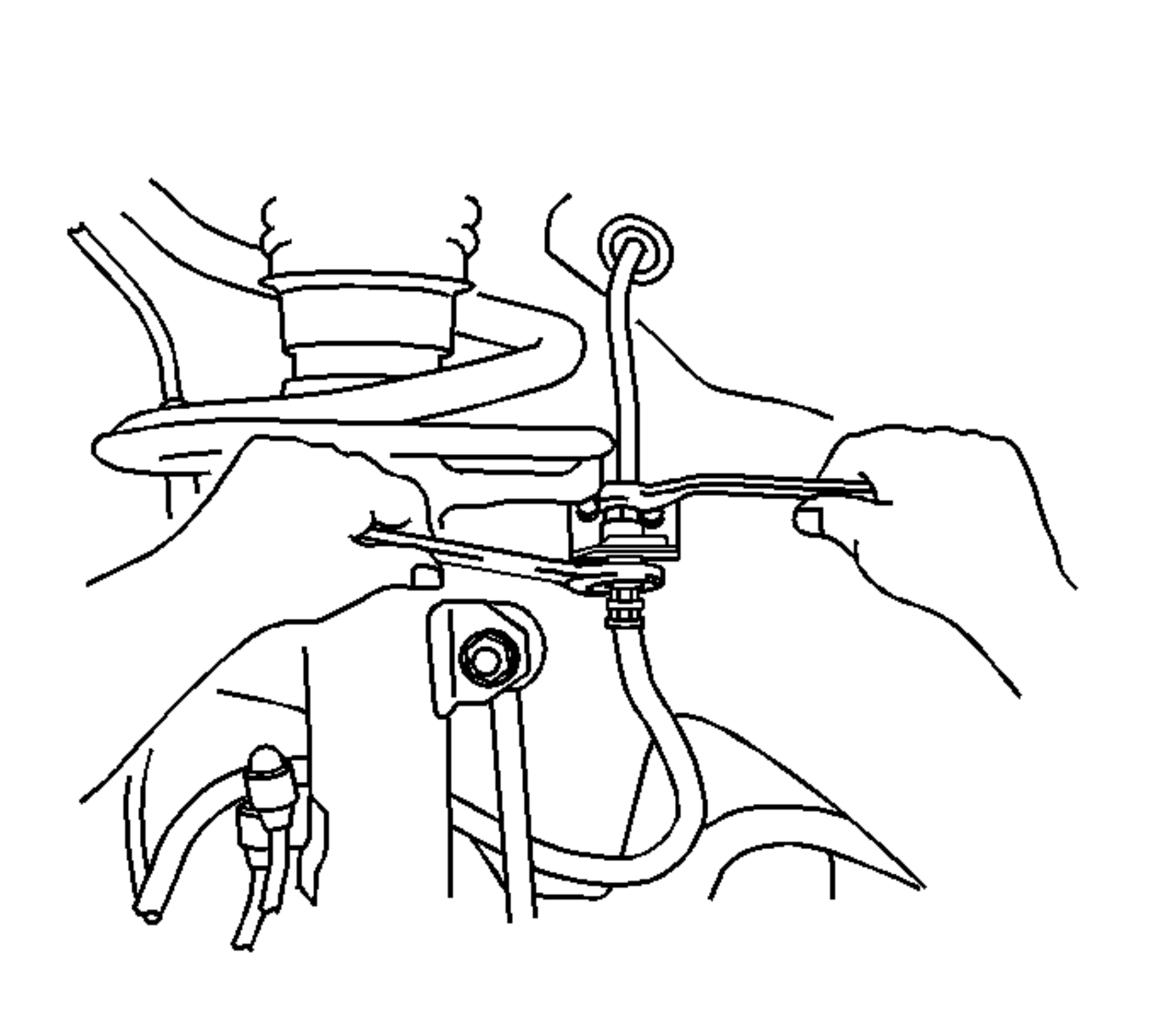

Fig 3: Removing/Installing Brake Hose

Courtesy of GENERAL MOTORS CORP.

Install the brake hose and the retainer to the brake pipe.
Tighten: Tighten the fitting to 15.2 N.m (11.21 lb ft).

CAUTION: Refer to Brake Fluid Caution in Cautions and Notices.

NOTE: Refer to Filling the Master Cylinder Notice in Cautions and Notices.

Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding .
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
Lower the vehicle.
