Park Brake Shoe Inspection

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Remove the park brake shoes. Refer to Park Brake Shoe Replacement .
Inspect the park brake shoes for the following conditions:
- Oil or fluid contamination
- Cracks
- Uneven wear

Fig 1: Measuring Park Brake Shoe Lining

Courtesy of GENERAL MOTORS CORP.

Measure the thickness of the park brake shoe lining.
Specification: The minimum park brake shoe lining thickness is 1.0 mm (0.039 in).

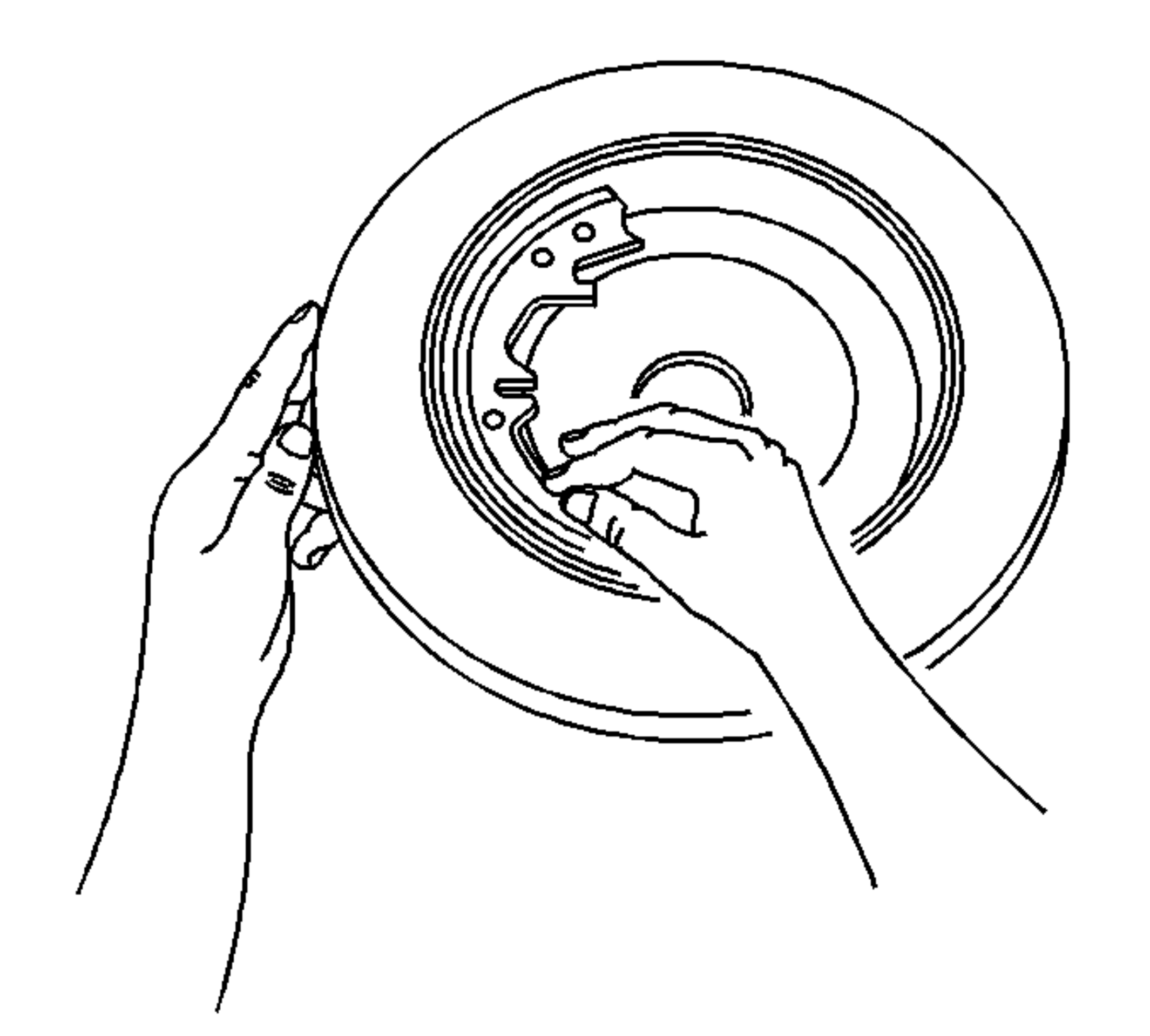

Fig 2: Inspecting Park Brake Shoe And Rear Brake Rotor

Courtesy of GENERAL MOTORS CORP.

Inspect the park brake shoe and the rear brake rotor for proper contact.
Replace the park brake shoes if necessary. Refer to Park Brake Shoe Replacement .
