HVAC Component Views

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

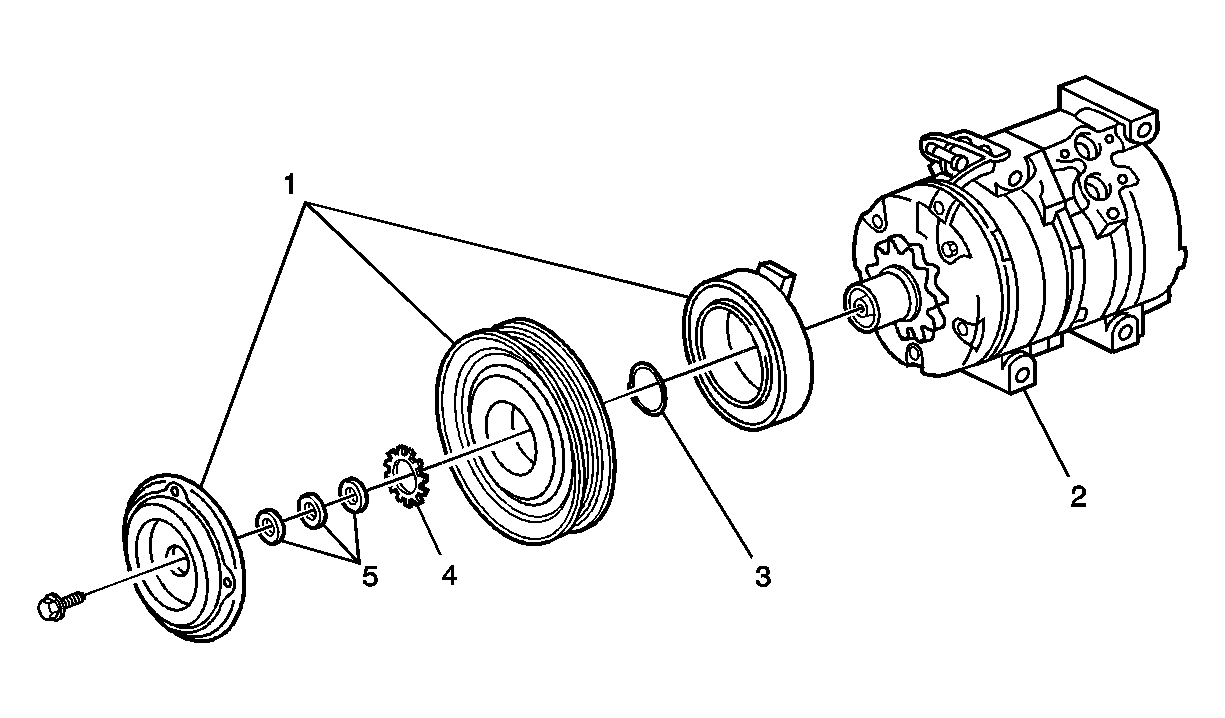

Fig 1: A/C Compressor Clutch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Compressor Clutch Assembly
2	A/C Compressor Assembly
3	Snap Ring
4	Snap Ring
5	Clutch Washer

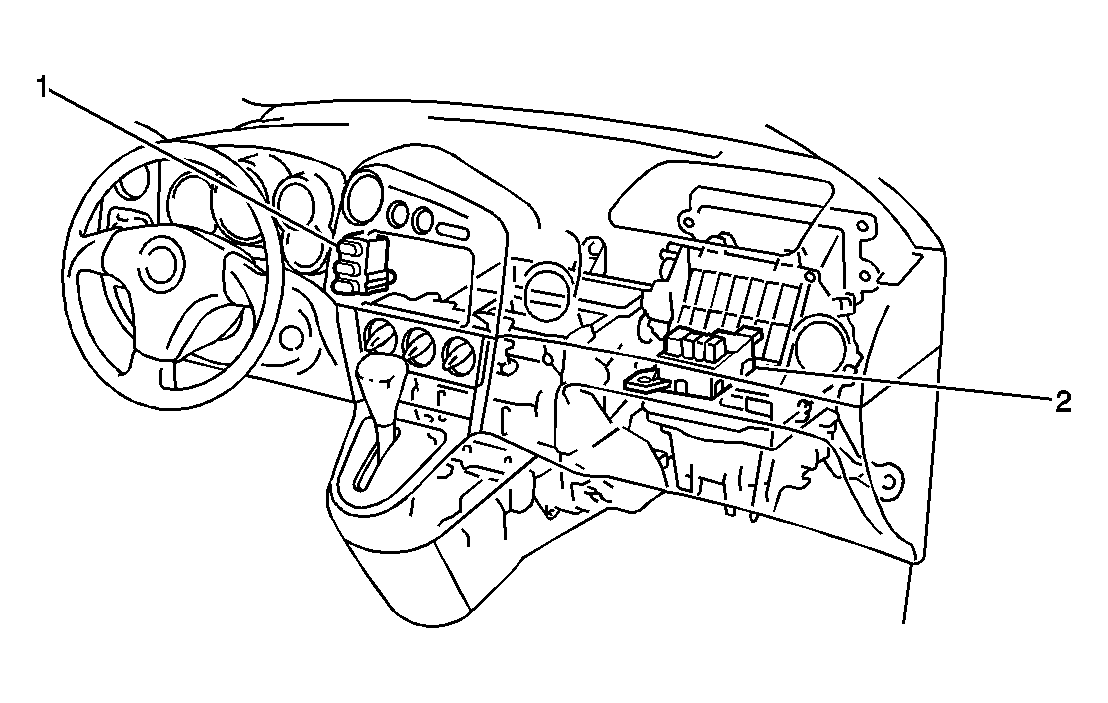

Fig 2: A/C Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Switch
2	Heater Relay

Fig 3: Recirculation Actuator Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Actuator Bolts
2	Actuator Connector
3	Recirculation Actuator

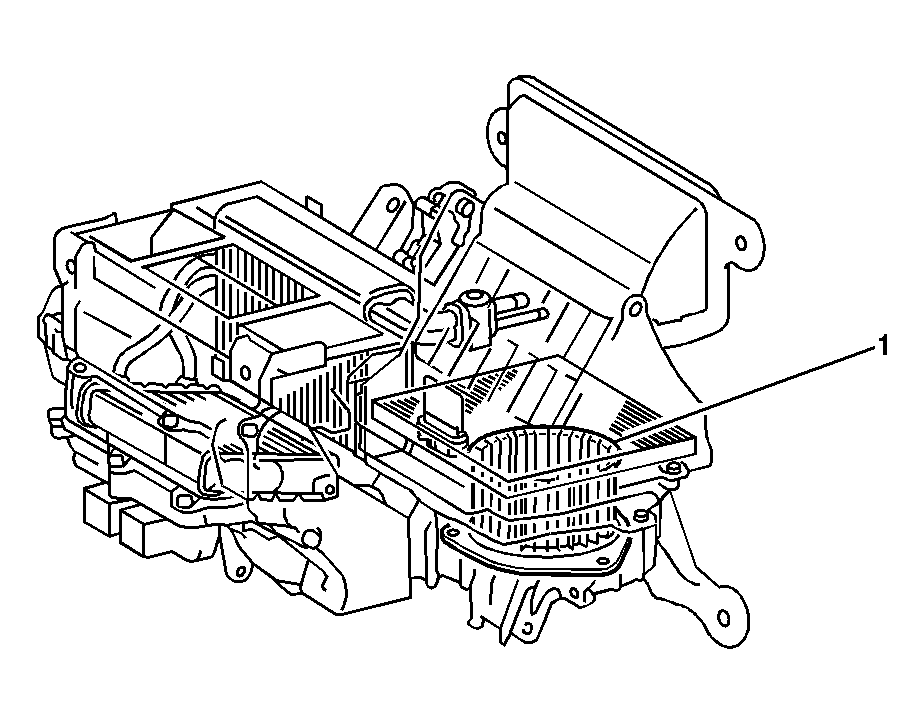

Fig 4: Blower Motor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor

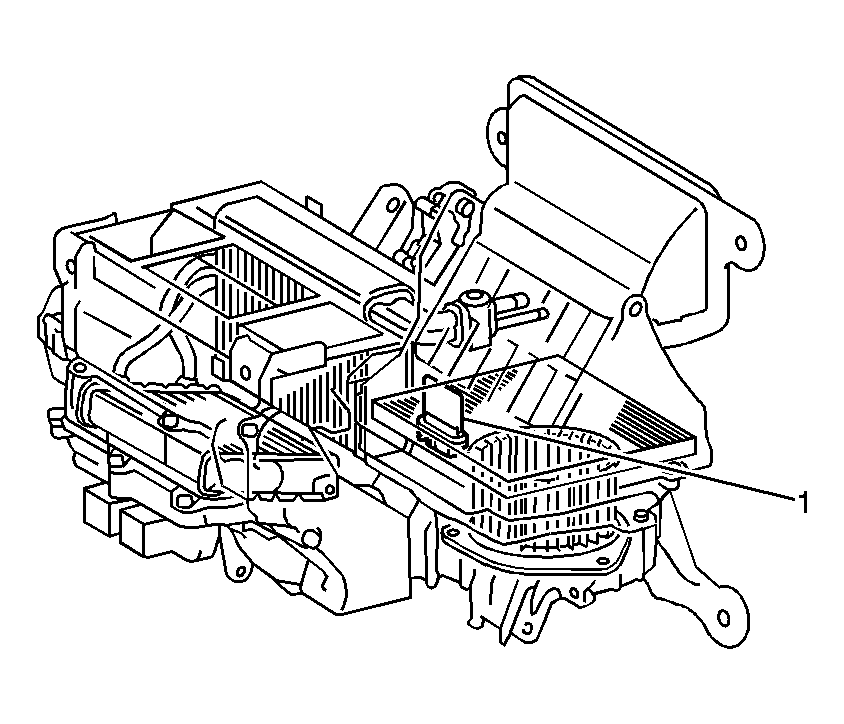

Fig 5: Blower Motor Resistor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Resistor

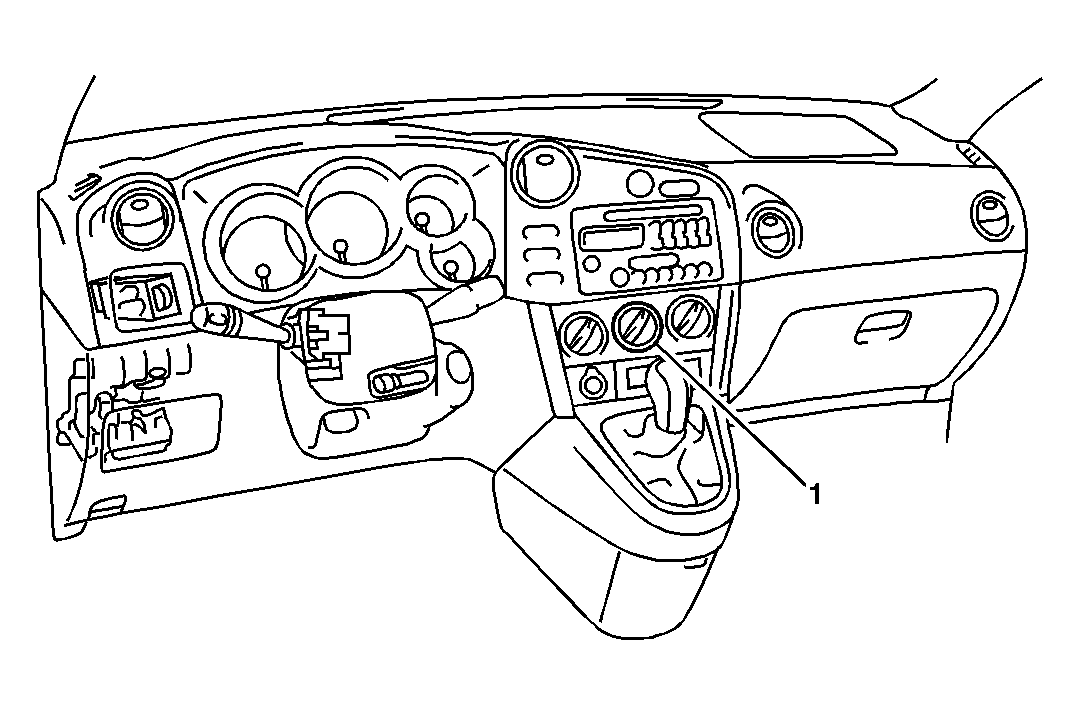

Fig 6: Blower Speed Selector Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Speed Selector Switch

Fig 7: Refrigerant Pressure Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Refrigerant Pressure Sensor
