Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

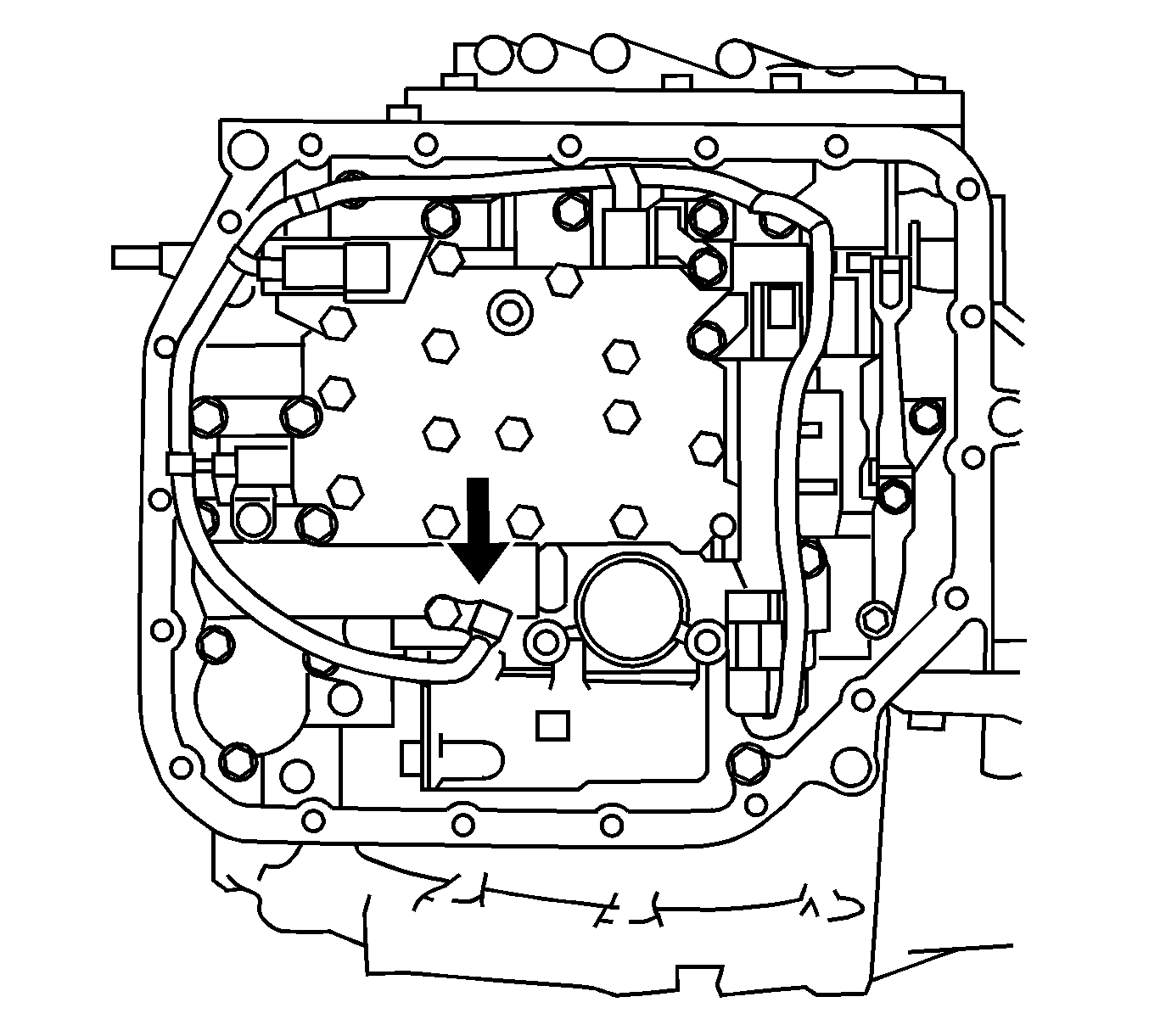

    Fig 1: Solenoid Connectors
    GM875883Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the 5 solenoid connectors.
  2. Remove the lock plate and bolt, then remove the ATF temperature sensor from the valve body.
    3. Fig 2: Manual Detent Spring And Cover
    GM875884Courtesy of GENERAL MOTORS CORP.
  3. Remove the manual detent spring (1) and cover (2) from the valve body.

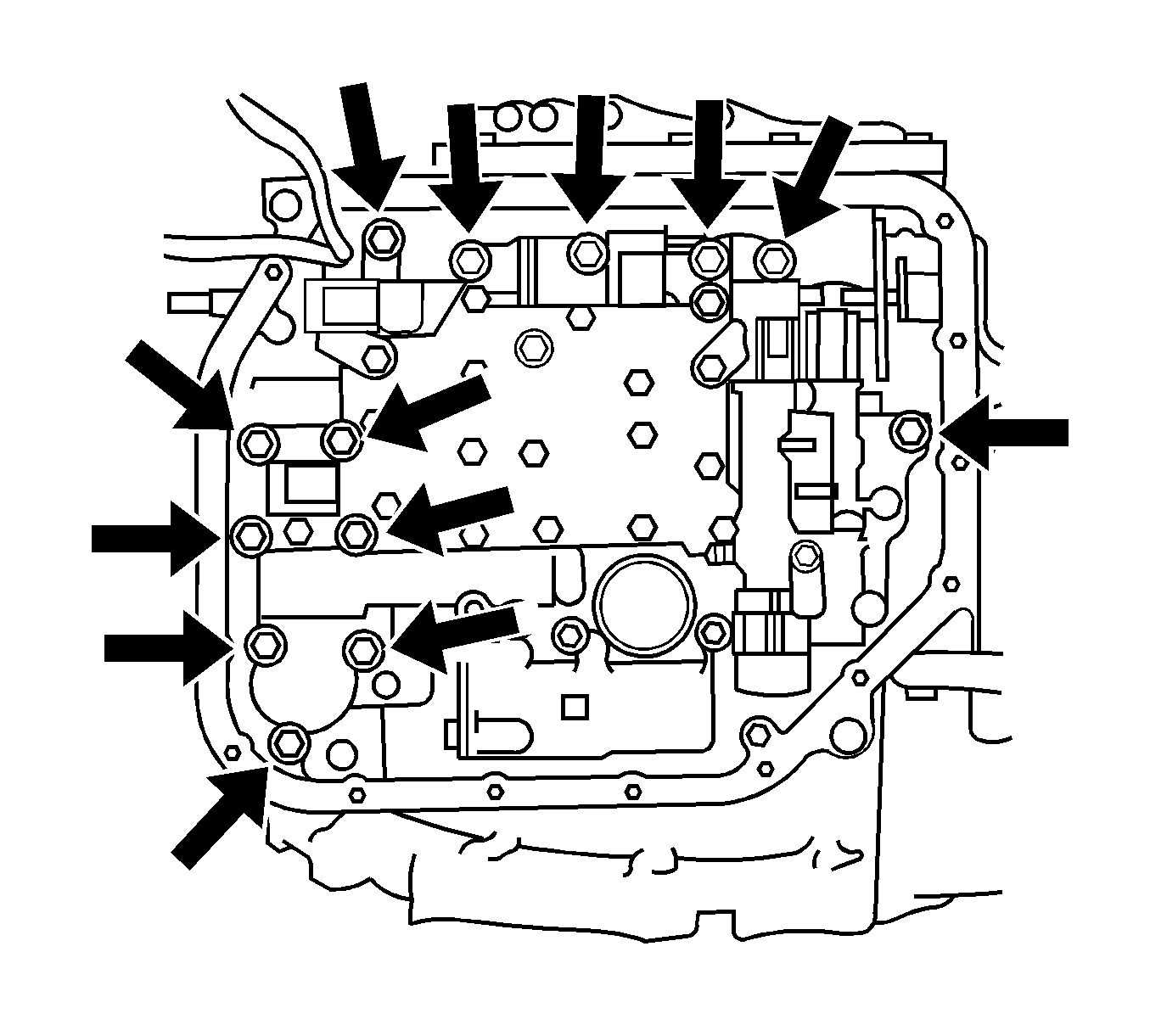

    4. Fig 3: Valve Body Retaining Bolts
    GM875885Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Slowly lower the valve body from the transaxle, the check ball assembly and the accumulator piston located above the valve body may fall out of the transaxle case.
  4. Remove the 13 valve body retaining bolts and the valve body.
    5. Fig 4: Check Ball Assembly And Accumulator
    GM875886Courtesy of GENERAL MOTORS CORP.
  5. Remove the check ball assembly and accumulator.
    6. Fig 5: Valve Body Gaskets
    GM875887Courtesy of GENERAL MOTORS CORP.
  6. Remove the 2 gaskets.
