Installation Procedure
WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

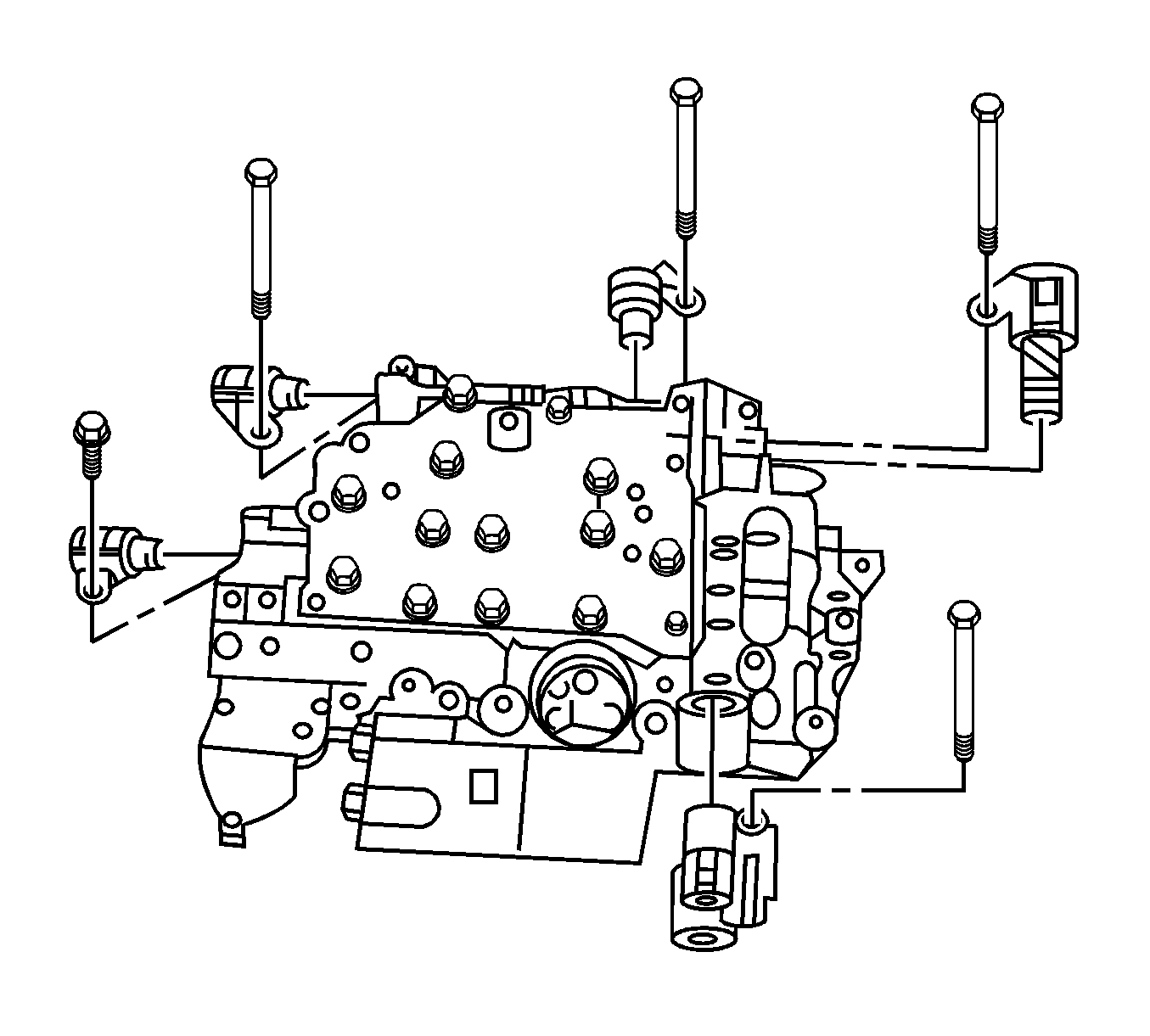

- Install the solenoids on the valve body.
Tighten: Tighten the bolts to 11 N.m (97 lb in).

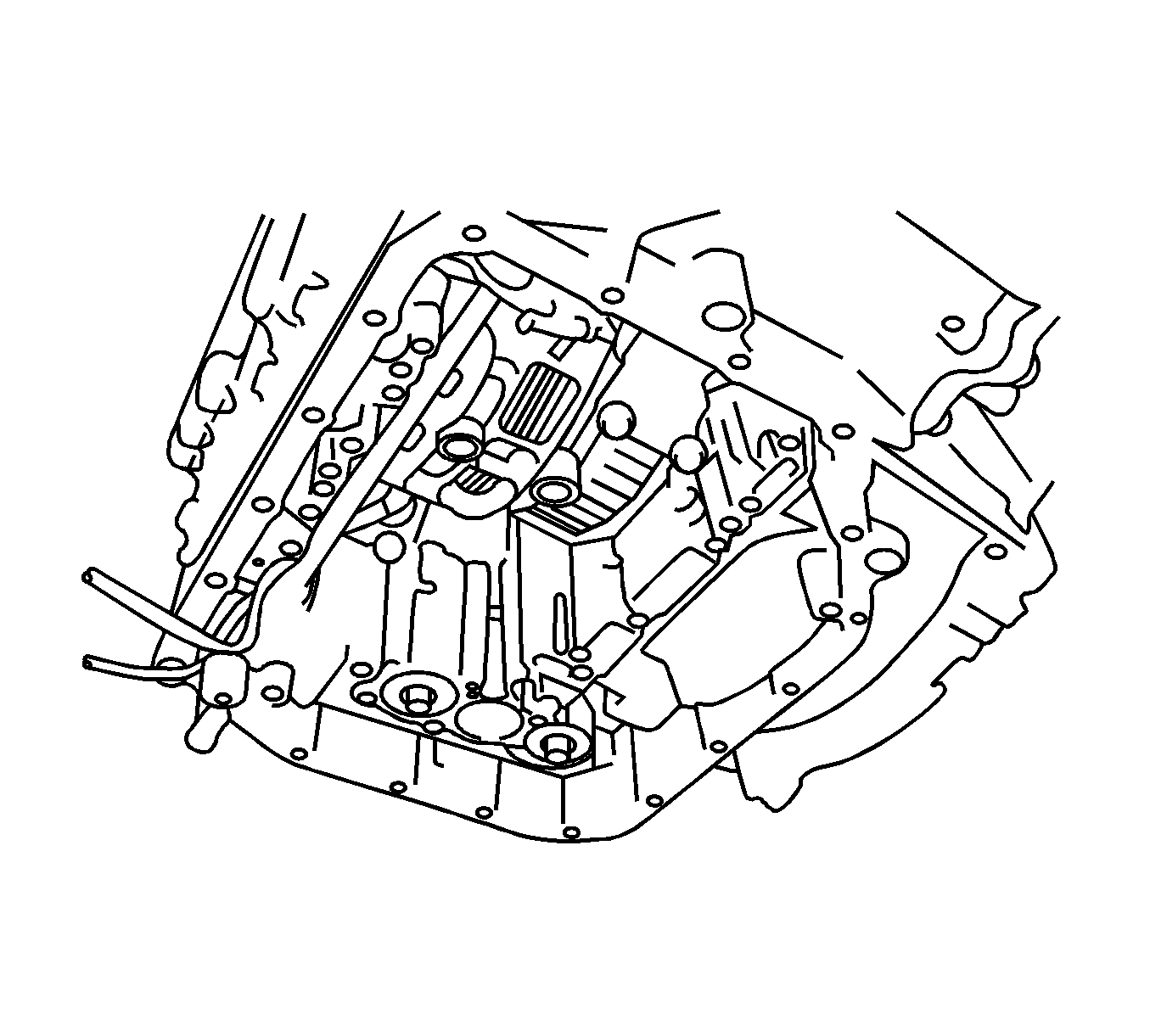

- Install the 2 new gaskets.

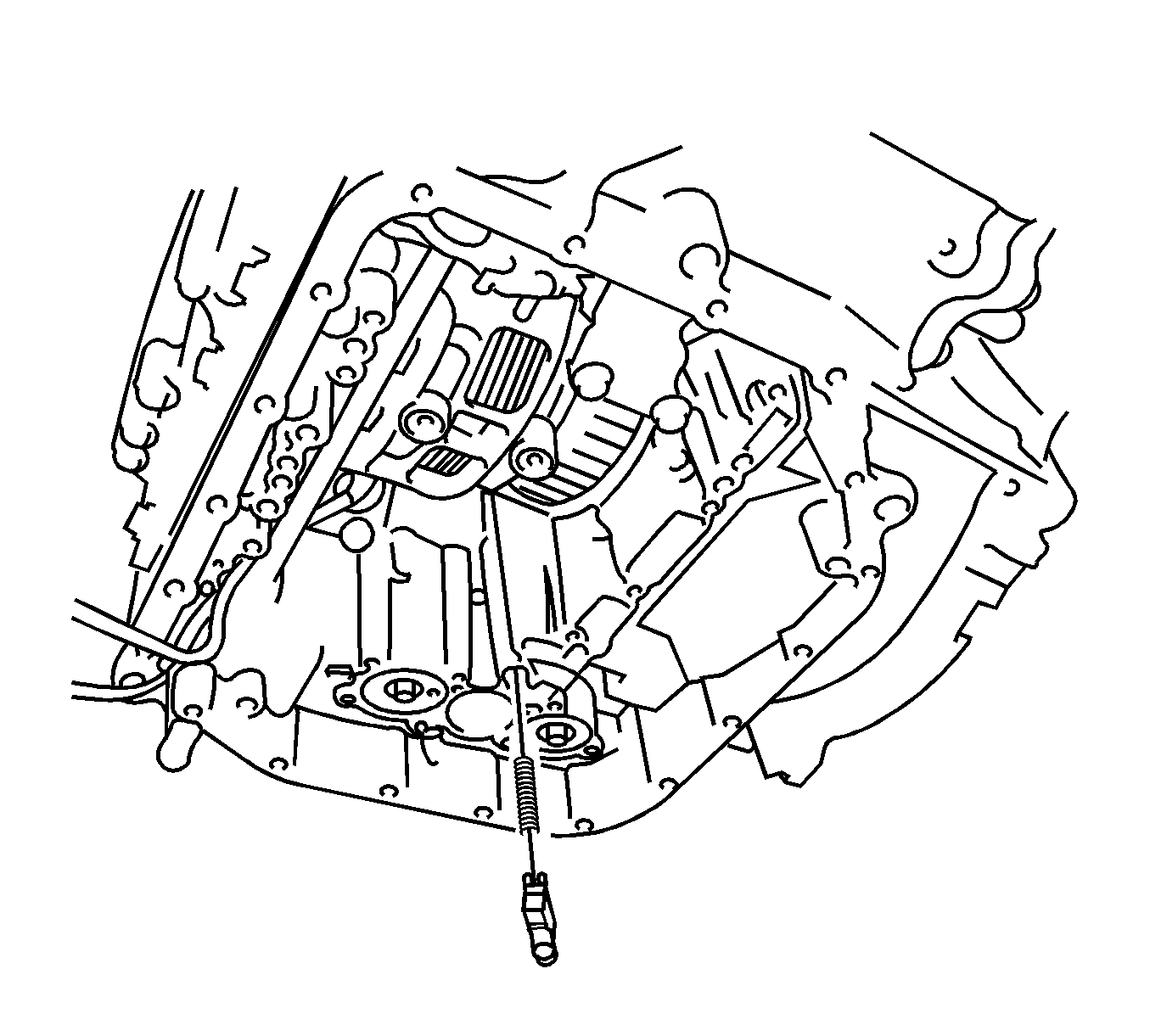

- Install the accumulator and check ball assembly.
- Align the groove of the manual valve with the pin of the manual valve lever.

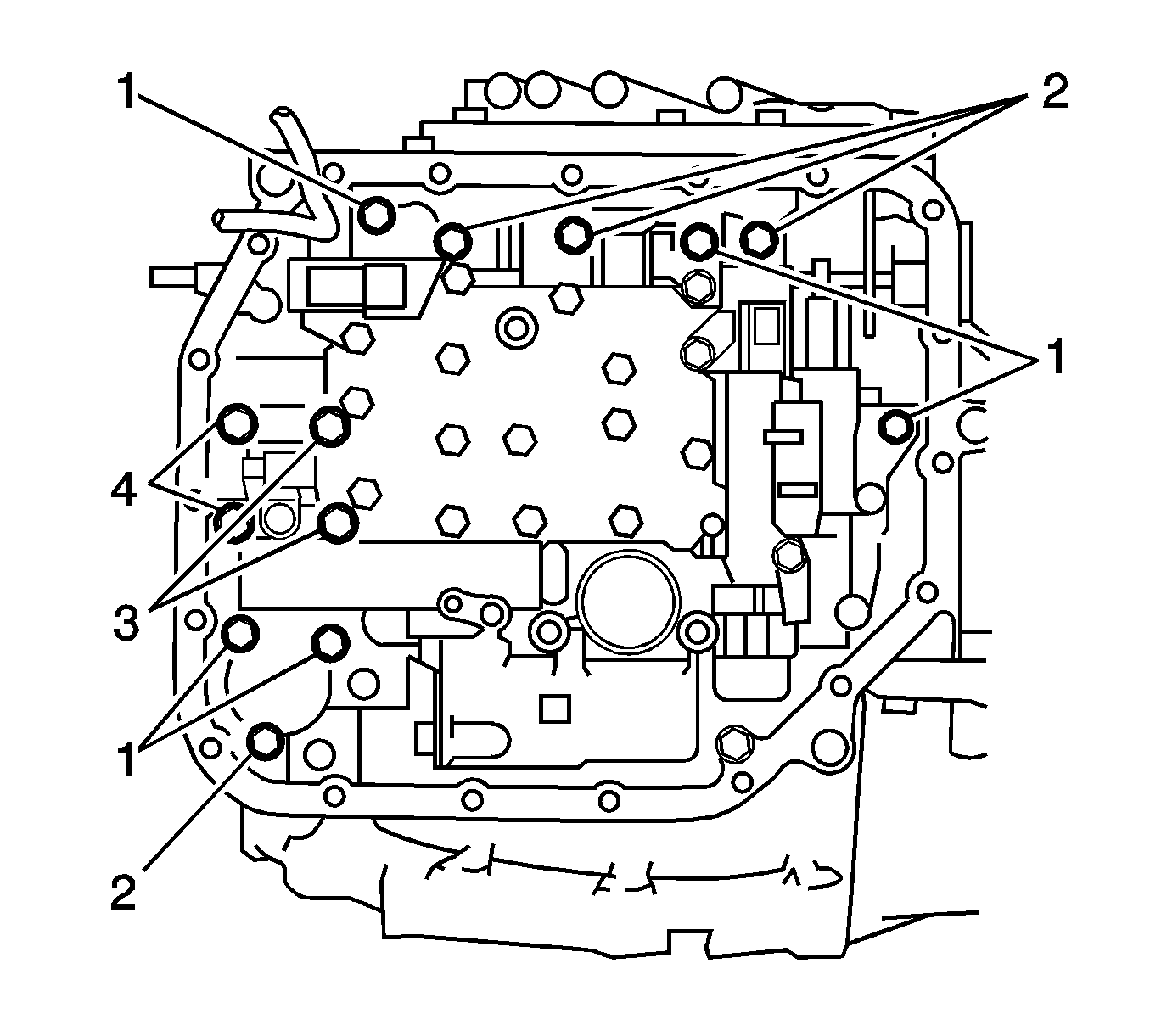

- Temporarily install the valve body with the 13 bolts.
- Length of Bolt (1) 32 mm (1.26 in)
- Length of Bolt (2) 22 mm (0.87 in)
- Length of Bolt (3) 55 mm (2.17 in)
- Length of Bolt (4) 45 mm (1.77 in)

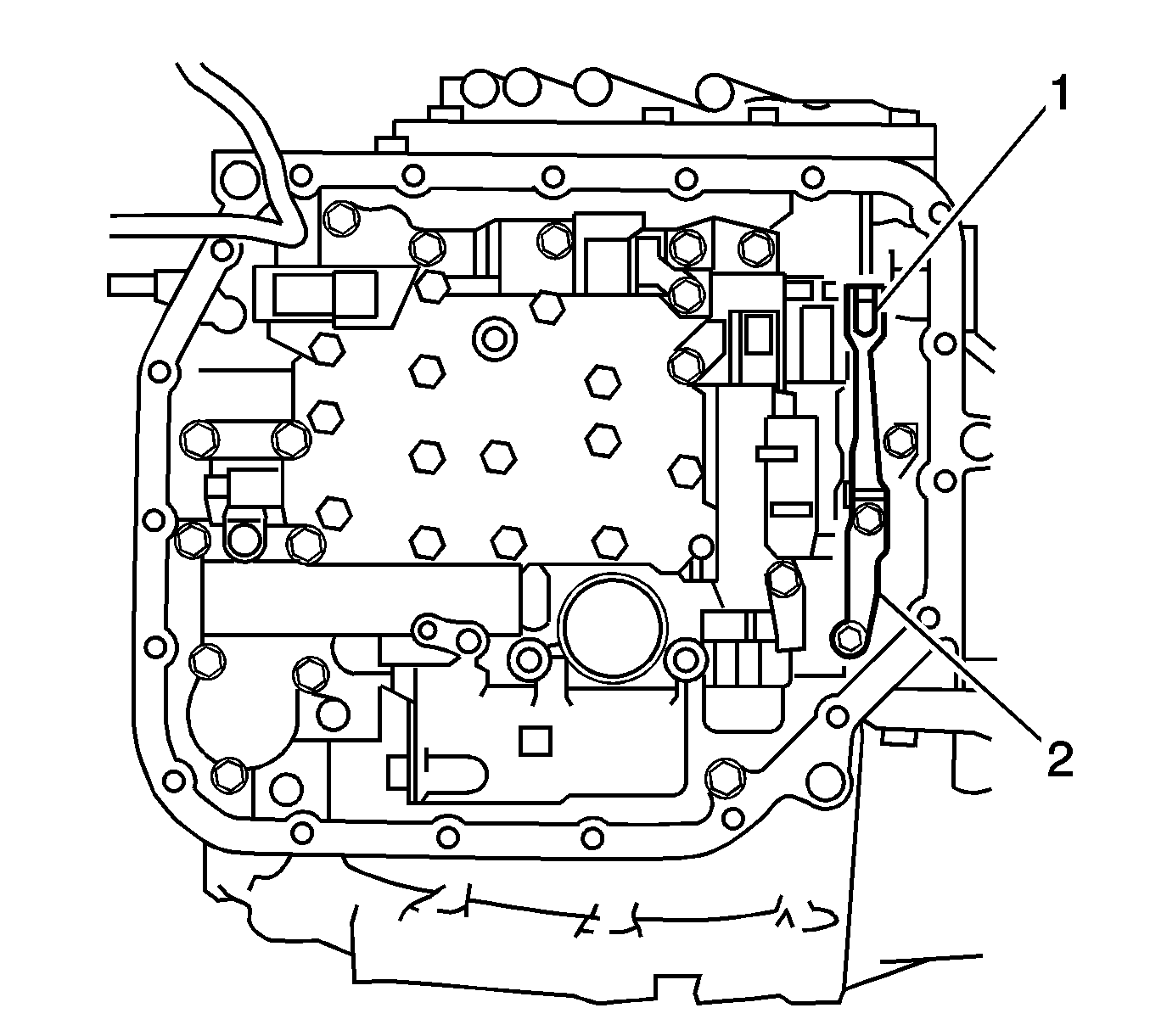

- Temporarily install the detent spring (1) and the cover (2).
- Make sure the manual valve lever contacts the center of the roller at the tip of the detent spring.
- Tighten the 15 valve body retaining bolts.
Tighten: Tighten the bolt to 11 N.m (97 lb in).
- Install the ATF temperature sensor, then the lock plate and bolt on the valve body.
Tighten: Tighten the bolt to 11 N.m (97 lb in).
- Connect the 5 solenoid electrical connectors.
- Install the fluid filter and pan. Refer to Automatic Transmission Fluid/Filter Replacement .
- Install the left engine splash shield. Refer to Splash Shield Replacement - Engine - Left in Body Front End.
- Lower the vehicle.
- Connect the negative (-) battery cable.
- Refill the transaxle as necessary.
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
