Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Ratchet Pawl, Hook Plunger And Pin

Courtesy of GENERAL MOTORS CORP.

Release the ratchet pawl.
Fully depress the plunger (4).
Apply the hook (2) to the pin (3).

Fig 2: Timing Chain Tensioner Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the timing chain tensioner into the timing chain cover. Secure the timing chain tensioner using 2 bolts (1).
Tighten: Tighten the timing chain tensioner bolts to 9 N.m (80 lb in).
Rotate the engine approximately 1 revolution in order to release the plunger on the timing chain tensioner.

Fig 3: Removing Spark Plugs

Courtesy of GENERAL MOTORS CORP.

Install the spark plugs.
Tighten: Tighten the spark plugs to 28 N.m (21 lb ft).

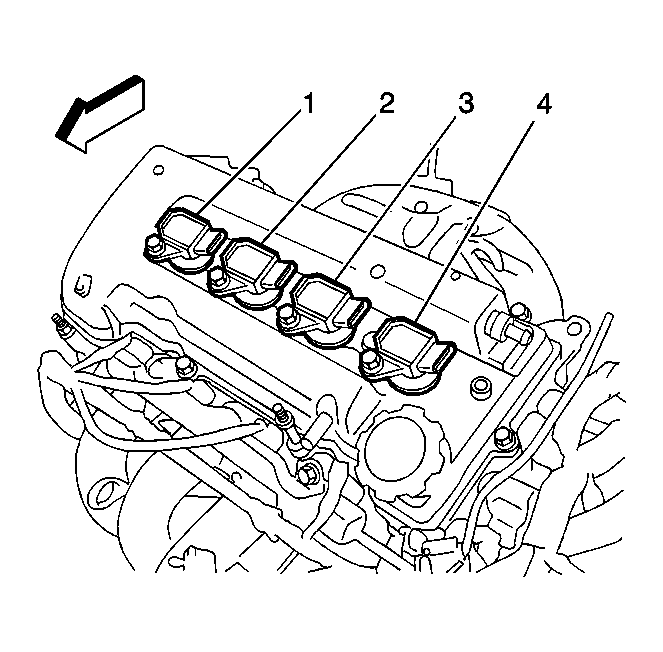

Fig 4: Identifying Ignition Coils

Courtesy of GENERAL MOTORS CORP.

Install the ignition coils (1, 2, 3, 4).
Install the engine cover.
Connect the negative battery cable.
Tighten: Tighten the battery cable bolt to 15 N.m (11 lb ft).
