Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

Disconnect the negative battery cable.

Fig 1: Repositioning Wiring Harness Clamp Bracket

Courtesy of GENERAL MOTORS CORP.

Remove the bolt, then reposition the wiring harness clamp bracket.

Fig 2: Repositioning A/C Hose Aside Removing Nuts

Courtesy of GENERAL MOTORS CORP.

Remove the 2 nuts, then reposition the A/C hose aside.

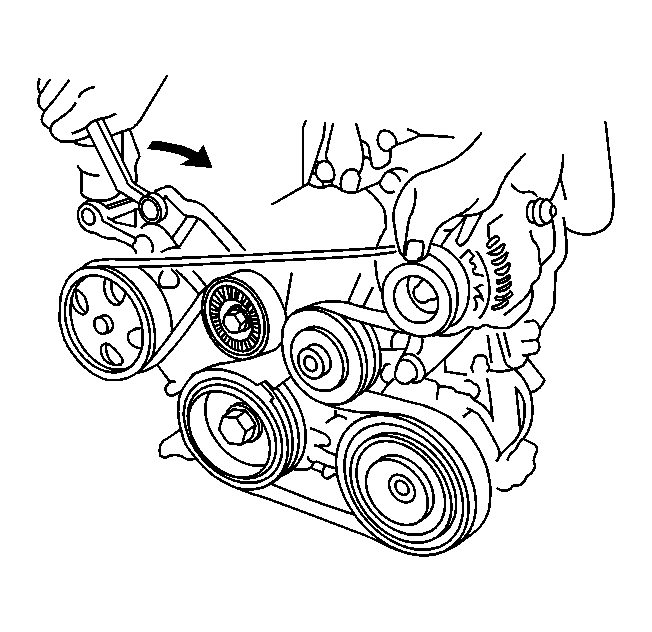

Fig 3: Identifying Serpentine Drive Belt Routing

Courtesy of GENERAL MOTORS CORP.

Use a wrench and rotate the belt tensioner clockwise.
With pressure applied to the wrench, and tension relieved from the drive belt, remove the accessory drive belt.
