Timing Chain Housing Removal

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

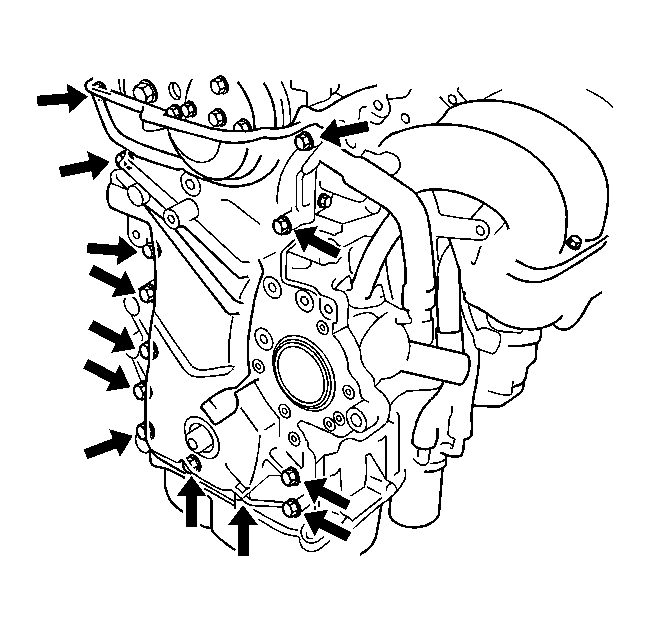

    Fig 1: Timing Chain Housing Bolts
    GM1257499Courtesy of GENERAL MOTORS CORP.
  1. Remove the 13 timing chain housing bolts.
  2. Gently pry the timing chain cover away from the cylinder block and remove the timing chain cover and gasket.
