Disassembled Views

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

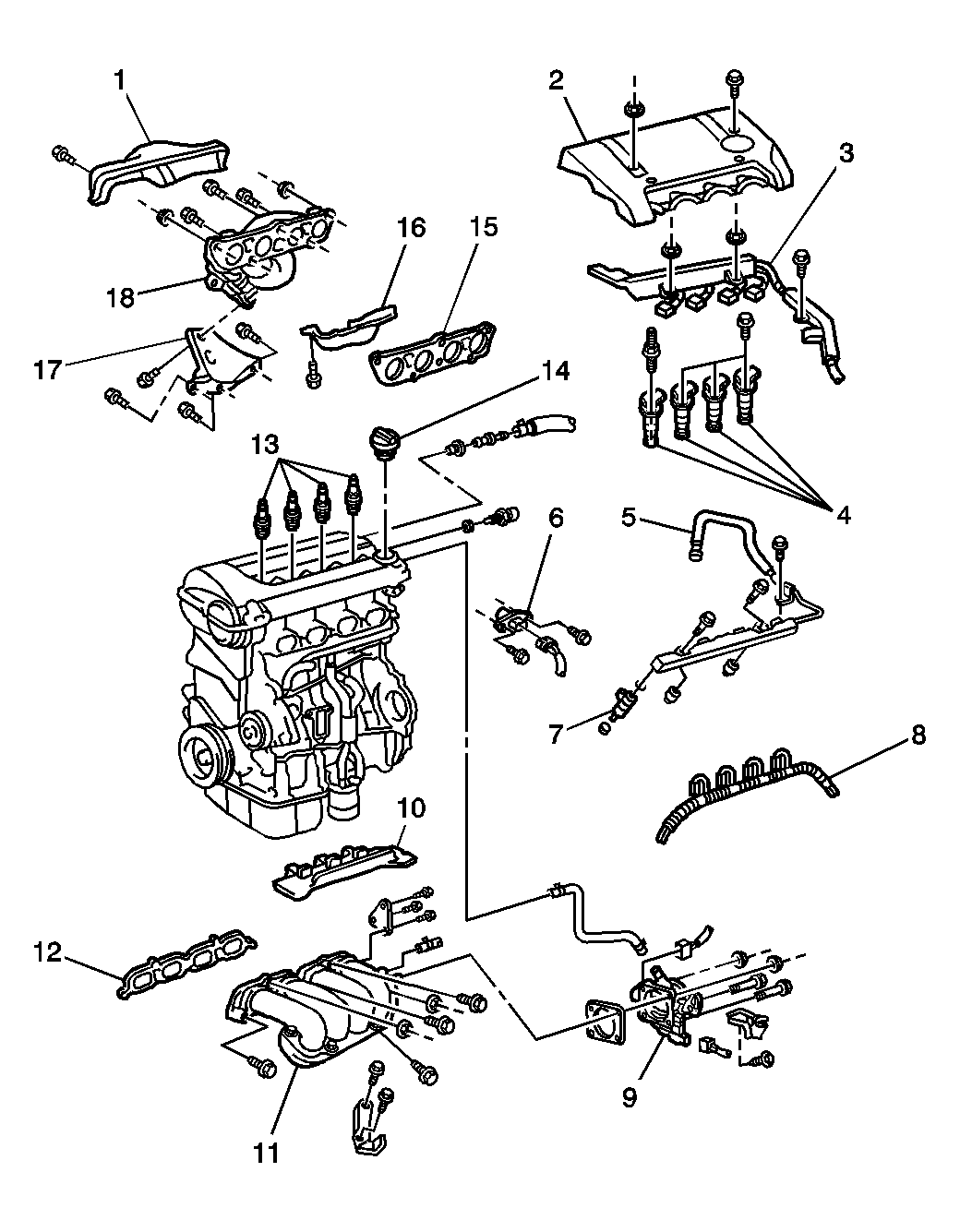

Fig 1: Intake and Exhaust Manifold Components View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Cover
2	Ignition Coil Harness
3	Ignition Coils
4	Fuel Line / Fuel Rail
5	Camshaft Sensor
6	Fuel Injector
7	Fuel Injector Harness
8	Throttle Body
9	Intake Manifold
10	Intake Manifold Gasket
11	Engine Mount
12	Oil Filler Cap
13	Spark Plug
14	Exhaust Manifold Gasket
15	Exhaust Manifold Bracket
16	Exhaust Manifold Inner Heat Shield
17	Exhaust Manifold
18	Exhaust Manifold Outer Heat Shield

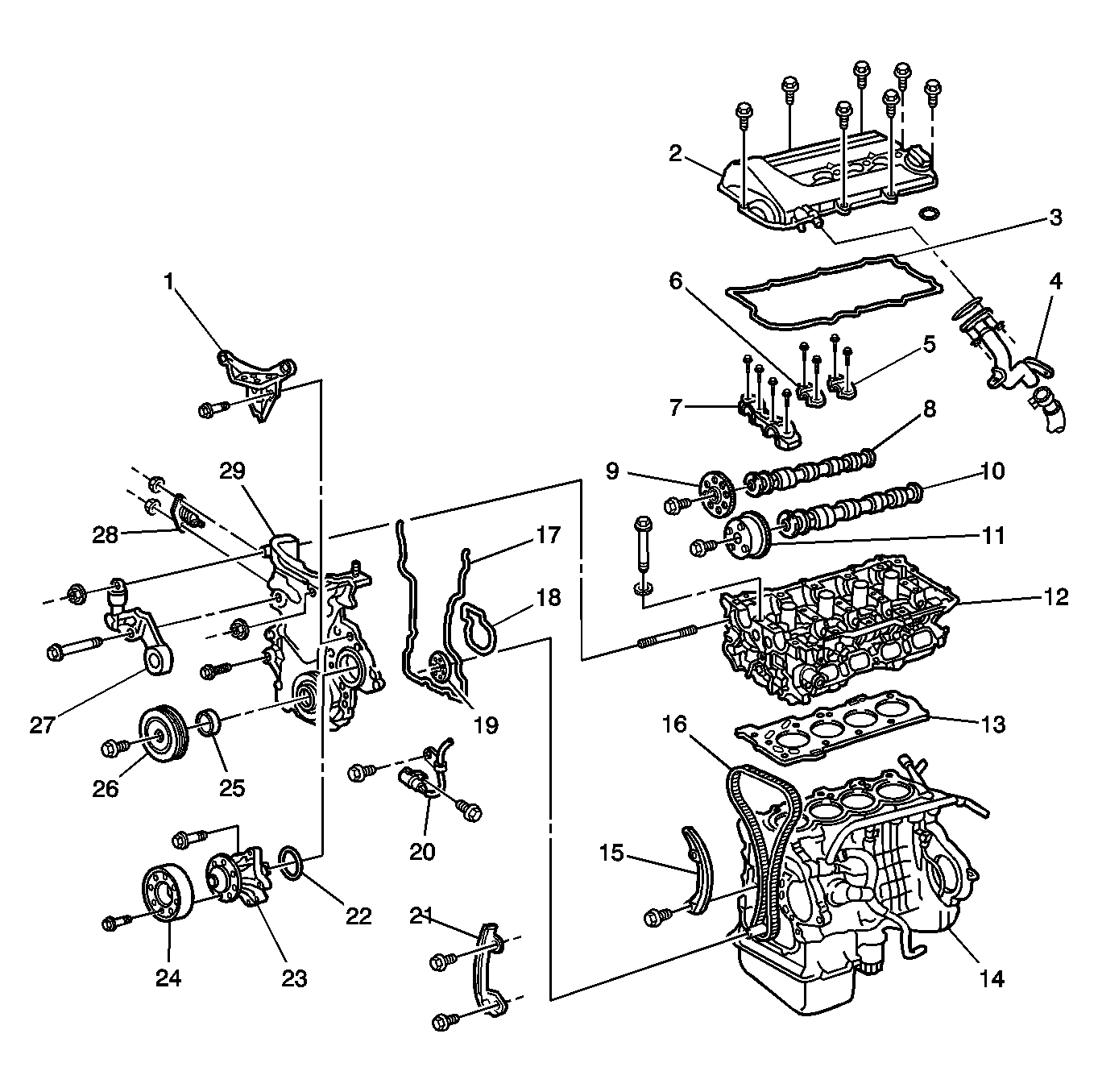

Fig 2: Cylinder Head and Components View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	RH Engine Mounting Bracket
2	Cylinder Head Cover
3	Gasket, Cylinder Head Cover
4	Ventilation Pipe
5	No. 2 Camshaft Bearing Cap
6	No. 3 Camshaft Bearing Cap
7	No. 1 Camshaft Bearing Cap
8	Exhaust Camshaft
9	Exhaust Camshaft Sprocket
10	Intake Camshaft
11	Intake Camshaft Sprocket
12	Cylinder Head
13	Cylinder Head Gasket
14	Cylinder Block
15	Timing Chain Tensioner Shoe
16	Timing Chain
17	Gasket, Timing Chain Cover
18	Gasket, Coolant Pump
19	Crank Sensor Reluctor
20	Crankshaft Position Sensor
21	Timing Chain Dampener
22	O-Ring, Coolant Pump
23	Coolant Pump
24	Coolant Pump Pulley
25	Crankshaft Front Oil Seal
26	Crankshaft Pulley
27	Drive Belt Tensioner
28	Timing Chain Tensioner
29	Timing Chain Cover

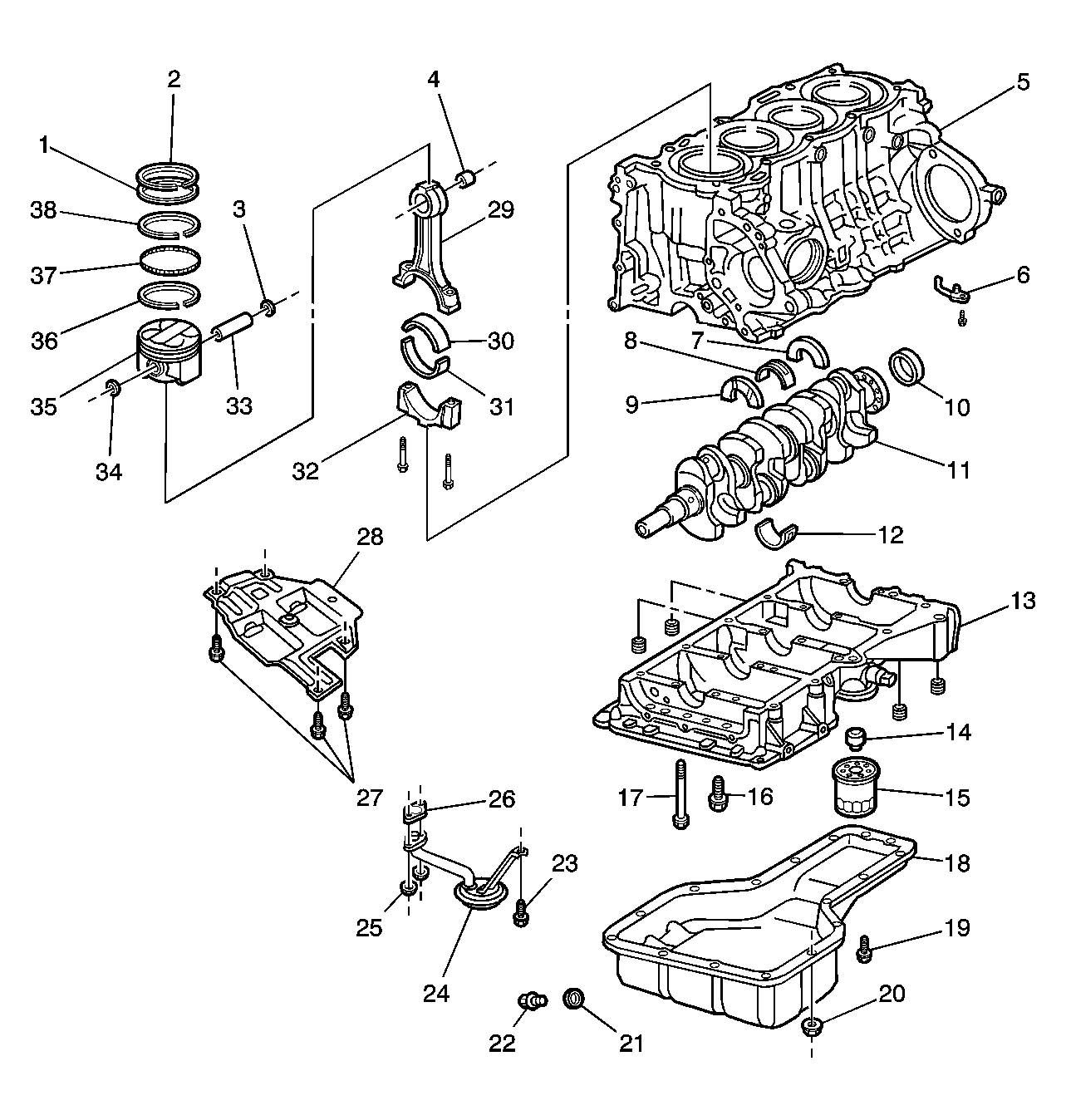

Fig 3: Cylinder Block, Connecting Rod and Piston Components View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Piston No.2 Compression Ring
2	Piston No. 2 Compression Ring
3	Piston Snap Ring
4	Connecting Rod Bushing
5	Cylinder Block
6	Oil Nozzle
7	Crankshaft Thrust Washer
8	Upper Main Bearing
9	Crankshaft Thrust Washer
10	Crankshaft Rear Oil Seal
11	Crankshaft
12	Lower Main Bearing
13	Lower Crankcase
14	Oil Filter Union
15	Oil Filter
16	Bolt, Lower Crankcase
17	Bolt, Lower Crankcase
18	Oil Pan
19	Bolt, Oil Pan
20	Nut, Oil Pan
21	Gasket, Drain Plug
22	Drain Plug
23	Bolt, Oil Strainer
24	Oil Strainer
25	Nut, Oil Strainer
26	Gasket, Oil Strainer
27	Bolt, Oil Pan Baffle
28	Oil Pan Baffle
29	Connecting Rod
30	Connecting Rod Bearing
31	Connecting Rod Bearing
32	Connecting Rod Cap
33	Piston Pin
34	Piston Snap Ring
35	Piston
36	Piston O-Ring (Side Rail)
37	Piston Oil Ring (Expander)
38	Piston O-Ring (Side Rail)

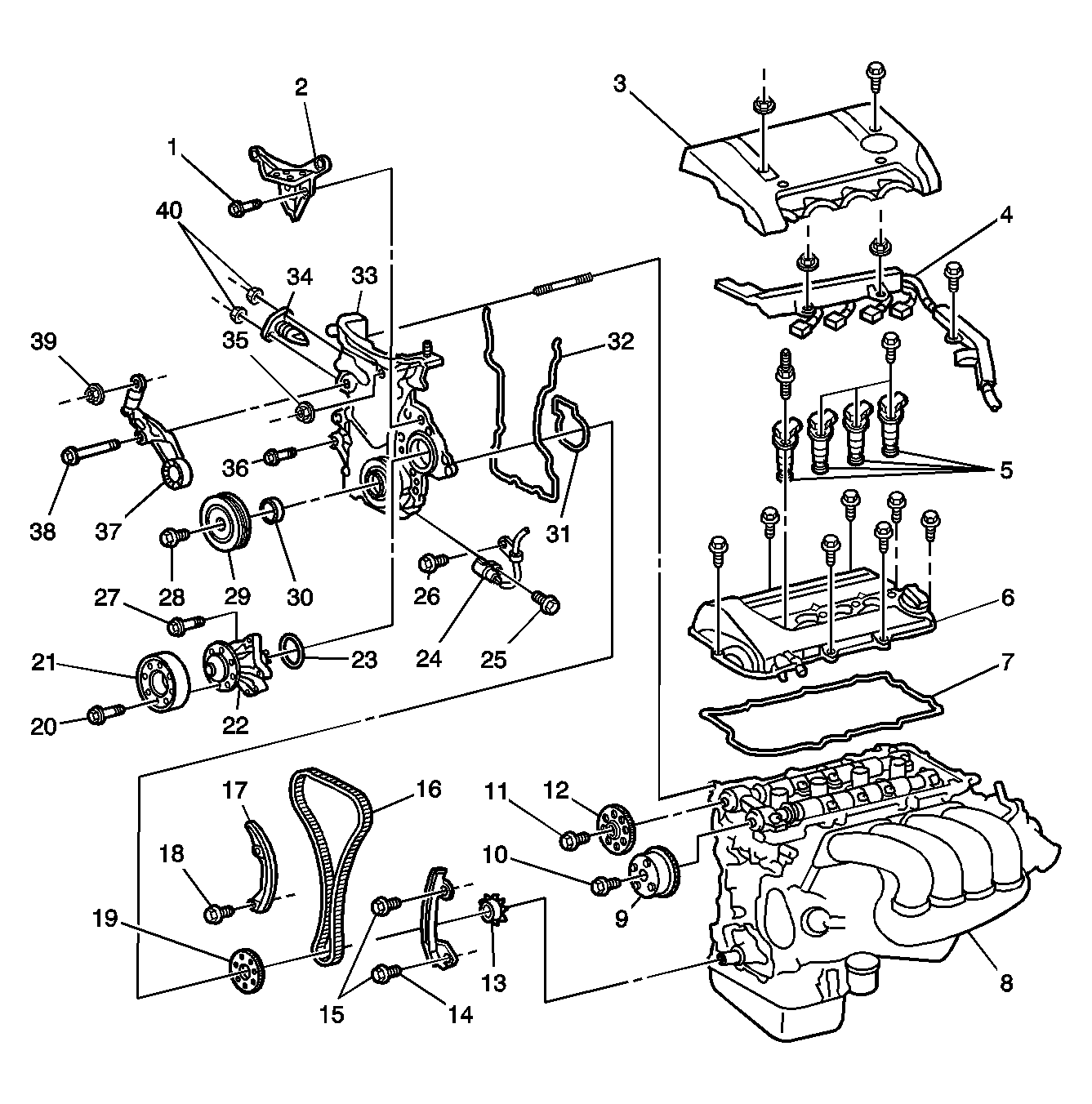

Fig 4: Timing Chain and Housing Components View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Bolt, Engine Mounting Bracket
2	RH Engine Mounting Bracket
3	Engine Cover
4	Ignition Coil Harness
5	Ignition Coils
6	Cylinder Head Cover
7	Gasket, Cylinder Head Cover
8	Cylinder Block
9	Intake Camshaft Sprocket (VVT)
10	Bolt, Camshaft Sprocket
11	Bolt, Camshaft Sprocket
12	Exhaust Camshaft Sprocket
13	Crankshaft Sprocket
14	Timing Chain Tensioner Shoe
15	Bolt, Timing Chain Tensioner Shoe
16	Timing Chain
17	Timing Chain Dampener
18	Bolt, Timing Chain Dampener
19	Crankshaft Sensor Reluctor
20	Bolt, Coolant Pump Pulley
21	Coolant Pump Pulley
22	Coolant Pump
23	O-Ring, Coolant Pump
24	Crankshaft Position Sensor
25	Bolt, Crankshaft Position Sensor
26	Bolt, Crankshaft Position Sensor Wire Harness
27	Bolt, Coolant Pump
28	Bolt, Crankshaft Pulley
29	Crankshaft Pulley
30	Crankshaft Front Oil Seal
31	Seal, Timing Chain Cover
32	Seal, Timing Chain Cover
33	Timing Chain Cover
34	Timing Chain Tensioner
35	Nut, Timing Chain Cover
36	Bolt, Timing Chain Cover
37	Drive Belt Tensioner
38	Bolt, Drive Belt Tensioner
39	Nut, Drive Belt Tensioner
40	Nut, Timing Chain Tensioner

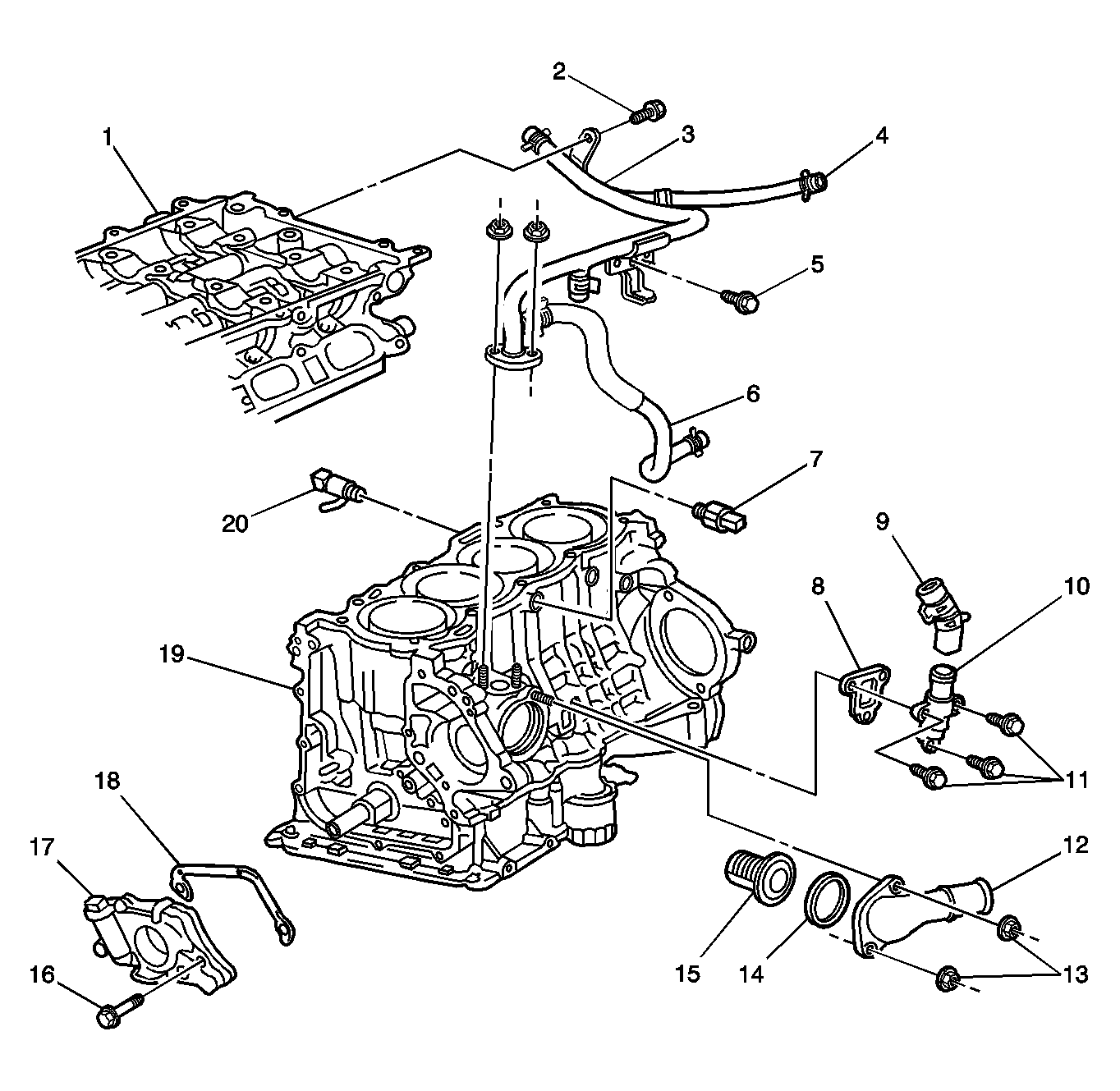

Fig 5: Oil and Cooling System Components View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cylinder Head
2	Bolt, Water Bypass Pipe Bracket
3	Water Bypass Hose
4	Water Bypass Hose
5	Bolt, Water Bypass Pipe
6	Water Bypass Hose
7	Knock Sensor
8	Gasket Ventilation Case
9	Ventilation Hose
10	Ventilation Case
11	Bolt, Ventilation Case
12	Thermostat Housing Inlet
13	Nut, Thermostat Housing Inlet
14	Gasket, Thermostat
15	Thermostat
16	Bolt, Oil Pump
17	Oil Pump
18	Gasket, Oil Pump
19	Cylinder Block
20	Drain Union (Engine Coolant)

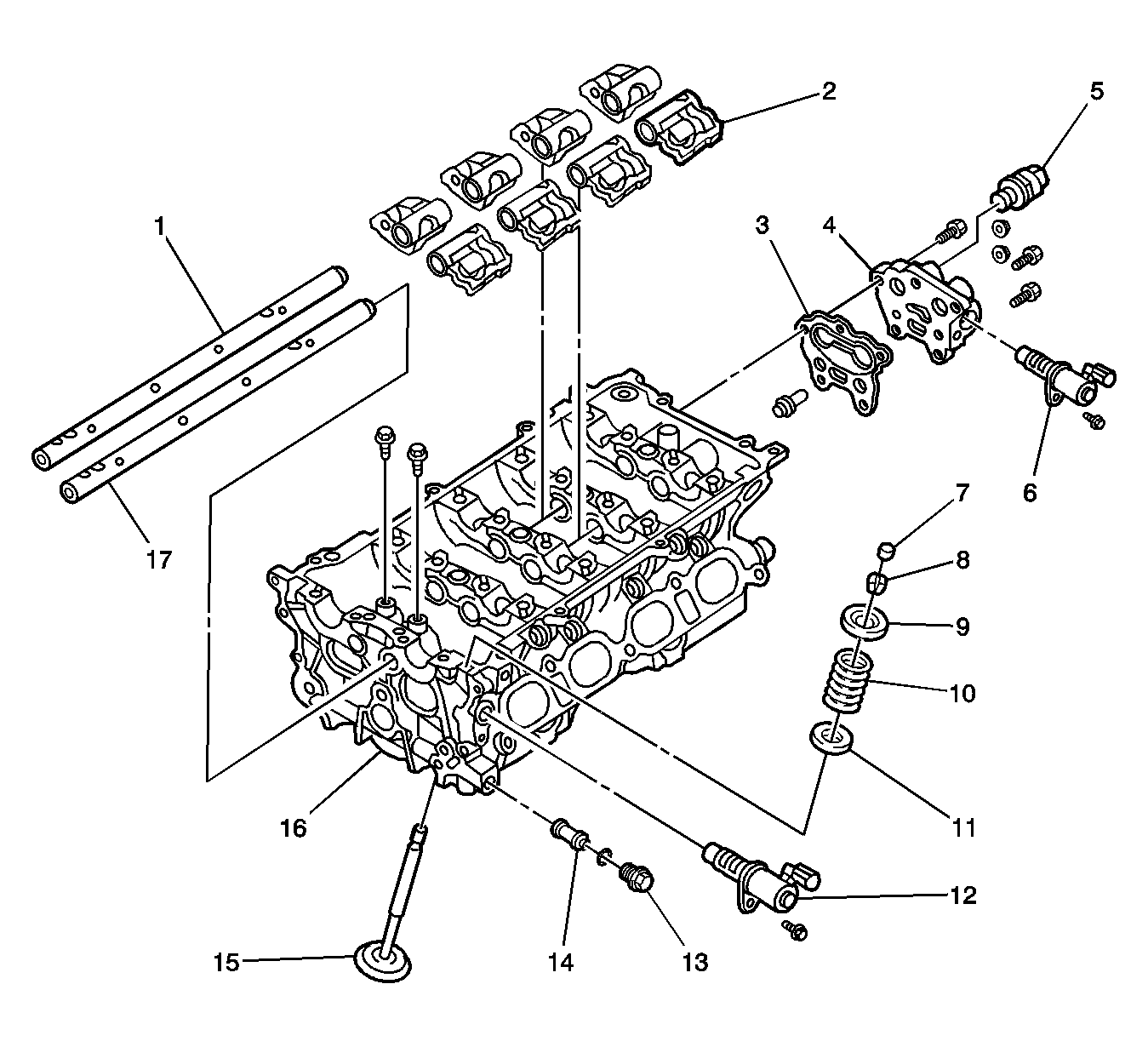

Fig 6: Valve Assembly Components View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Valve Rocker Shaft
2	Valve Rocker Arm
3	Gasket, Oil Control Valve Housing
4	Oil Control Valve Housing
5	Oil Pressure Switch
6	Oil Control Valve
7	Valve Shim
8	Valve Keeper
9	Valve Spring Retainer
10	Valve Spring
11	Valve Seat
12	Oil Control Valve
13	Gasket, Oil Filter
14	Oil Filter
15	Valve
16	Cylinder Head
17	Valve Rocker Shaft
