Installation Procedure
WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
- Install the flywheel to the crankshaft.

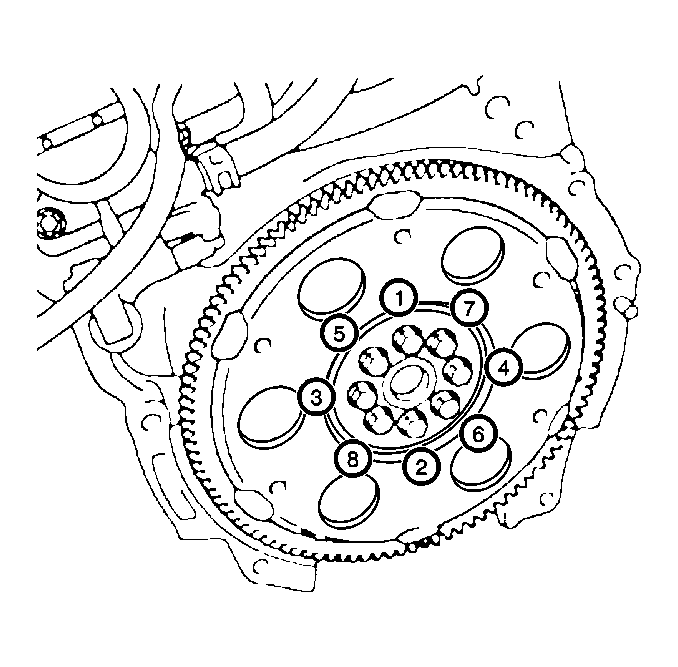

- Apply GM P/N 12345493 (Canadian P/N 10953488) or the equivalent, to the flywheel retaining bolt threads (1).
- For vehicles equipped with an Automatic Transmission, install the flywheel retaining bolts (1-8) to the crankshaft.
Tighten: Tighten the eight flywheel retaining bolts in sequence for Automatic Transmission to 83 N.m (61 lb ft).
- For vehicles equipped with a Manual Transmission, install the flywheel retaining bolts to the crankshaft.
Tighten: Tighten the eight flywheel retaining bolts in sequence for Manual Transmission to 49 N.m (36 lb ft). After the proper torque has been reached, use a J 36660-A and tighten the flywheel bolts an additional 90 degrees.
- If equipped with a manual transmission, install the clutch and pressure plate. Refer to Clutch Assembly Replacement in Clutch.
- Install the transaxle assembly. Refer to the following:
- Transaxle Replacement in Automatic Transmission - MU5 for all wheel drive automatic transaxle
- Transaxle Replacement in Automatic Transmission - MU4 for 4-speed automatic transaxle
- Transaxle Replacement in Manual Transmission - MK5 for 5-speed manual transaxle
- Transaxle Replacement in Manual Transmission - MTN for 6-speed manual transaxle
- Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure
in Engine Electrical.
Tighten: Tighten the battery cable bolt to 15 N.m (11 lb ft).
NOTE:
Apply the proper amount of the sealant to the fastener when assembling this component. Excessive use of the sealant can prohibit the component from being assembled properly or allow the fastener to loosen. A component or fastener that is not assembled properly can loosen or fall off leading to extensive engine damage.
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
