ABS Schematics

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

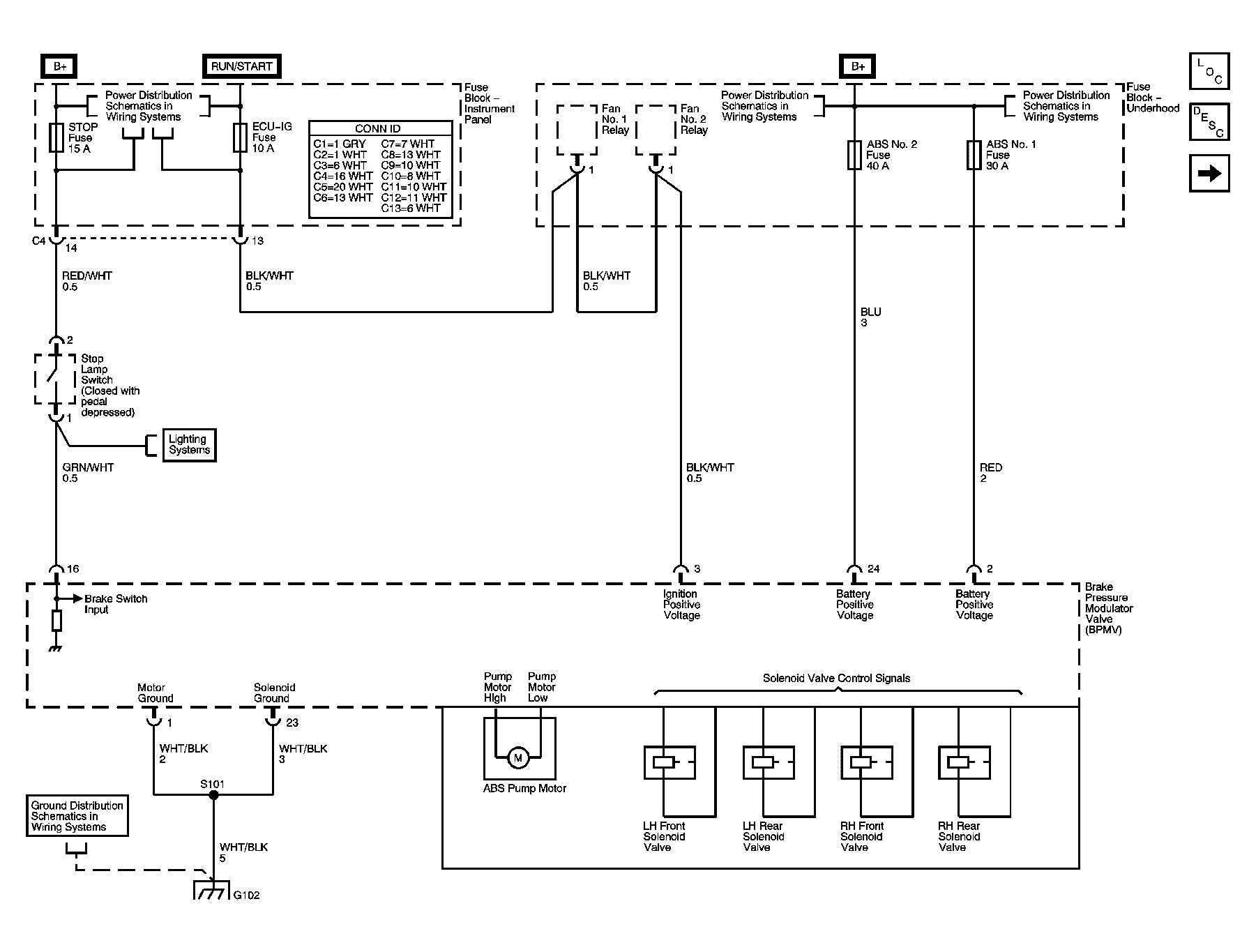

Fig 1: Brake Pressure Modulator Valve (BPMV) Schematic

Courtesy of GENERAL MOTORS CORP.

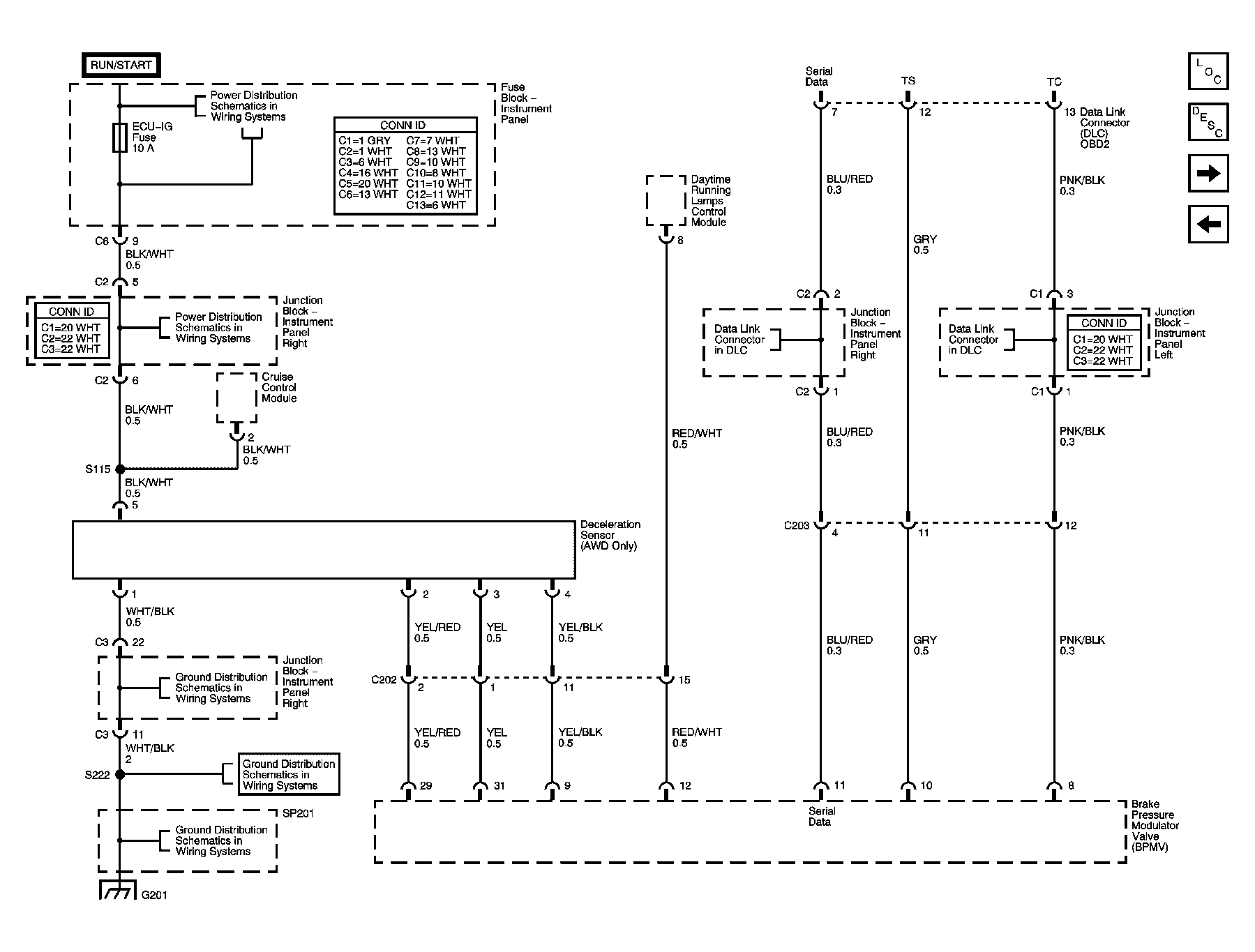

Fig 2: Deceleration Sensor, BPMV, Data Link Connector (DLC) Schematic

Courtesy of GENERAL MOTORS CORP.

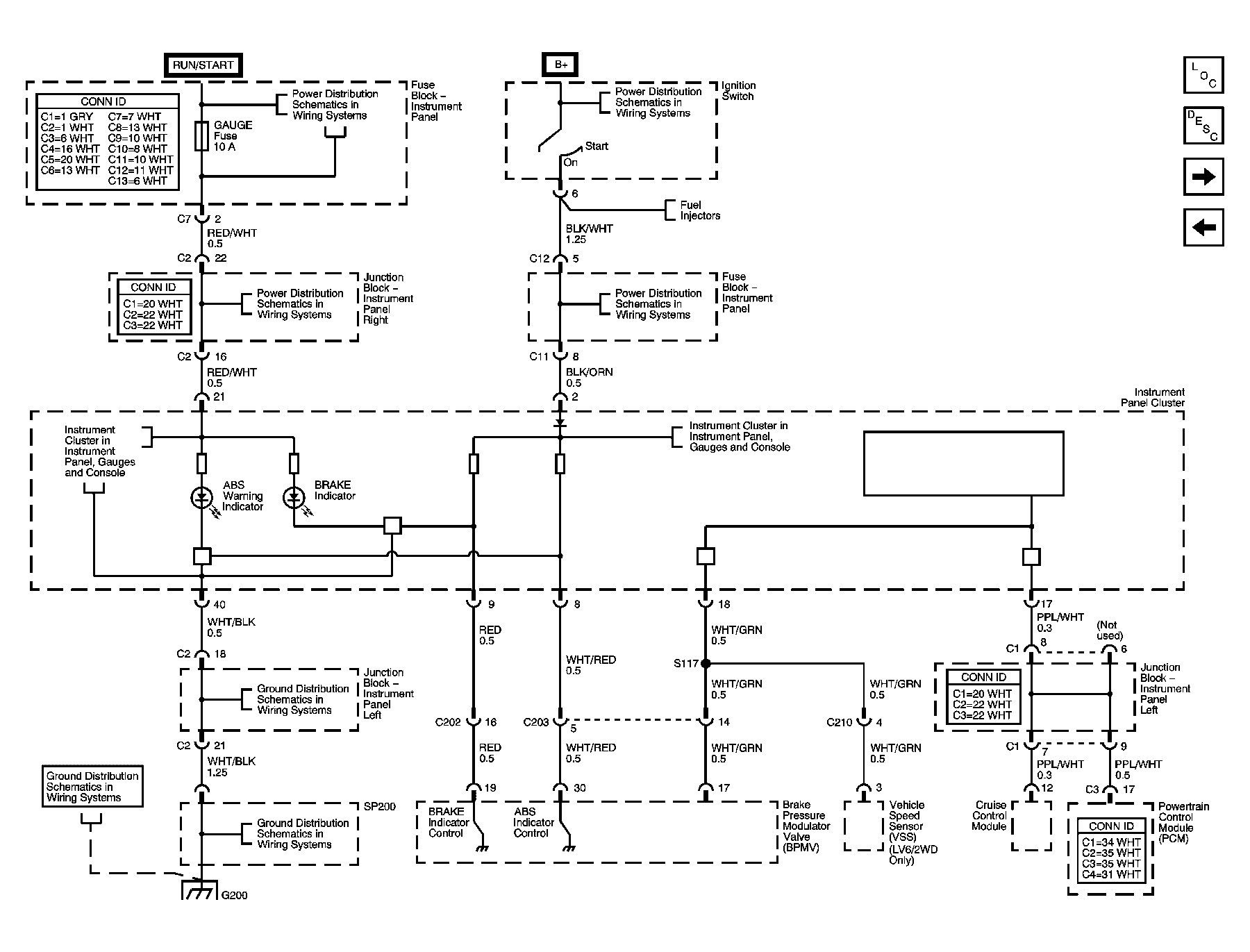

Fig 3: Brake Indicator and Control, ABS Indicator and Control Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.
