Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

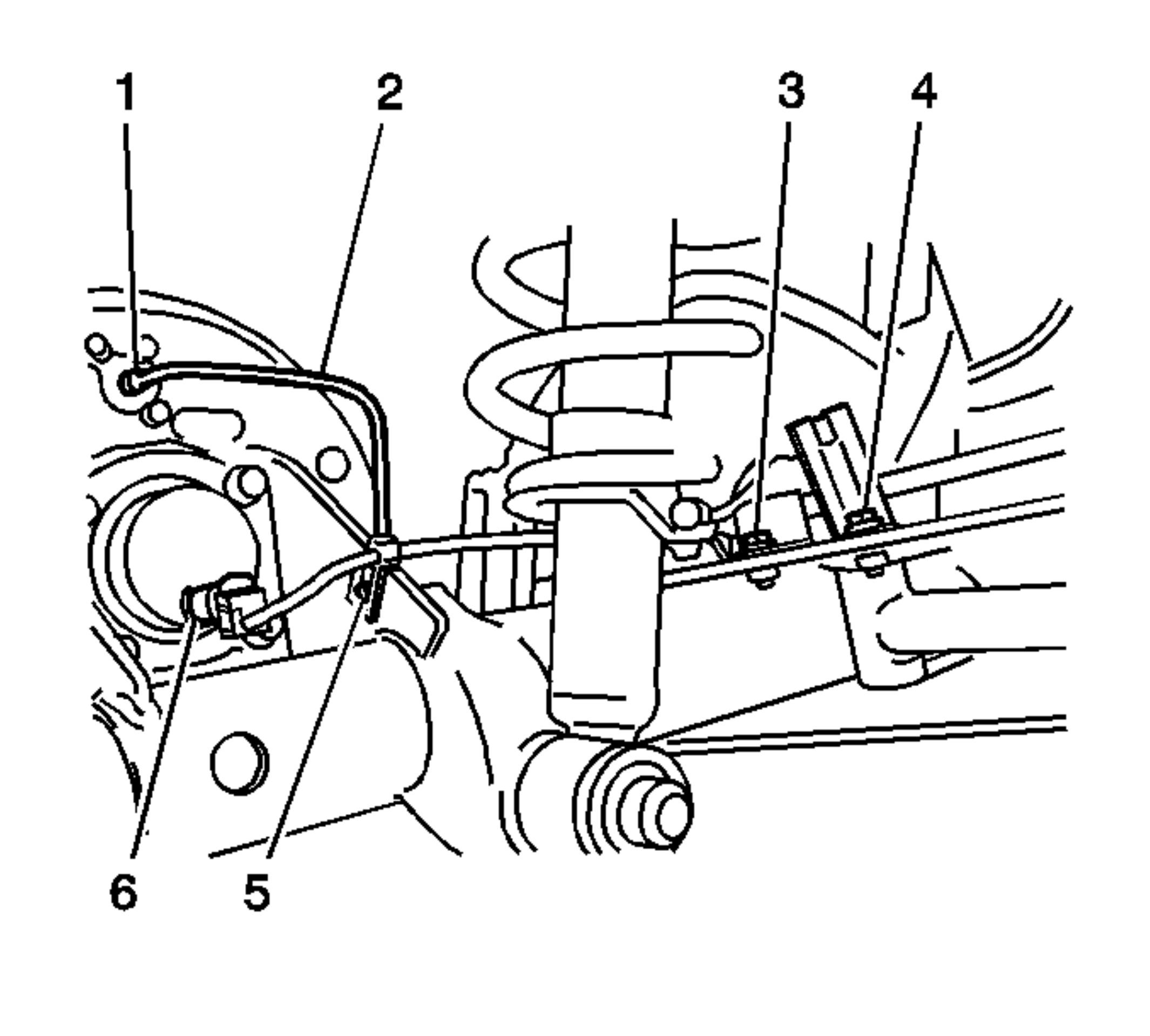

    Fig 1: Speed Sensor Components
    GM829894Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The wheel speed sensor is serviceable only as an assembly. Do NOT attempt to service the sensor harness pigtail.
  1. Disconnect the electrical connector (6) from the wheel speed sensor.
  2. Remove the rear axle hub and bearing assembly. Refer to Wheel Bearing/Hub Replacement - Rear (FWD) or Wheel Bearing/Hub Replacement - Rear (AWD) in Rear Suspension.
    3. Fig 2: Removing Wheel Speed Sensor From Axle Hub
    GM840299Courtesy of GENERAL MOTORS CORP.
  3. Remove the wheel speed sensor from the rear axle hub.
