System Operation: Notes
WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

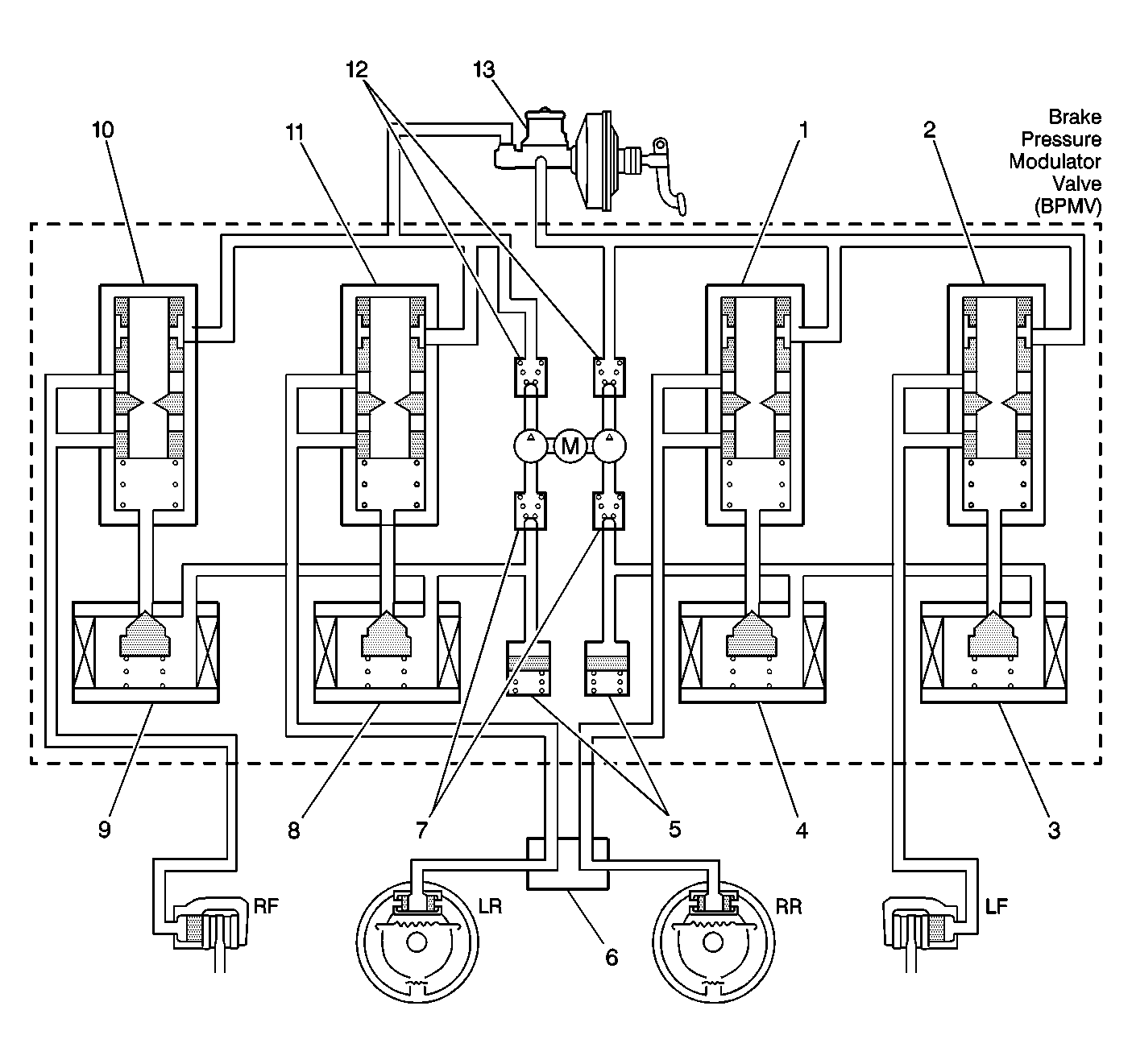

| Callout | Component Name |
|---|---|
| 1 | Right Rear Flow Control Valve |
| 2 | Left Front Flow Control Valve |
| 3 | Left Front ABS Solenoid Valve |
| 4 | Right Rear ABS Solenoid Valve |
| 5 | Buffer Chamber |
| 6 | Proportioning Valve |
| 7 | Pump Inlet Check Valves |
| 8 | Left Rear ABS Solenoid Valve |
| 9 | Right Front ABS Solenoid Valve |
| 10 | Right Front Flow Control Valve |
| 11 | Left Rear Flow Control Valve |
| 12 | Pump Outlet Check Valves |
| 13 | Master Cylinder |
