Removal Procedure
WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Before servicing fuel system connections, relieve the fuel system pressure. Refer to Fuel Pressure Relief Procedure (FWD)Fuel Pressure Relief Procedure (AWD)
.
- Grasp both sides of the fitting. Twist the female connector 1/4 turn in each direction in order to loosen any dirt within the fitting.

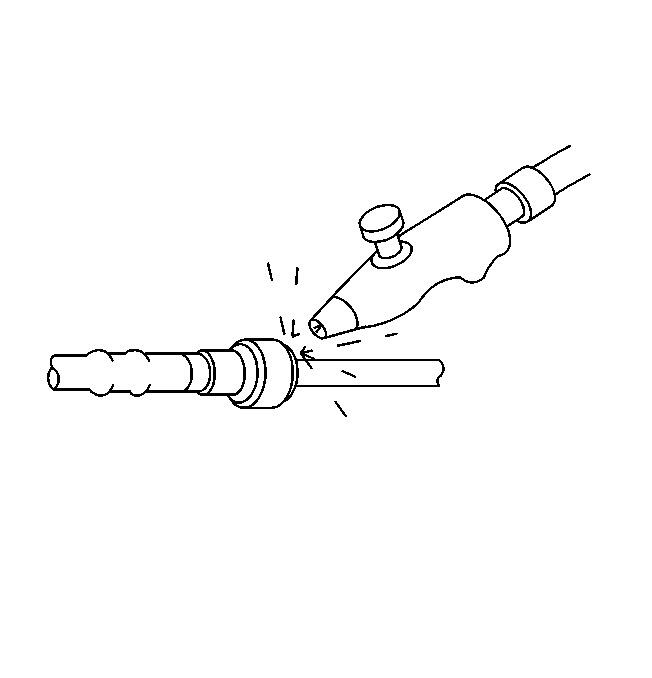

- Blow any dirt out of the fitting using compressed air.

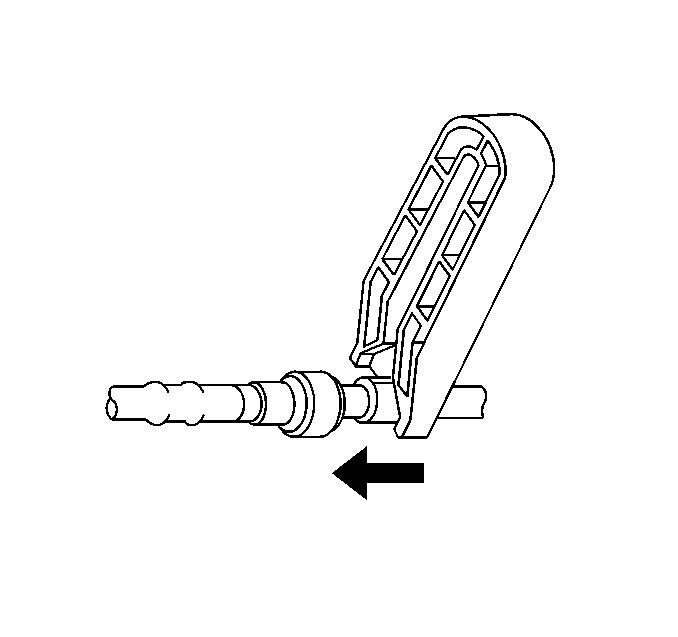

- Insert the J 43178 tool into the female connector. See Special Tools and Equipment . Push the tool inward in order to release the locking tabs.

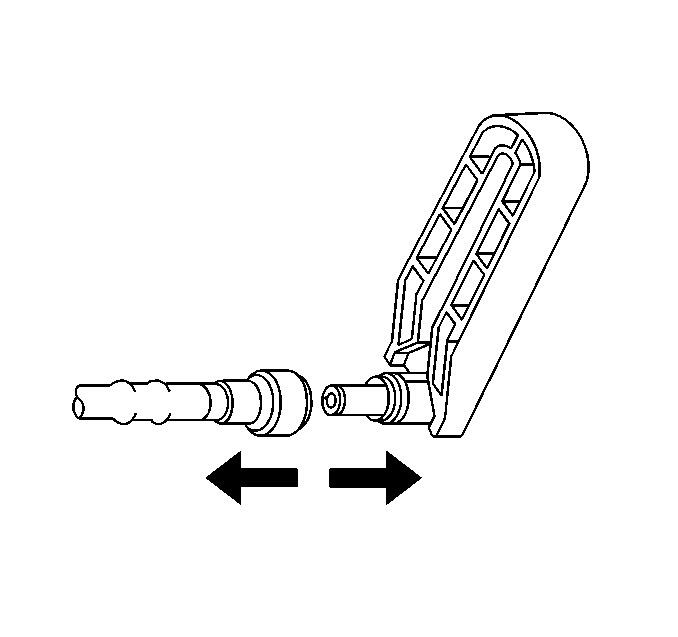

- Pull the connection apart.
- Using a clean shop towel, wipe off the male pipe end.
- Inspect both ends of the fitting for dirt and for burrs. Clean or replace the components if necessary.
CAUTION:
Wear safety glasses when using compressed air, as flying dirt particles may cause eye injury.
NOTE:
If necessary, remove rust or burrs from the fuel pipes with an emery cloth. Use a radial motion with the fuel pipe end in order to prevent damage to the O-ring sealing surface. Use a clean shop towel in order to wipe off the male tube ends. Inspect all the connections for dirt and burrs. Clean or replace the components and assemblies as required.
