Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Engine Top Cover, Plastic Retainers And Fasteners
    GM856569Courtesy of GENERAL MOTORS CORP.
  1. Remove the 2 fasteners.
  2. Remove the 2 plastic retainers.
  3. Remove the engine cover (1) from the engine.

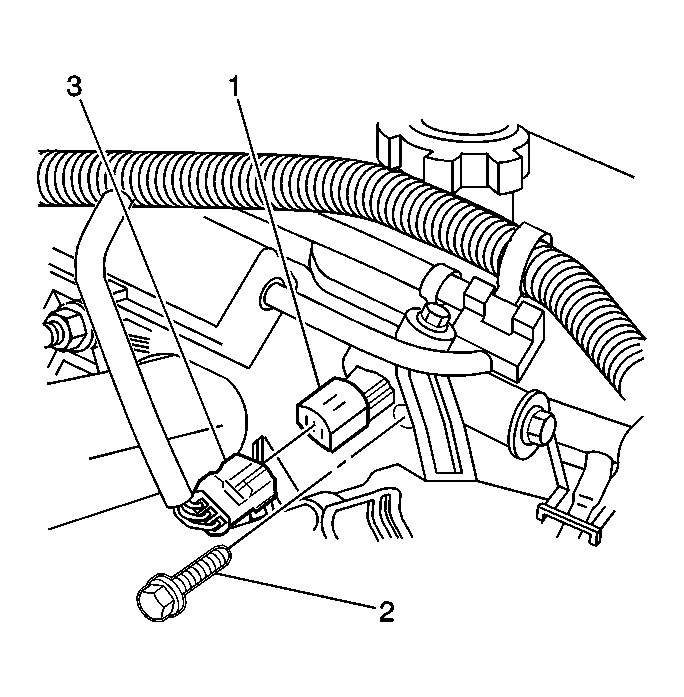

    4. Fig 2: CMP Sensor, Hold-Down Bolt And Electrical Connector
    GM181686Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the CMP electrical connector (3).
  5. Remove the 1 CMP sensor hold-down bolt (2).
  6. Remove the CMP sensor (1) from the cylinder head.
