Wiper/Washer System Schematics

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

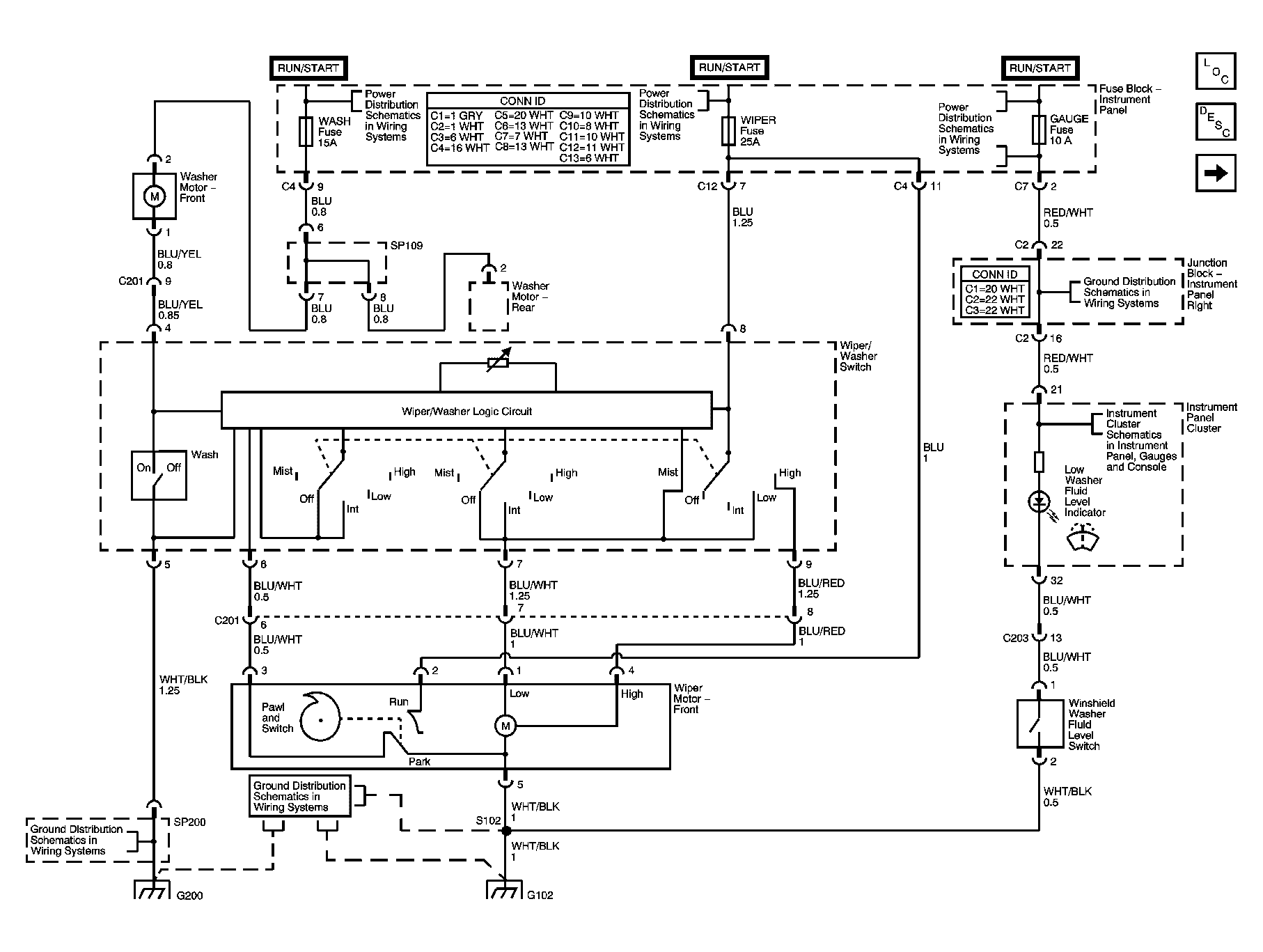

Fig 1: Front Wiper System Schematic

Courtesy of GENERAL MOTORS CORP.

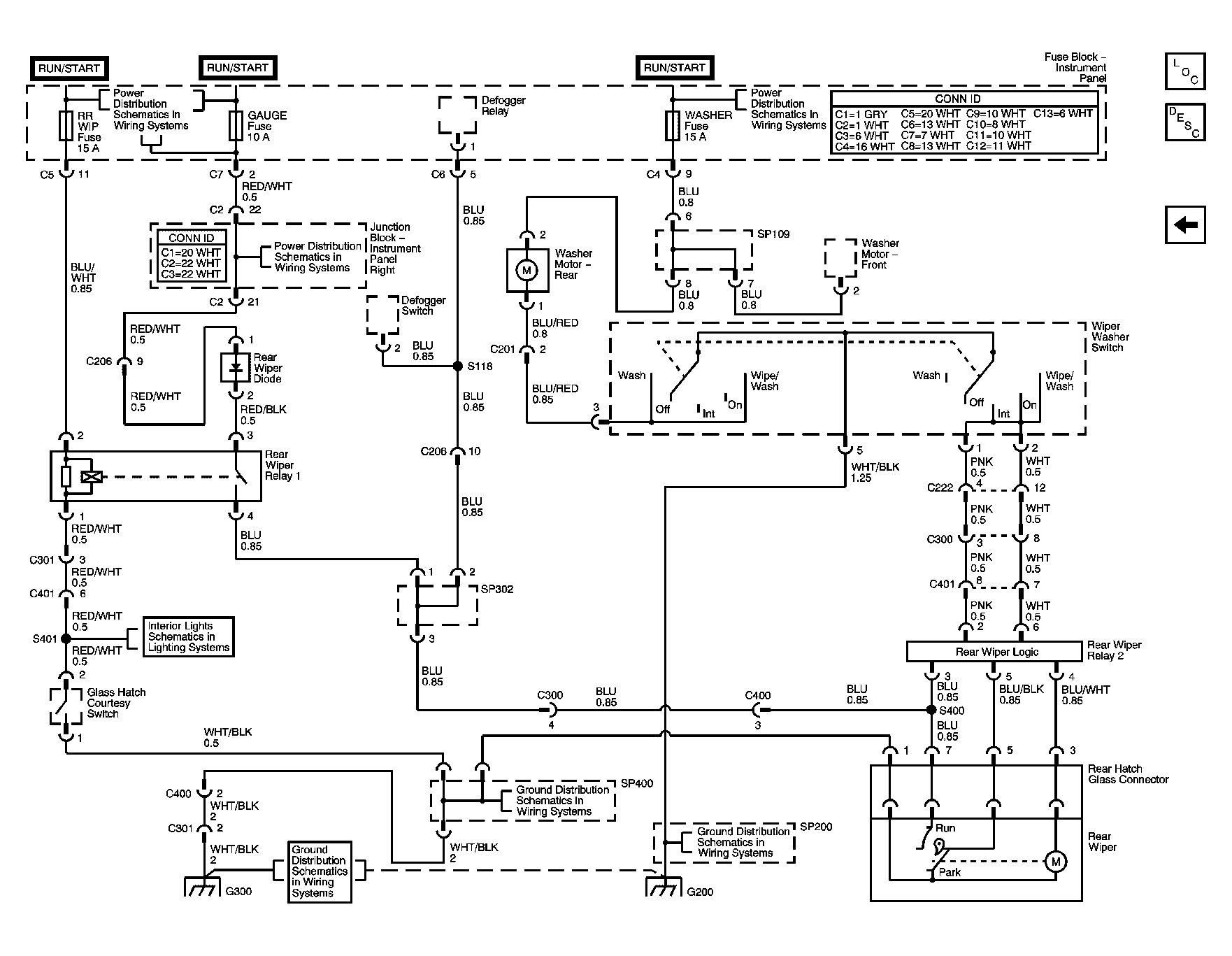

Fig 2: Rear Wiper System Schematic

Courtesy of GENERAL MOTORS CORP.
