Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

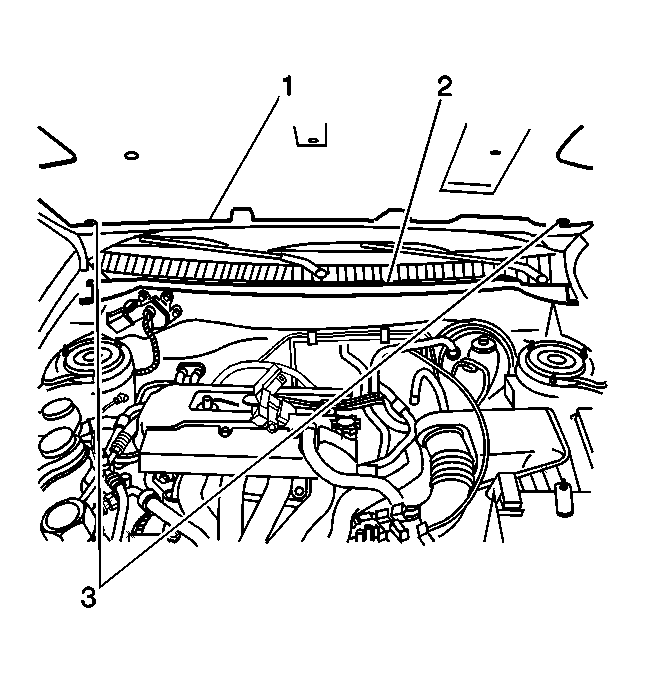

Fig 1: Loosen/Tighten Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

Raise and suitably support the hood.
Install protective covers over the front fenders (2) to prevent paint damage.

Fig 2: Hood Components

Courtesy of GENERAL MOTORS CORP.

Remove the 2 plastic retainers (3) at the rear of the hood insulator (1).
Fold back the hood insulator (1) in order to access the nozzles and supply hose.

Fig 3: Windshield Washer Nozzles And Supply Hose

Courtesy of GENERAL MOTORS CORP.

Remove the windshield washer nozzles (2) and supply hose (1) from the hood (3).

Fig 4: Loosen/Tighten Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

Mark the position of the hood hinges on the hood to ease assembly.
Remove the 2 mounting bolts which secure the hood (1) to each of the hood hinges (3).
Remove the hood with the aid of a helper.
