Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Body Panel
    GM431898Courtesy of GENERAL MOTORS CORP.
    NOTE: When removing body panels, apply tape to corners of panel and adjacent surfaces to help prevent paint damage.
  1. Raise and support the hood.
  2. Remove the right fender flare. Refer to Flare Replacement - Front Fender .
  3. Remove the right wheelhouse panel (1). Refer to Wheelhouse Panel Replacement  .
  4. Remove the front fascia. Refer to Fascia Replacement - Front Bumper in Bumpers.
  5. Remove the right rocker molding. Refer to Molding Replacement - Rocker Panel (Production Molding)Molding Replacement - Rocker Panel (Accessory Molding) .
  6. Remove the right head lamp assembly. Refer to Headlamp Assembly or Headlamp Bulb Replacement in Lighting Systems.
  7. Remove hood assist rod. Refer to Hood Hold-Open Rod Replacement  .
  8. Remove right rear inner fender splash guard.
    9. Fig 2: Remove/Install Front Fender
    GM239358Courtesy of GENERAL MOTORS CORP.
  9. Remove the right front fender (1) to rocker panel bolt.
    10. Fig 3: Front Fender Door Jam Bolts
    GM239359Courtesy of GENERAL MOTORS CORP.
  10. Remove the 2 right front fender to door jamb (3) bolts.

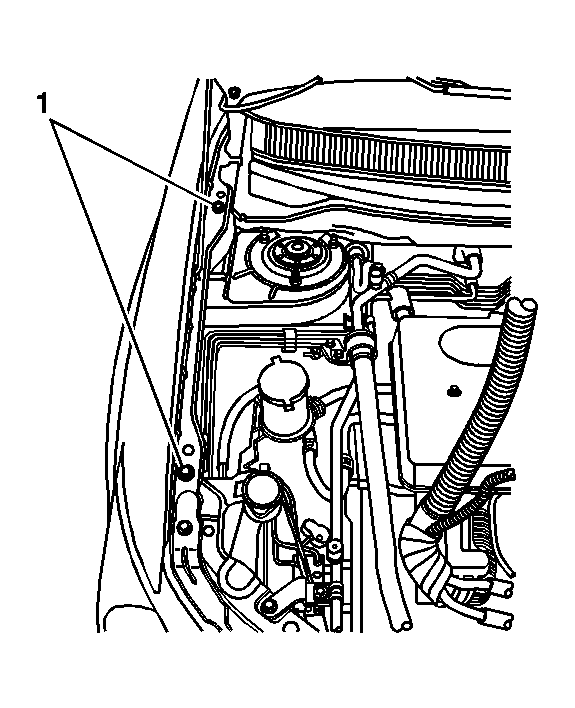

    11. Fig 4: Top Front Fender Bolts
    GM828397Courtesy of GENERAL MOTORS CORP.
  11. Remove the top 2 right front fender bolts (1).
    12. Fig 5: Left Front Fender Bolt
    GM828404Courtesy of GENERAL MOTORS CORP.
  12. Remove the 1 bolt (2) from the front of the right front fender.
  13. Remove the right front fender (1) from the vehicle.
