Theft Deterrent System Schematics

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

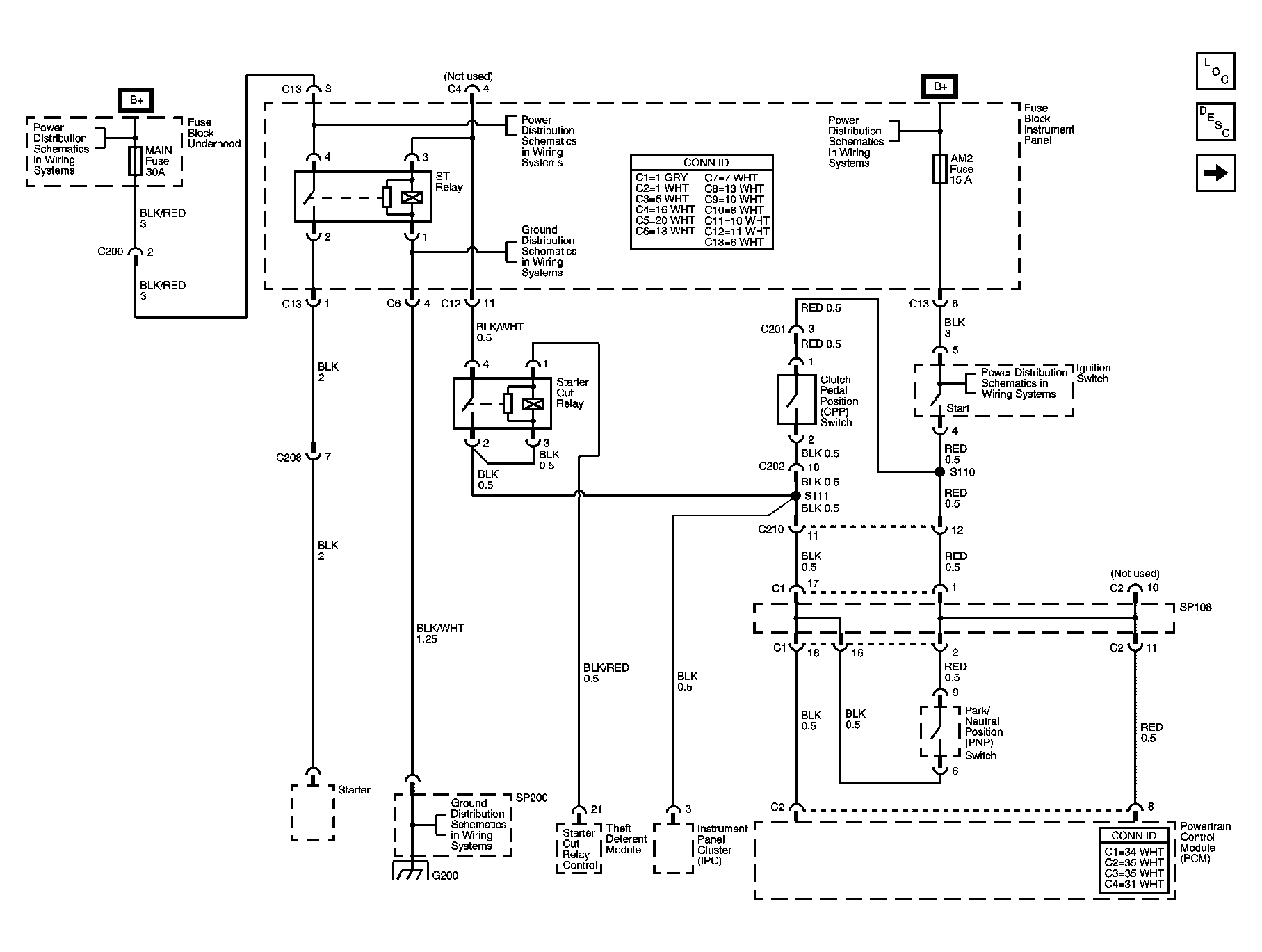

Fig 1: Start Relay, Starter Cut Relay, Theft Deterrent Module, Powertrain Control Module (PCM) Schematic

Courtesy of GENERAL MOTORS CORP.

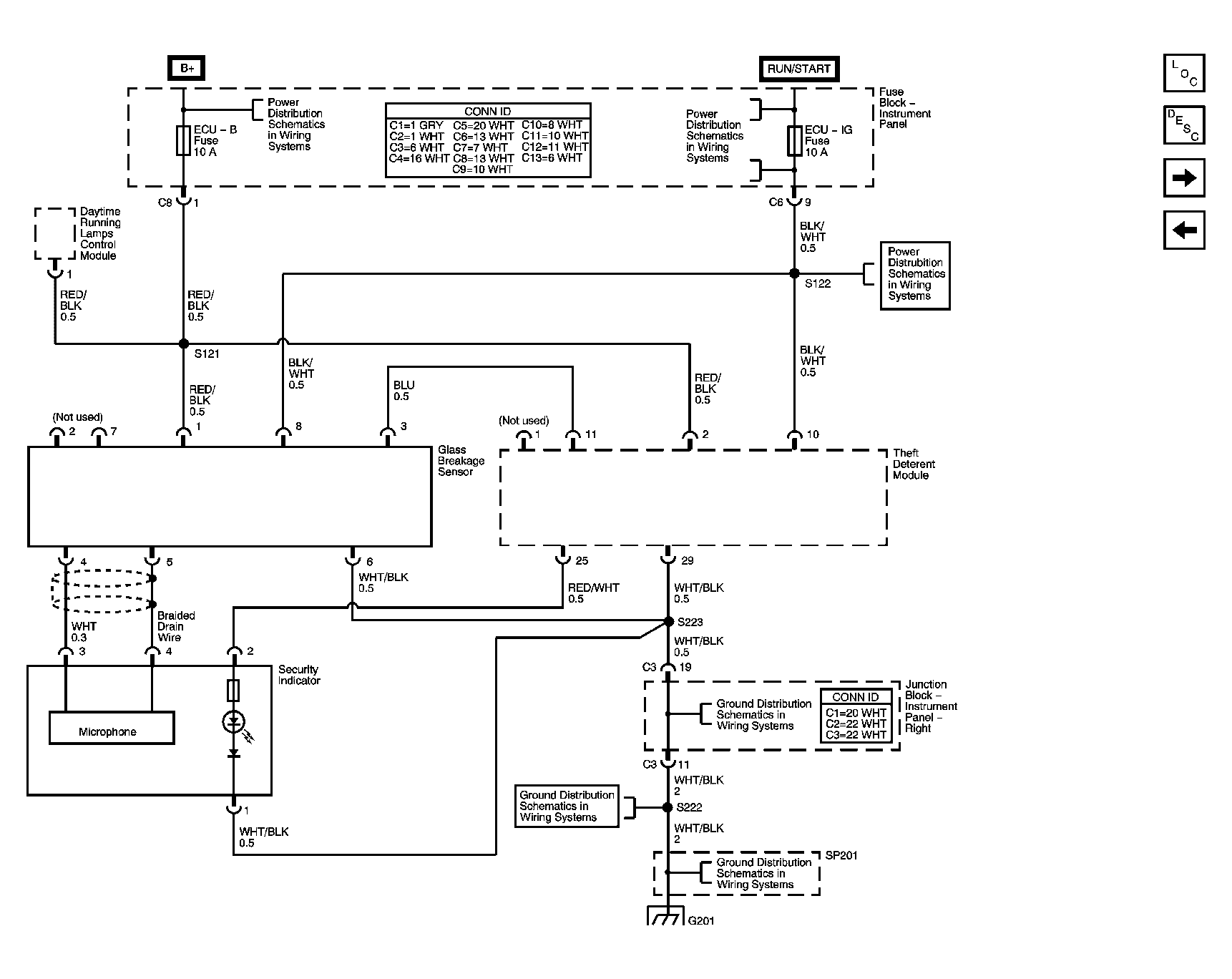

Fig 2: Theft Deterrent Module, Glass Breakage Sensor, Security Indicator Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Remote Control Door Lock Receiver, Multifunction Alarm Module Schematic

Courtesy of GENERAL MOTORS CORP.

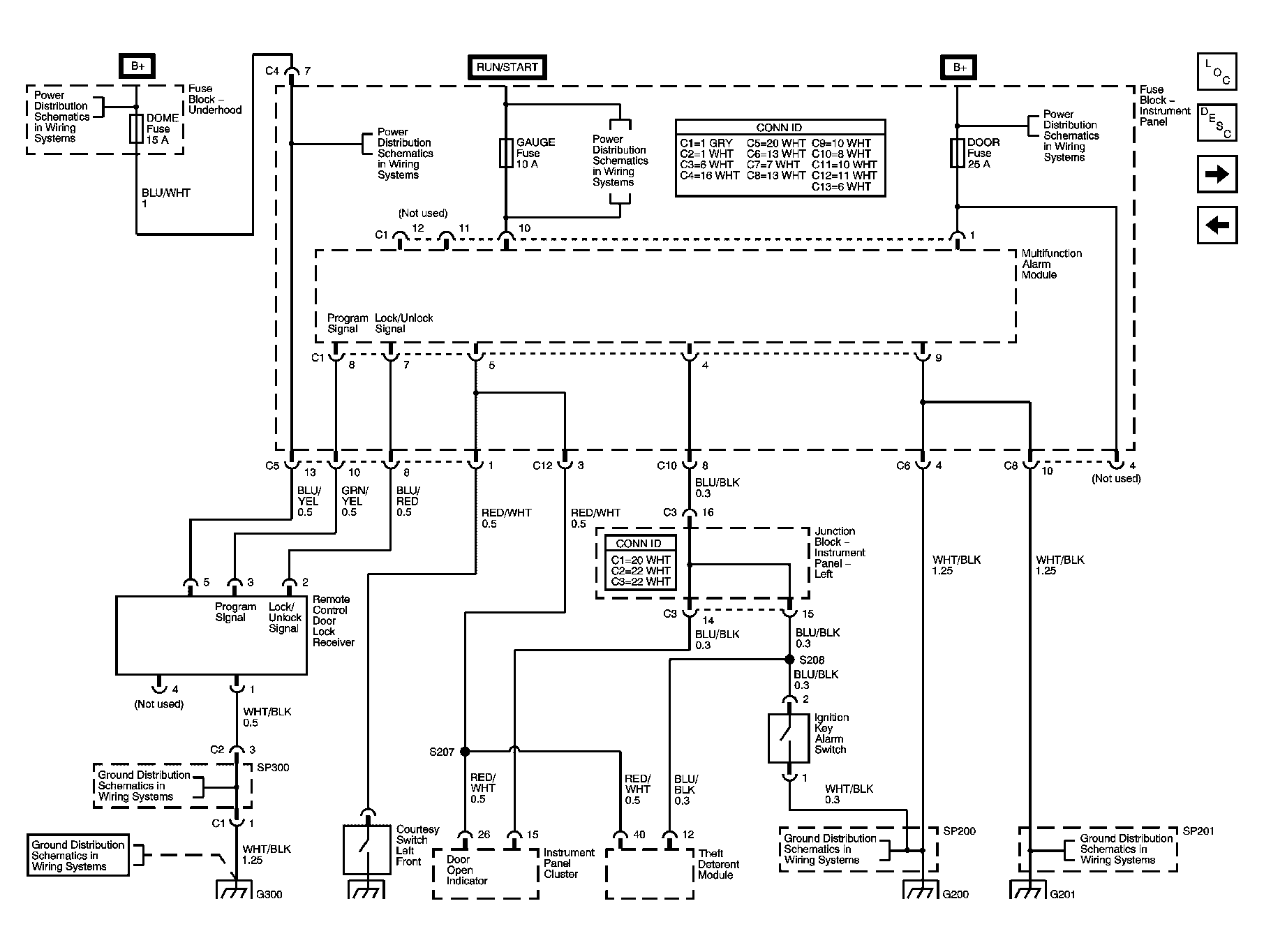

Fig 4: Multifunction Alarm Module, Rear Door Lock, Glass Hatch and Tailgate Actuators Schematic

Courtesy of GENERAL MOTORS CORP.

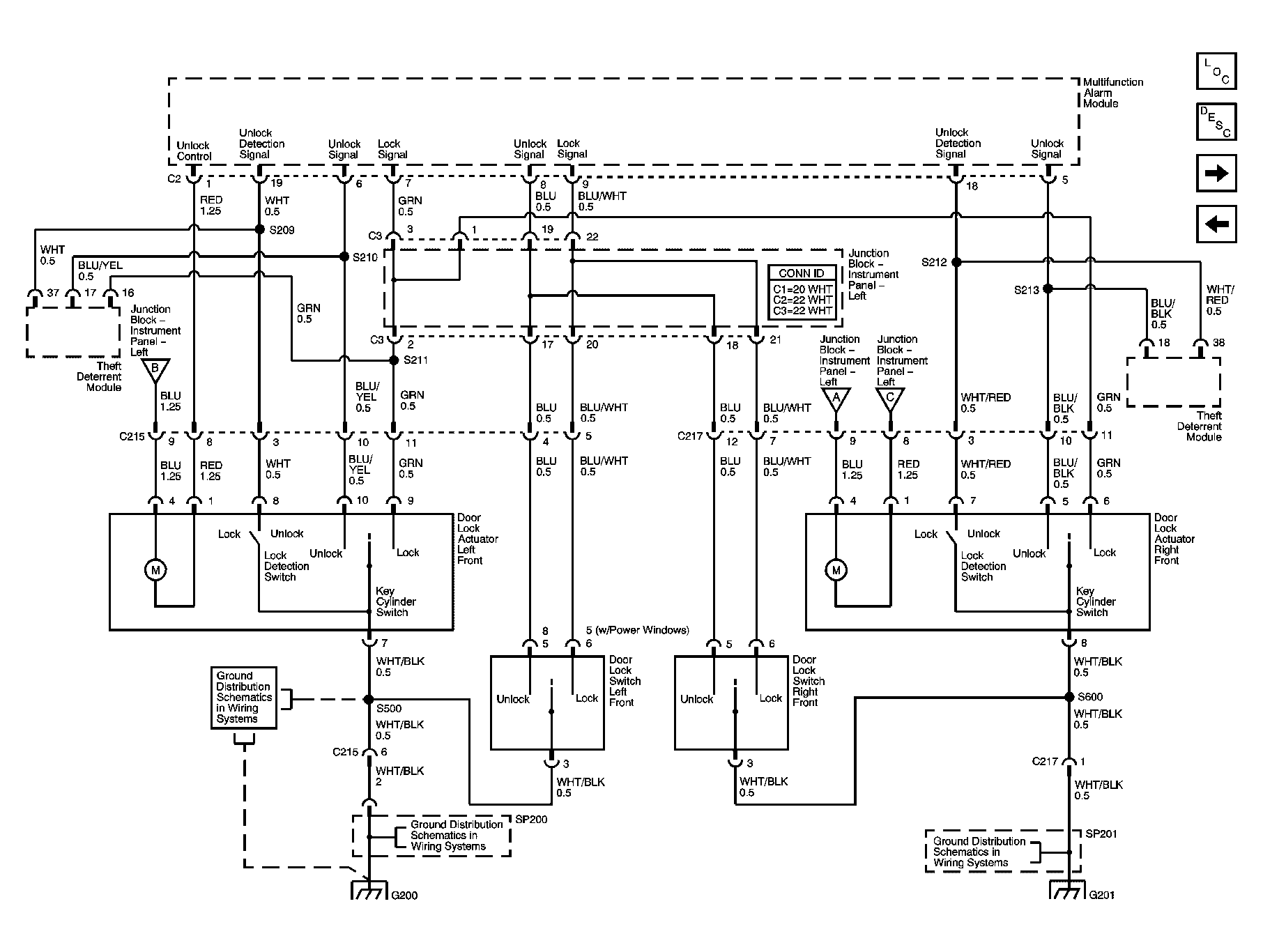

Fig 5: Door Lock Switches and Front Door Lock Actuators Schematic

Courtesy of GENERAL MOTORS CORP.

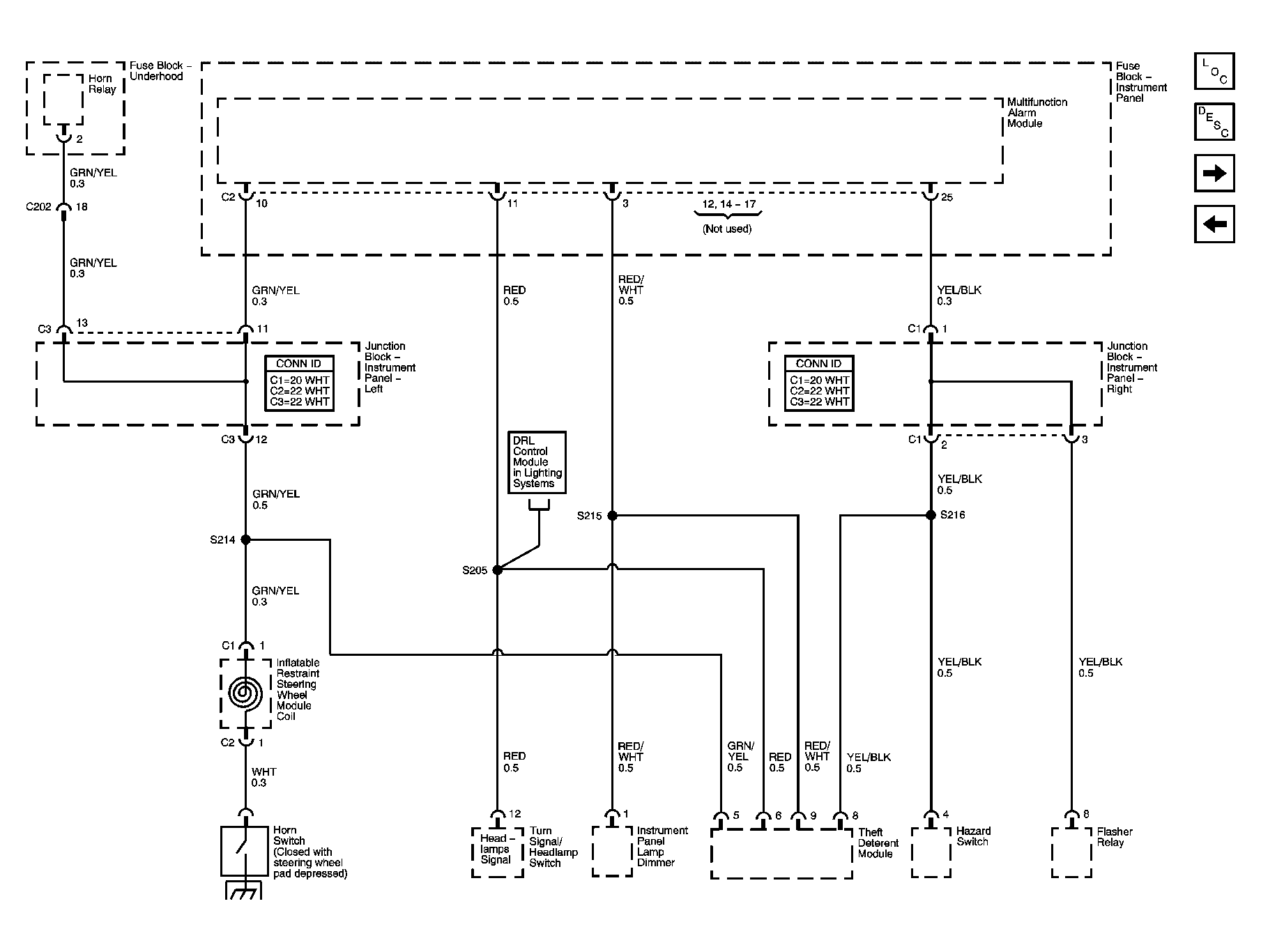

Fig 6: Multifunction Alarm Module, Horn, Hazard, Turn Signal/Headlamp Switches Schematic

Courtesy of GENERAL MOTORS CORP.

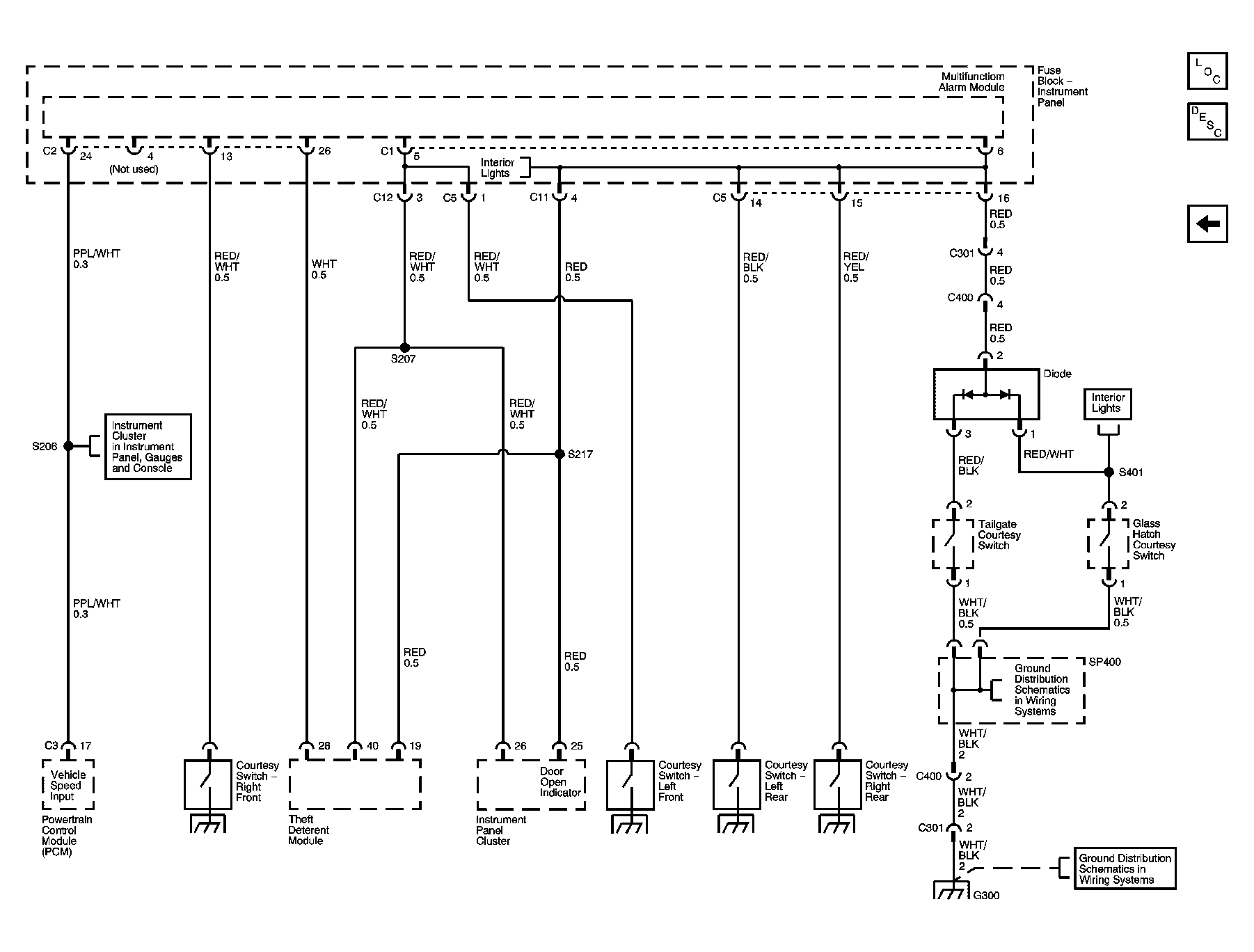

Fig 7: Multifunction Alarm Module, Door/Courtesy Switches Schematic

Courtesy of GENERAL MOTORS CORP.
