Removal & Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove applicable front door trim panel. Peel rear half of water deflector away from door. Remove screws securing SIS to door. Remove SIS.
To install, reverse removal procedure. Tighten SIS screws to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

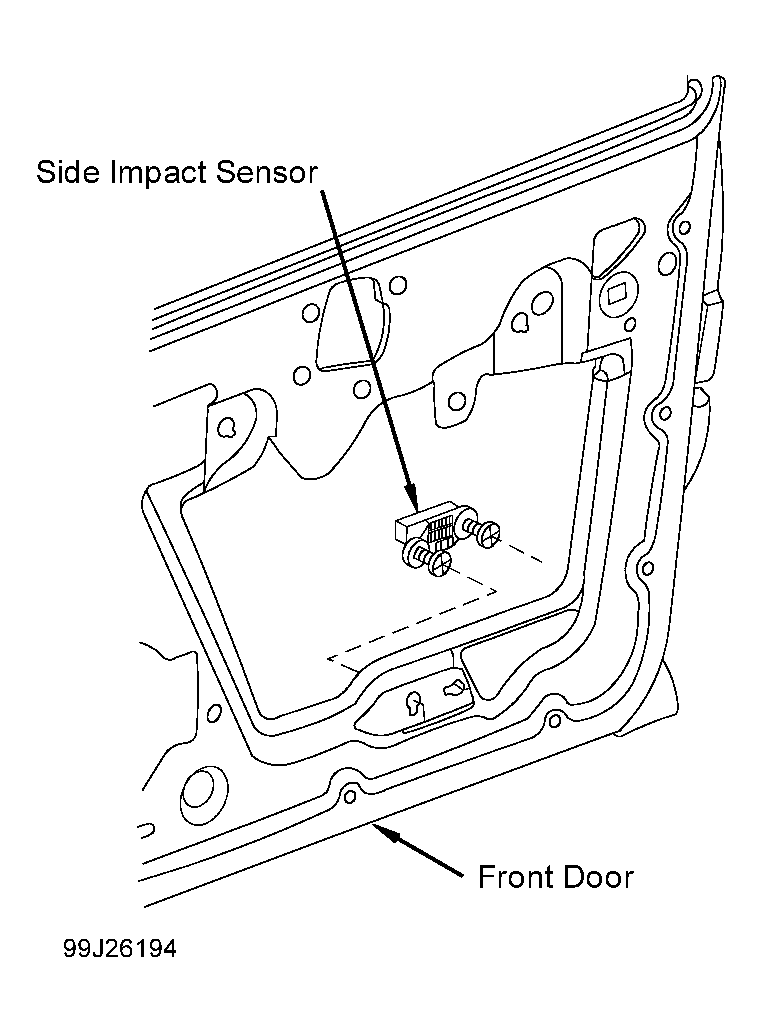

Fig 1: Identifying Side Impact Sensor (SIS)

Courtesy of GENERAL MOTORS CORP.
