Removal & Installation (Side Impact)

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove applicable front seat from vehicle. Remove seat trim panel. Remove seat back cover and pad. Remove seat back panel. Remove push pin securing top of seat belt retractor assembly to seat back frame. Remove screws securing side impact air bag module to seat back. Disconnect side impact air bag module wiring harness. Remove side impact air bag module from front seat.
  3. To install, reverse removal procedure. Tighten side impact air bag module screws to specification. See TORQUE SPECIFICATIONS . Activate air bag system.
Fig 1: Identifying Driver-side Air Bag Module
G99C26189Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Passenger-side Air Bag Module
G99F26190Courtesy of GENERAL MOTORS CORP.

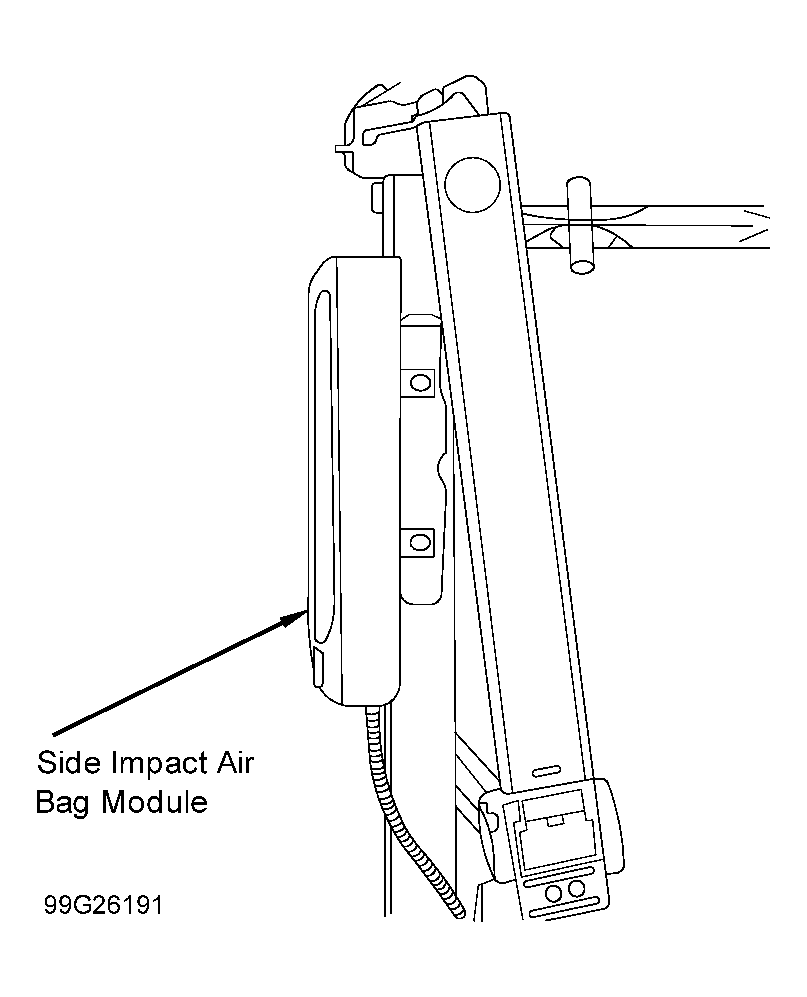

Fig 3: Identifying Side Impact Air Bag Module
G99G26191Courtesy of GENERAL MOTORS CORP.
