Cigar Lighter/Auxiliary Outlets Schematics

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

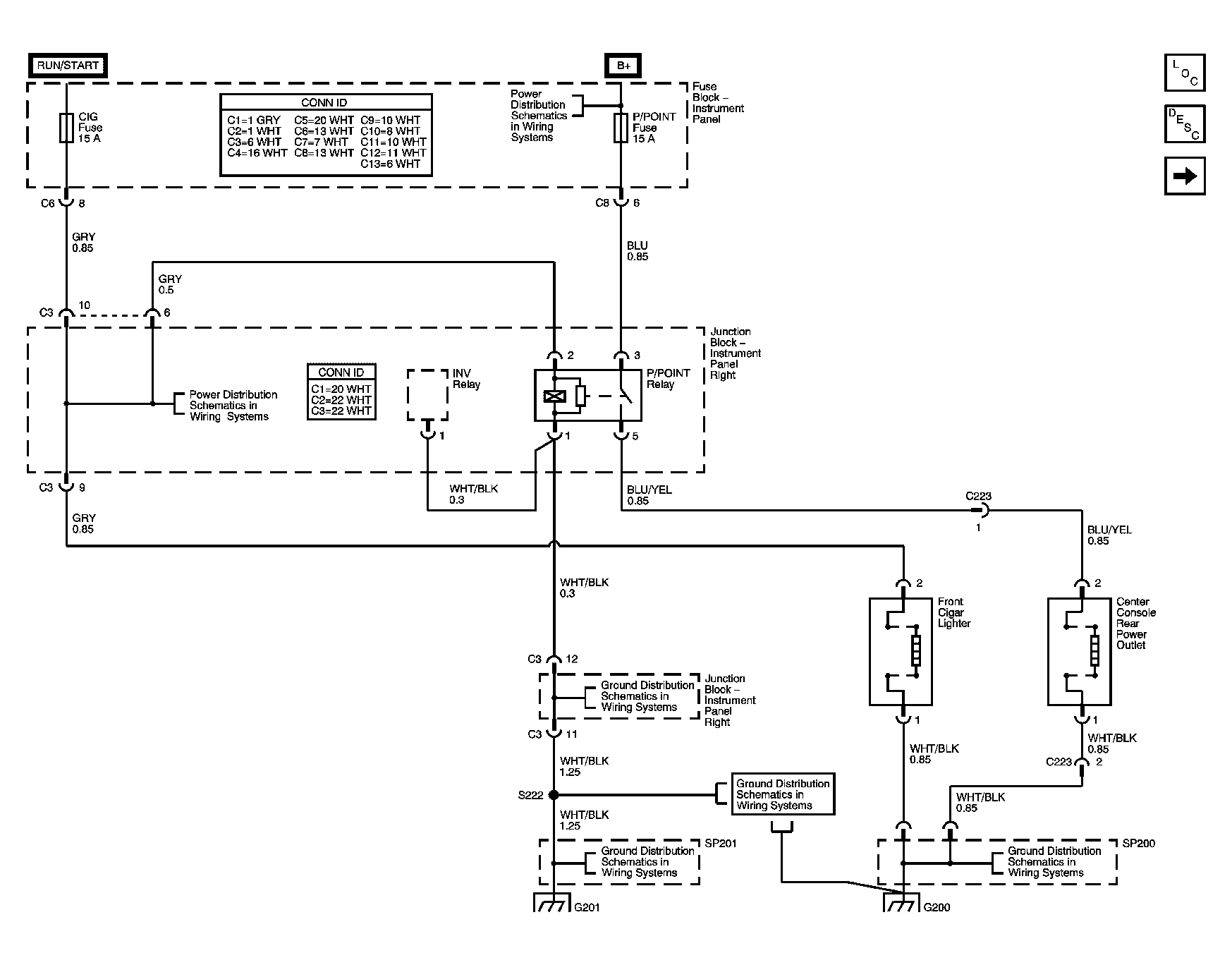

Fig 1: Cigar Lighter Schematic
GM785453Courtesy of GENERAL MOTORS CORP.

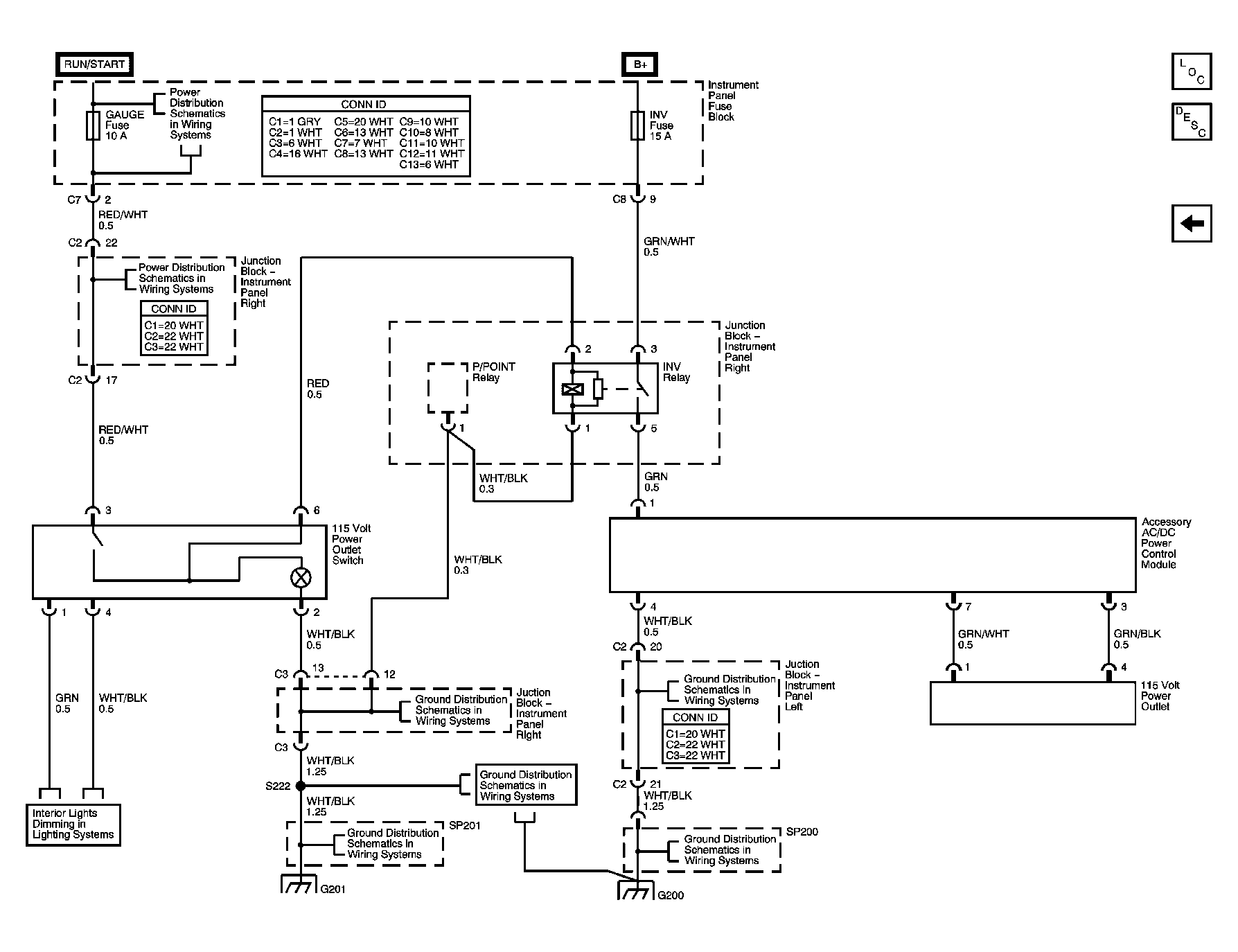

Fig 2: 115 Volt Power Outlet Schematic
GM787251Courtesy of GENERAL MOTORS CORP.
