Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Upper Harness Boot And Liftgate
    GM879504Courtesy of GENERAL MOTORS CORP.
  1. Route the upper wiring harness and boot (2) to the rear upper body (3).
  2. Pull down on left rear of headliner to route upper lift gate harness.
    3. Fig 2: Upper Liftgate Harness Retainers
    GM879696Courtesy of GENERAL MOTORS CORP.
  3. Install the upper lift gate harness (1) with retainers (2) to the left inner quarter panel.
    4. Fig 3: Upper Liftgate Harness Connectors
    GM879692Courtesy of GENERAL MOTORS CORP.
  4. Connect lift gate wiring harness connectors (2) to the rear body wiring harness (3).
    5. Fig 4: Upper Liftgate Harness Connectors
    GM879692Courtesy of GENERAL MOTORS CORP.
  5. Connect the upper lift gate harness connectors (1) to the rear body harness (2).
  6. Install the left upper quarter trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper in Interior Trim.
    7. Fig 5: Upper Harness Boot And Liftgate
    GM879504Courtesy of GENERAL MOTORS CORP.
  7. Route the upper lift gate harness through the upper lift gate (1) and install boot (2).

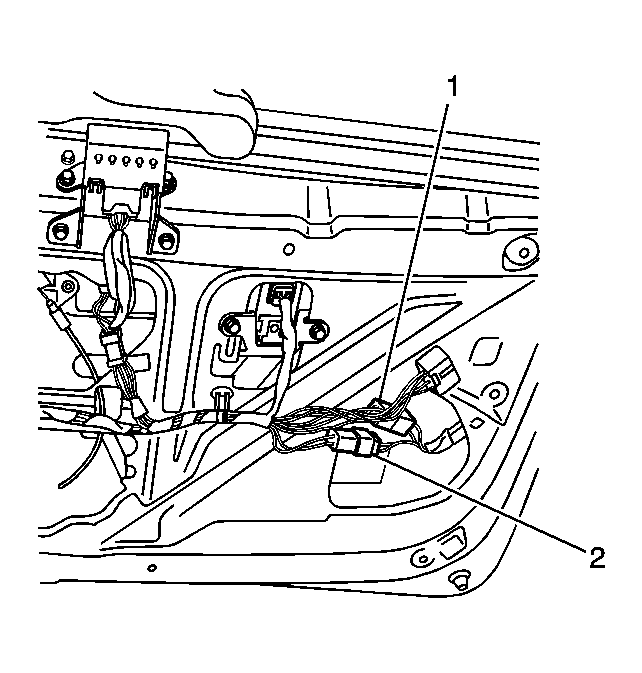

    8. Fig 6: Upper Harness Connectors
    GM879502Courtesy of GENERAL MOTORS CORP.
  8. Install the lower lift gate wire harness with retainers to the lift gate.
  9. Connect the lower lift gate harness electrical connectors to the upper lift gate harness (1), (2).
  10. Connect the rear wiper relay electrical connector.
  11. Connect the rear wiper motor electrical connectors.
  12. Connect the lift gate latch electrical connectors.
  13. Connect the license plate lamp electrical connectors.
  14. Install the high mounted stop lamp. Refer to High Mounted Stop Lamp Replacement in Lighting Systems.
  15. Install the lift gate trim panel. Refer to Trim Panel Replacement - Liftgate  in Body Rear End.
  16. Close the lift gate.
  17. Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
