Power Window Schematics

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

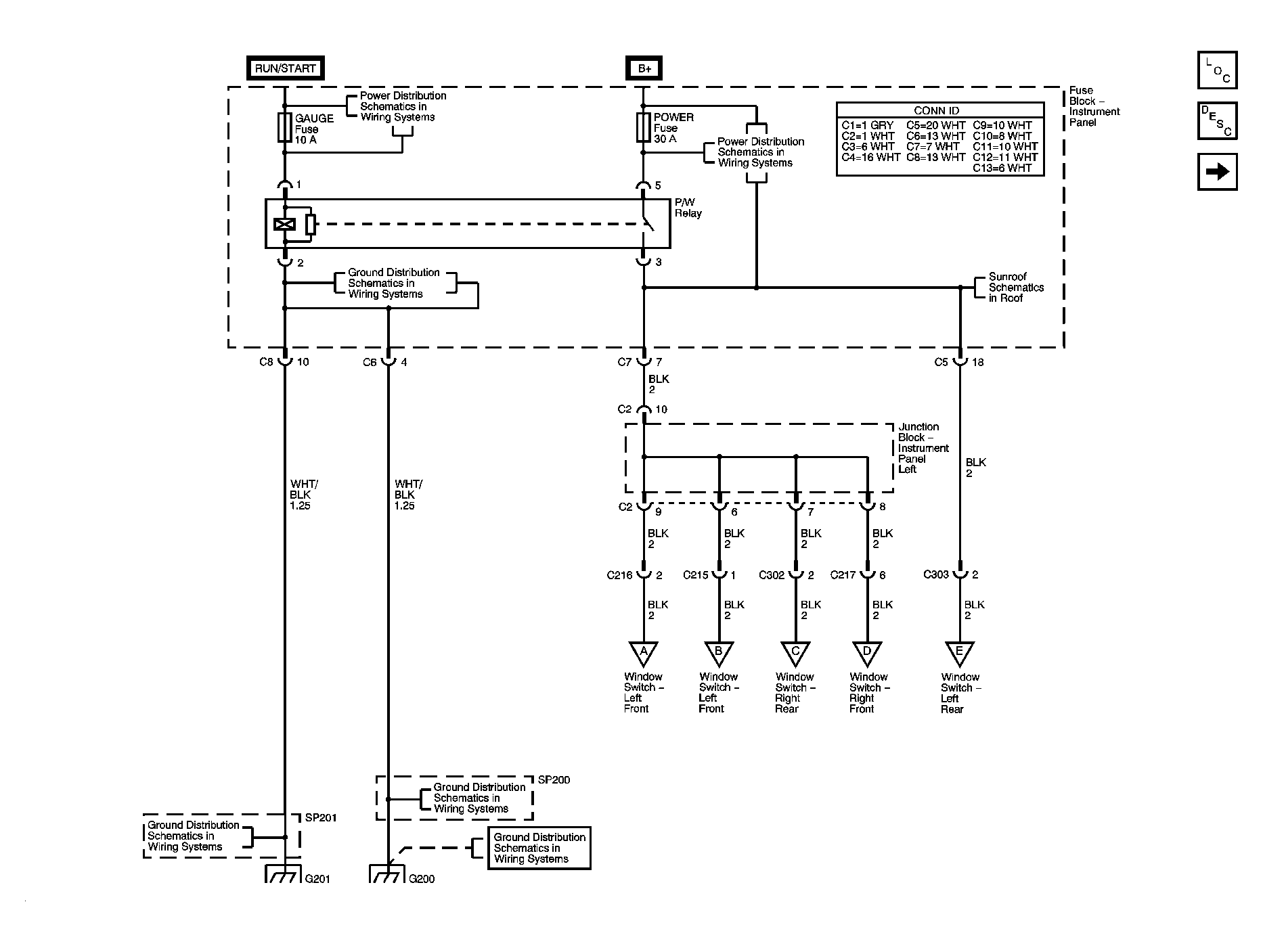

Fig 1: Power Windows Schematic (1 of 2)

Courtesy of GENERAL MOTORS CORP.

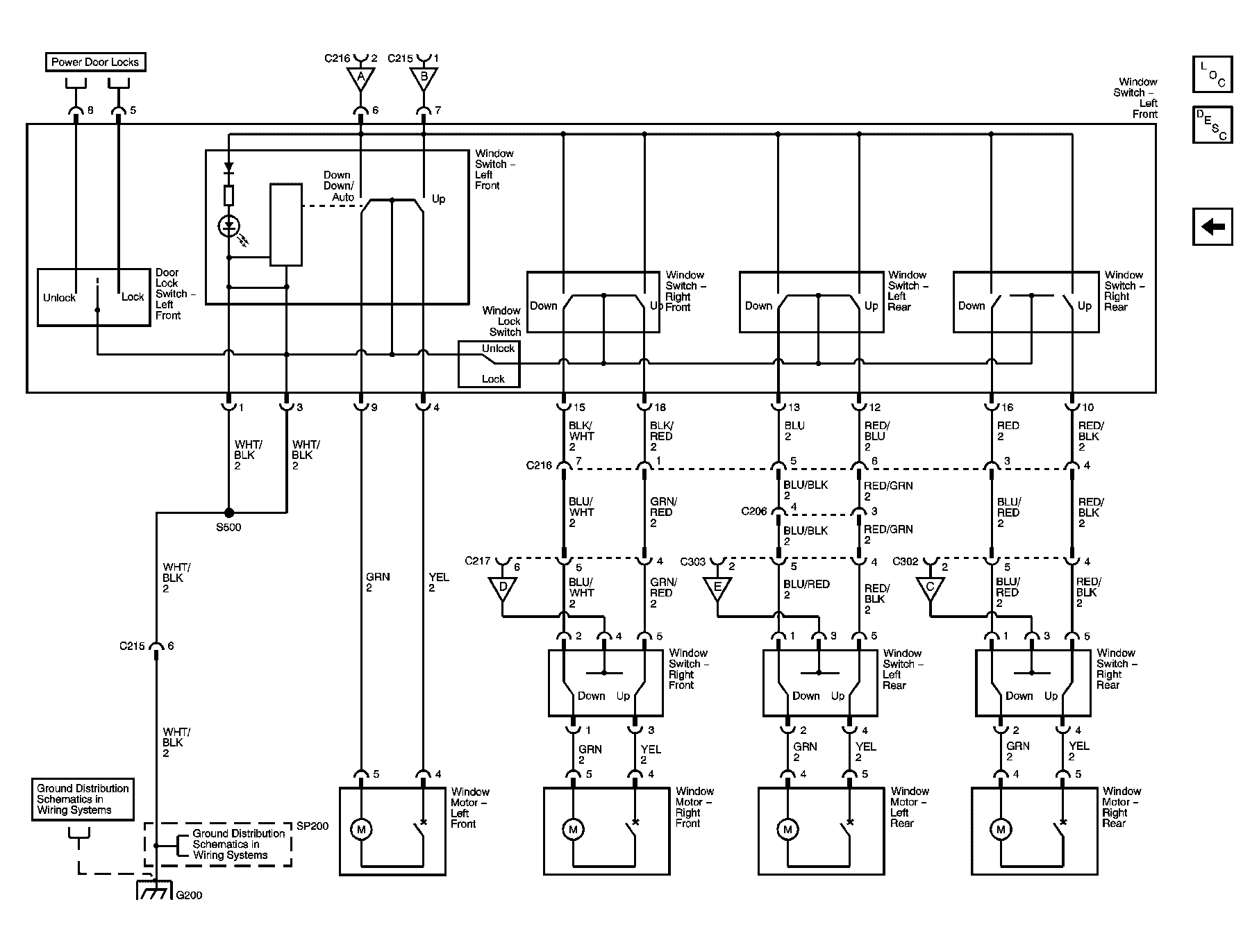

Fig 2: Power Windows Schematic (2 of 2)

Courtesy of GENERAL MOTORS CORP.
