Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

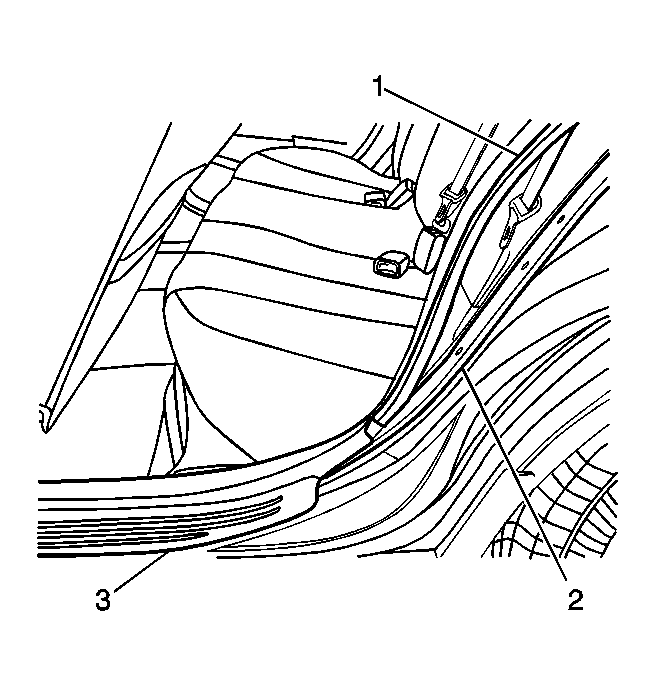

    Fig 1: Door Flange, Weather-Strip And Rear Sill Plate
    GM626923Courtesy of GENERAL MOTORS CORP.
  1. Remove the rear sill plate (3) from the vehicle.
  2. Pull the rear door opening weatherstrip (1) loose from the door opening flange (2).
  3. Remove the weatherstrip (1) from the vehicle.
