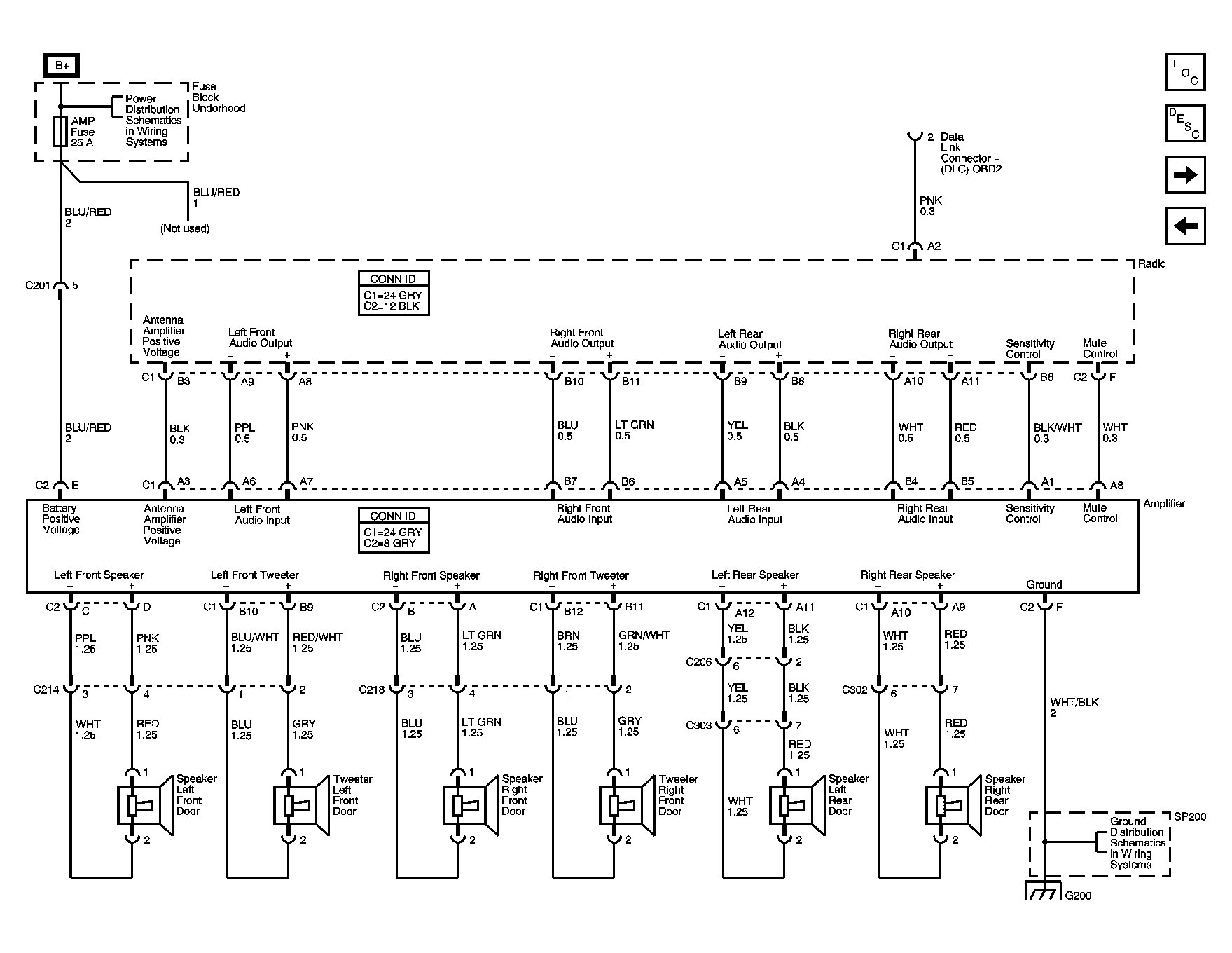

Fig 1: Radio Schematic- U1P and UC6
Courtesy of GENERAL MOTORS CORP.

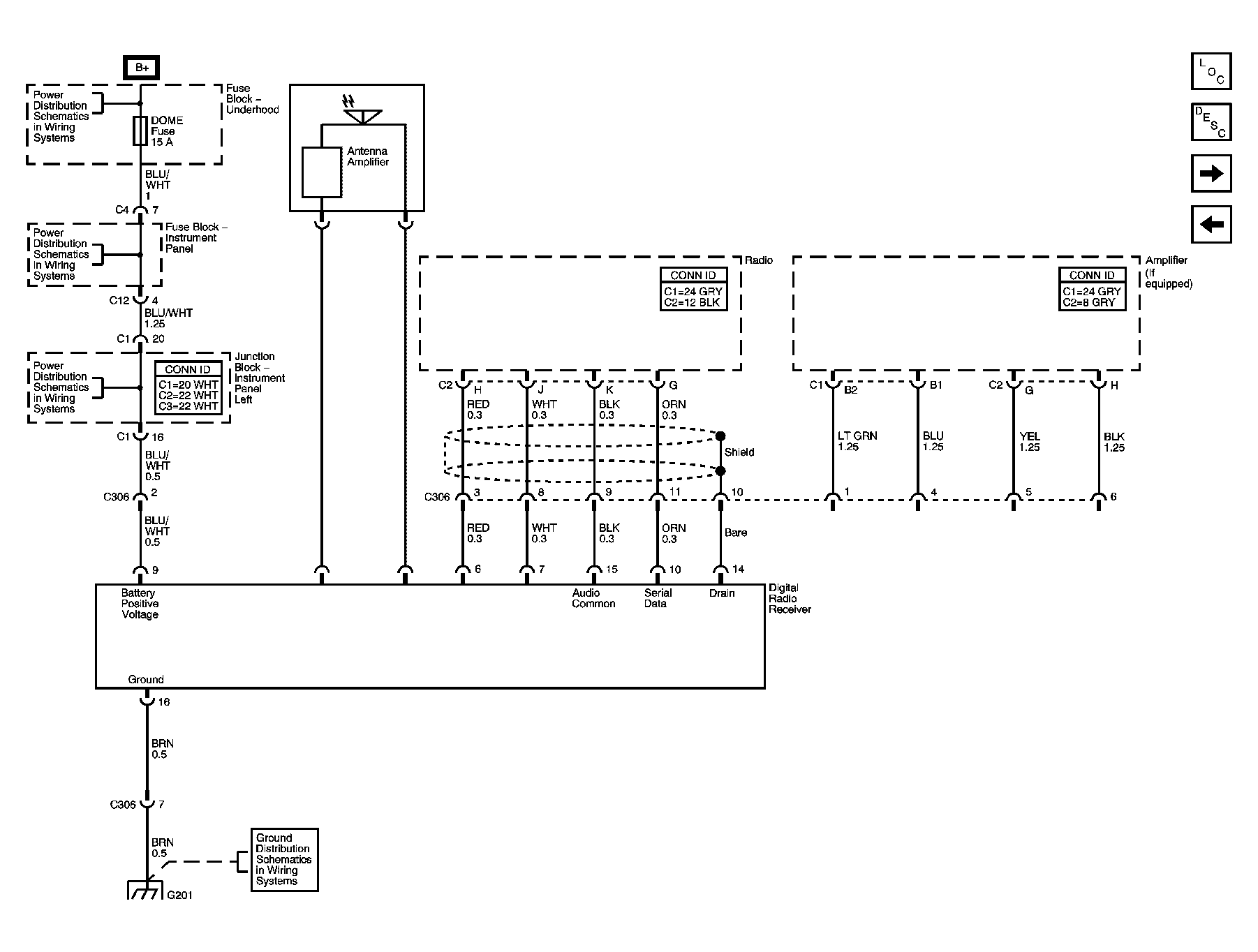

Fig 2: Radio Schematic (U1P and UC6 with UZ6 Amplifier)
Courtesy of GENERAL MOTORS CORP.

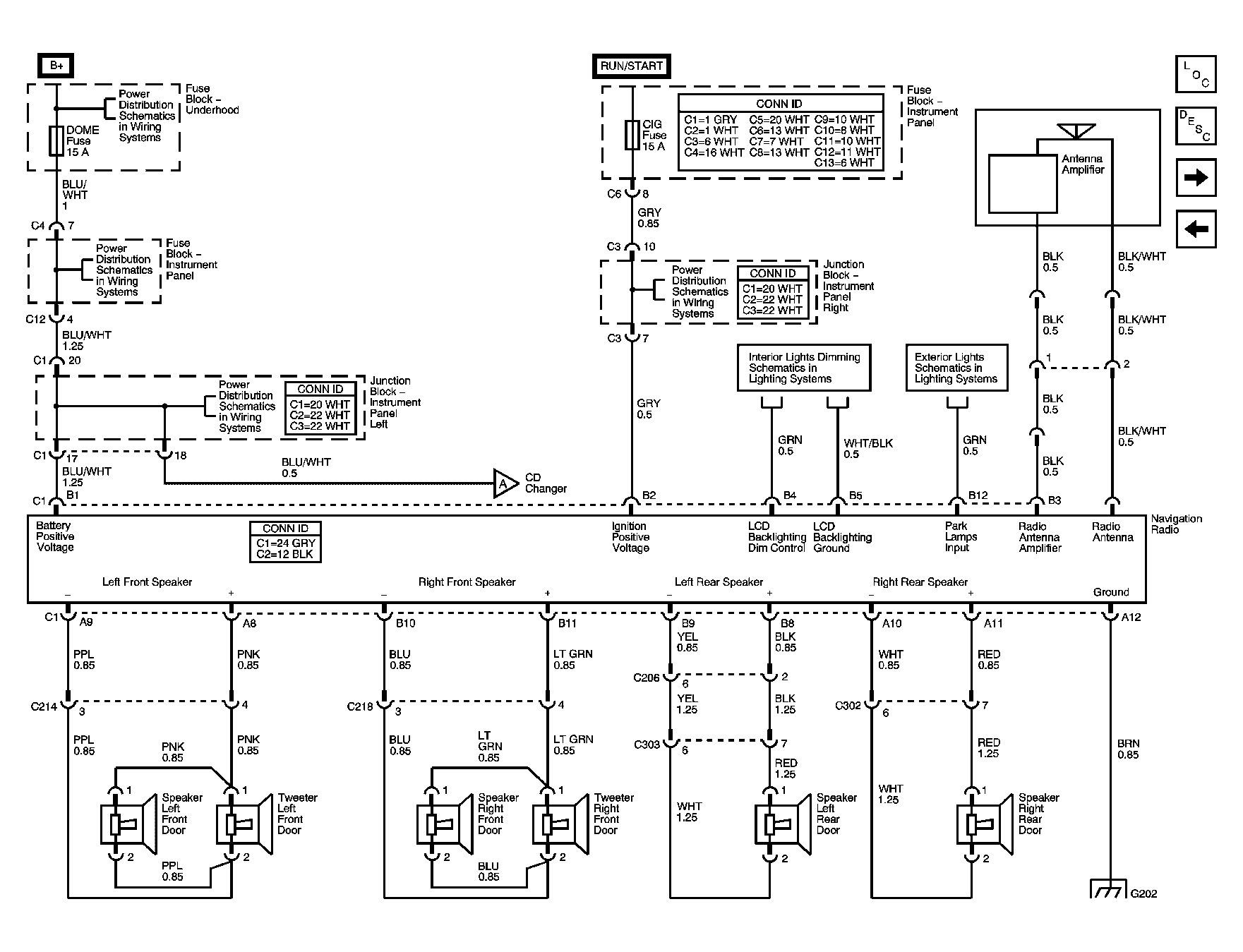

Fig 3: Digital Radio Receiver Schematic
Courtesy of GENERAL MOTORS CORP.

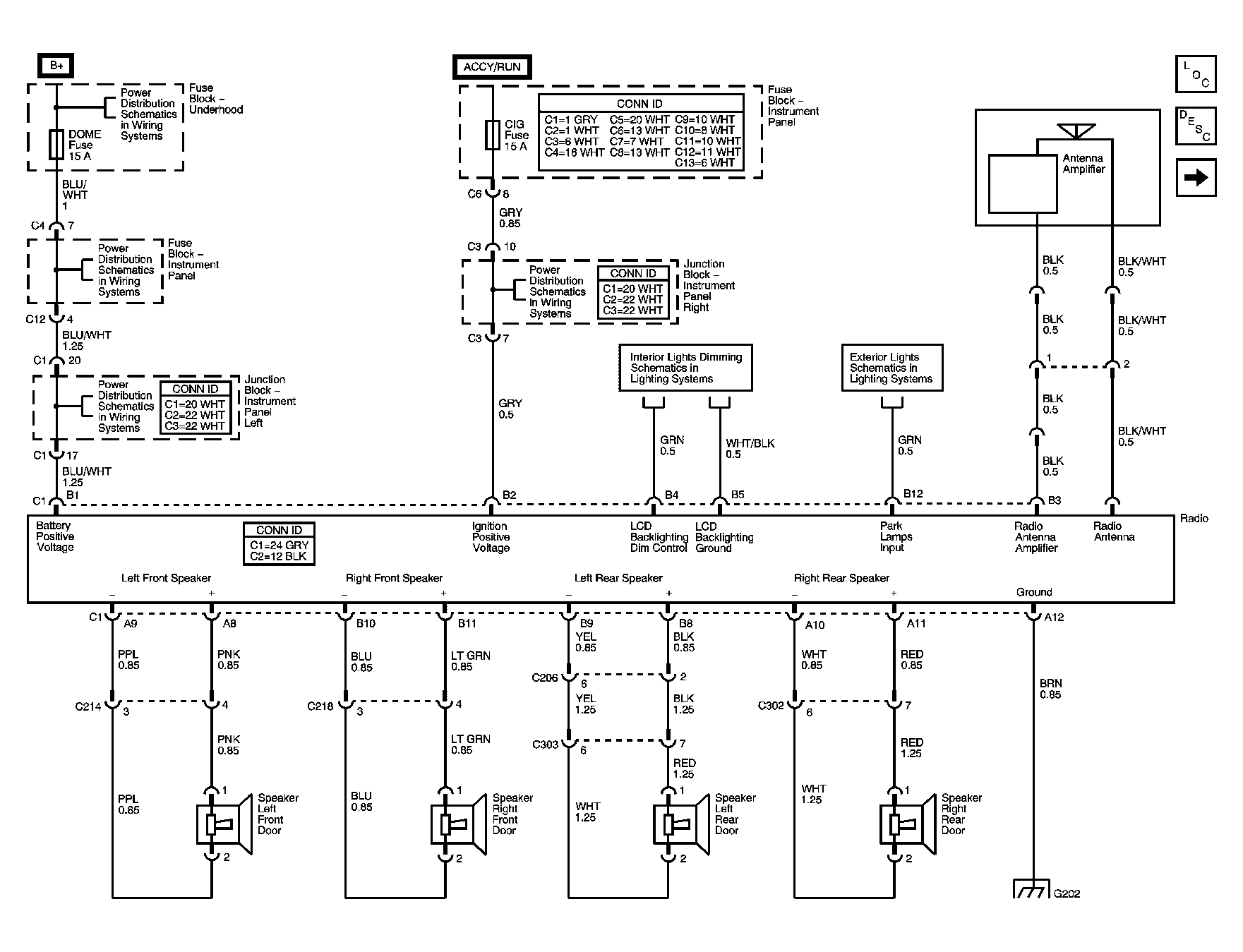

Fig 4: Navigation Radio Schematic - U1A
Courtesy of GENERAL MOTORS CORP.
Fig 5: Navigation Radio Schematic - U1A and Remote CD Changer
