Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: Do not swap digital radio receivers between vehicles. Swapping digital receivers between vehicles will activate the digital radio Theftlock, "XM Theftlock" will be displayed.
  1. Remove the rear quarter upper trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper in Interior Trim.

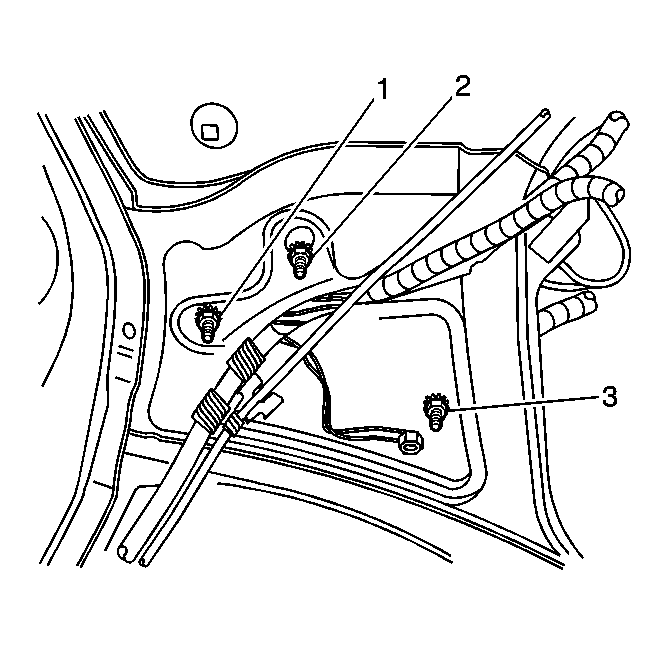

    2. Fig 1: Receiver And Nuts
    GM1318260Courtesy of GENERAL MOTORS CORP.
  2. Remove the 3 nuts (1, 2, 3) securing the receiver.
    3. Fig 2: Electrical Connectors
    GM1318262Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the 2 electrical connectors (1, 2).
    4. Fig 3: Receiver Nuts
    GM1318261Courtesy of GENERAL MOTORS CORP.
  4. Remove the XM receiver.
  5. Remove the 2 nuts (1, 2) securing the bracket to the receiver, remove the bracket if necessary.
