Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

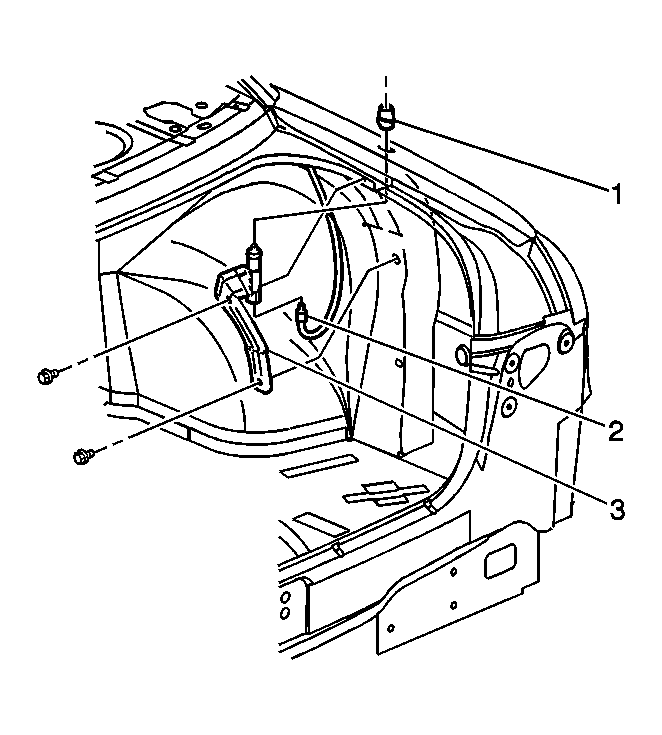

    Fig 1: Fixed Antenna Components
    GM278034Courtesy of GENERAL MOTORS CORP.
  1. Press the radio antenna bezel (1) into the quarter panel opening.
  2. Position the radio antenna bracket (3) to the inner quarter panel.
    3. NOTE: Refer toFastener Notice in Cautions and Notices.
  3. Install the radio antenna cable screws.

    Tighten:  Tighten the screws to 10 N.m (89 lb in).

  4. Connect the antenna cable (2) to the radio antenna bracket (3).
  5. Install the rear compartment trim panel.
  6. Install the radio antenna.
