Removal Procedure

WARNING: This page is about a different car, the 2004 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right rear quarter upper trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper in Interior Trim.
  2. Remove the right rear assist handle. Refer to Assist Handle Replacement in Interior Trim.
  3. Remove the rear dome lamp. Refer to Dome Lamp Replacement in Lighting Systems.
  4. Disengage the rear headliner retainers.
    5. Fig 1: Antenna Cable Connector
    GM1318275Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the antenna cable connector from the XM antenna cable.
    6. Fig 2: Coaxial Cable Connector
    GM1318285Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the coaxial cable connector from the XM receiver.

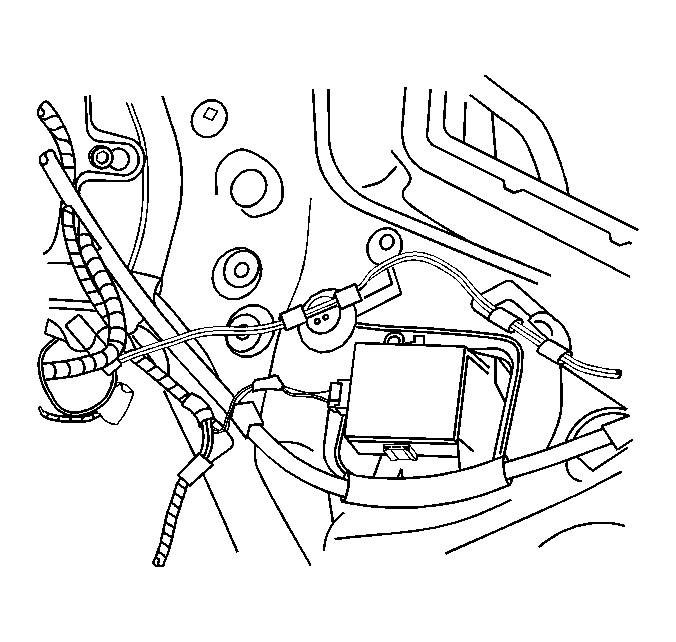

    7. Fig 3: Vehicle Retainers
    GM1318273Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the 3 retainers from the vehicle.
